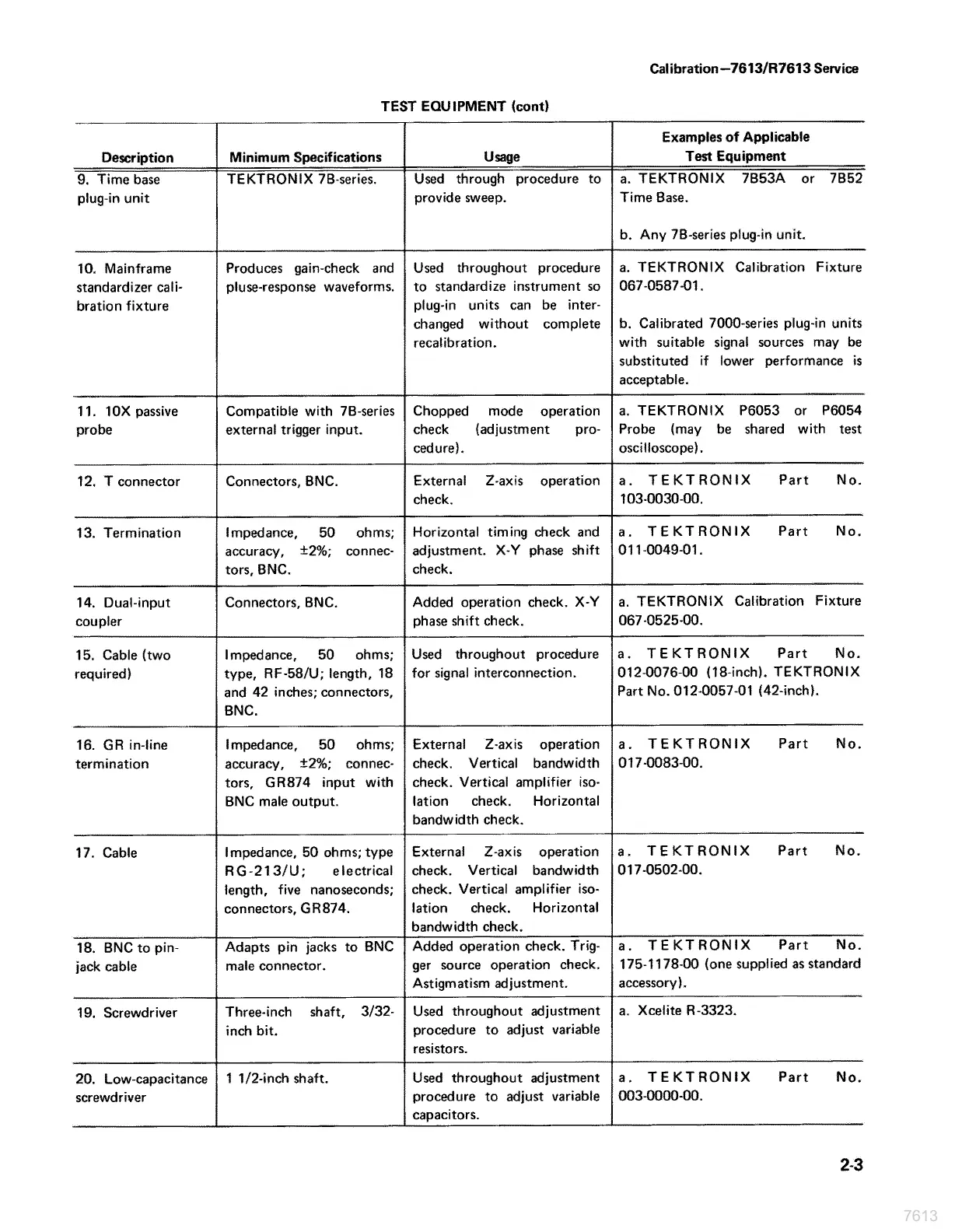

TEST EQUIPMENT (cont)
Calibration—-7613/R7613 Service
Examples of Applicable
Description Minimum Specifications Usage Test Equipment
9. Time base TEKTRONIX 7B-series. Used through procedure to | a. TEKTRONIX 7B53A or 7B52
plug-in unit provide sweep. Time Base.
b. Any 7B-series plug-in unit.
10. Mainframe
standardizer cali-
bration fixture
Produces gain-check and
pluse-response waveforms.
Used throughout procedure
to standardize instrument so
plug-in units can be inter-
changed without complete
recalibration.
a. TEKTRONIX Calibration Fixture
067-0587-01.
b, Calibrated 7000-series plug-in units
with suitable signal sources may be
substituted if lower perforrnance is
acceptable.
11. 10X passive Compatible with 7B-series | Chopped mode operation | a. TEKTRONIX P6053 or P6054
probe external trigger input. check (adjustment pro- | Probe (may be shared with test
cedure). oscilloscope).
12. T connector Connectors, BNC. External Z-axis operation ja. TEKTRONIX Part No.
check. 103-0030-00.
13. Termination impedance, 50 ohms; | Horizontal timing check and |}a. TEKTRONIX Part No.
accuracy, +2%; connec- | adjustment. X-Y phase shift | 011-0049-01.
tors, BNC. check,
14, Dual-input Connectors, BNC. Added operation check. X-Y | a. TEKTRONIX Calibration Fixture
coupler phase shift check. 067-0525-00.
15. Cable (two Impedance, 50 ohms; | Used throughout procedure ja. TEKTRONIX Part No.
required) type, RF-58/U; length, 18 | for signal interconnection. 012-0076-00 (18-inch). TEKTRONIX
and 42 inches; connectors, Part No. 012-0057-01 (42-inch).
BNC.
16. GR in-line Impedance, 50 ohms; | External Z-axis operation |a. TEKTRONIX Part No.
termination accuracy, +2%; connec- | check. Vertical bandwidth | 017-0083-00.
tors, GR874 input with | check. Vertical amplifier iso-
BNC male output. lation check. Horizontal
bandwidth check.
17. Cable Impedance, 50 ohms; type | External Z-axis operation ja. TEKTRONIX Part No.
RG-213/U: electrical | check. Vertical bandwidth | 017-0502-00.
length, five nanoseconds; ; check. Vertical amplifier iso-
connectors, GR874. lation check. Horizontal
bandwidth check.
Adapts pin jacks to BNC | Added operation check. Trig) |a. TEKTRONIX Part No.
18. BNC to pin-
jack cable
male connector.
ger source operation check.
Astigmatism adjustment.
175-1178-00 (one supplied as standard
accessory).
19. Screwdriver
Three-inch shaft,
inch bit.
3/32-
Used throughout adjustment
procedure to adjust variable
resistors.
a. Xcelite R-3323.
20. Low-capacitance
screwdriver
1 1/2-inch shaft.
Used throughout adjustment
procedure to adjust variable
capacitors.
a, TEKTRONIX Part No.
003-0000-00.
