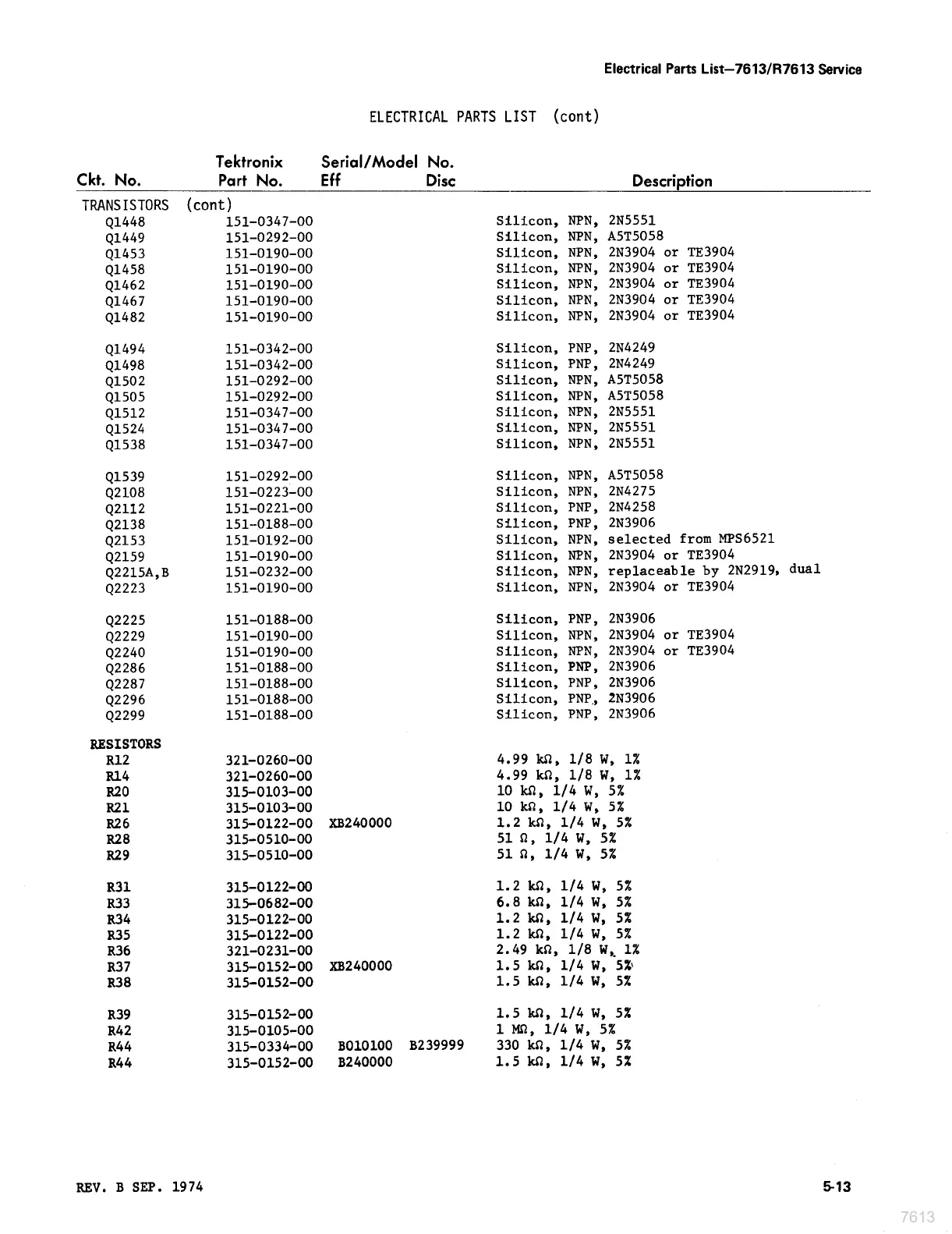

Electrical Parts List—7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Dise Description
TRANSISTORS (cont)
Q1448 151-0347-00 Silicon, NPN, 2N5551
Q1449 151-0292-00 Silicon, NPN, A5T5058
Q1453 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q1458 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q1462 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q1467 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q1482 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q1494 151-0342-00 Silicon, PNP, 2N4249
Q1498 151-0342-00 Silicon, PNP, 2N4249
Q1502 151-0292-00 Silicon, NPN, A5T5058
Q1505 151-0292-00 Silicon, NPN, A5T5058
Q1512 151-0347-00 Silicon, NPN, 2N5551
Q1524 151-0347-00 Silicon, NPN, 2N5551
Q1538 151-0347-00 Silicon, NPN, 2N5551
Q1539 151-0292-00 Silicon, NPN, A5T5058
Q2108 151-0223-00 Silicon, NPN, 2N4275
Q2112 151-0221-00 Silicon, PNP, 2N4258
Q2138 151-0188-00 Silicon, PNP, 2N3906
Q2153 151-0192-00 Silicon, NPN, selected from MPS6521
Q2159 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q2215A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q2223 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q2225 151-0188-00 Silicon, PNP, 2N3906
Q2229 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q2240 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q2286 151-0188-00 Silicon, PNP, 2N3906
Q2287 151-0188-00 Silicon, PNP, 2N3906
Q2296 151-0188-00 Silicon, PNP, 2N3906
Q2299 151-0188-00 Silicon, PNP, 2N3906
RESISTORS
R12 321-0260-00 4.99 kQ, 1/8 W, 1%
R14 321-0260--00 4.99 kQ, 1/8 W, 1%
R20 315-0103-00 10 kN, 1/4 W, 5%
R21 315-0103-00 10 k2, 1/4 W, 5%
R26 315-0122-00 XB240000 1.2 kQ, 1/4 W, 5%
R28 315-0510-00 512, 1/4 W, 5%
R29 315-0510-00 512, 1/4 W, 5%
R31 315-0122-00 1.2 kQ, 1/4 W, 5%
R33 315-0682-00 6.8 k2, 1/4 W, 52%
R34 315-0122-00 1.2 kn, 1/4 W, 5%
R35 315-0122-00 1.2 kQ, 1/4 W, 5%
R36 321-0231-00 2.49 kQ, 1/8 W, 1%
R37 315-0152-00 XB240000 1.5 kQ, 1/4 W, 5%
R38 315-0152-00 1.5 kQ, 1/4 W, 5%
R39 315-0152-00 1.5 kQ, 1/4 W, 52%
R42 315-0105-00 1 MQ, 1/4 W, 5%
R44 315-0334-00 BO10100 8239999 330 kQ, 1/4 W, 5%
R44 315-0152-00 B240000 1.5 kQ, 1/4 W, 5%
REV. B SEP. 1974
5-13
