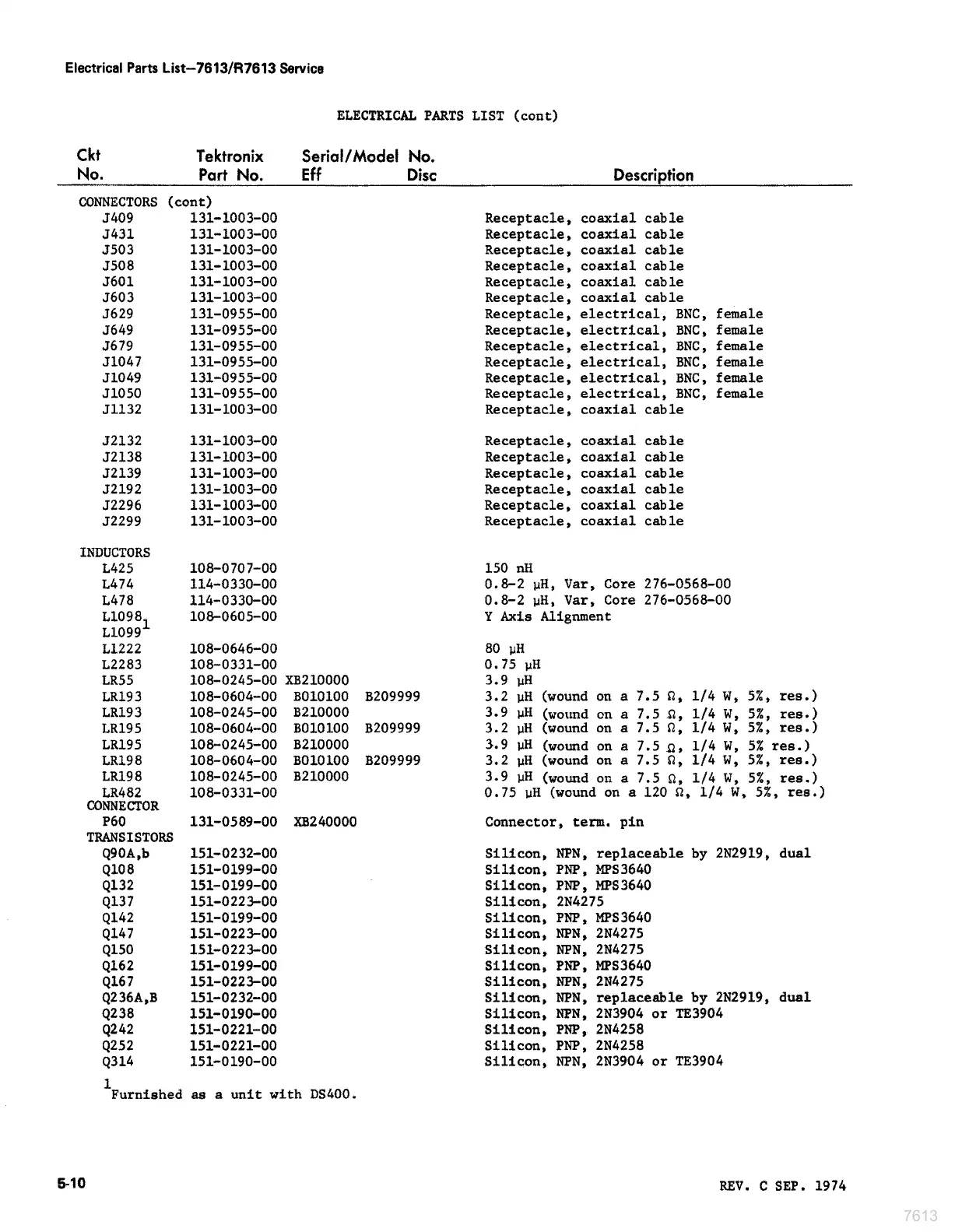

Electrical Parts List—7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Ckt Tektronix Serial/Model No.
No. Part No. Eff Dise Description
CONNECTORS (cont)
J409 131-1003-00 Receptacle, coaxial cable
J431 131-1003-00 Receptacle, coaxial cable
J503 131-1003-00 Receptacle, coaxial cable
J508 131-1003-00 Receptacle, coaxial cable
J601 131-1003-00 Receptacle, coaxial cable
J603 131-1003-00 Receptacle, coaxial cable
J629 131-0955-00 Receptacle, electrical, BNC, female
J649 131~-0955-00 Receptacle, electrical, BNC, female
J679 131-0955-00 Receptacle, electrical, BNC, female
J1047 131-0955-00 Receptacle, electrical, BNC, female
J1049 131-0955-60 Receptacle, electrical, BNC, female
J1050 131-0955-00 Receptacle, electrical, BNC, female
J1132 131-1003-00 Receptacle, coaxial cable
32132 131~1003-00 Receptacle, coaxial cable
J2138 131-1003-00 Receptacle, coaxial cable
J2139 131-1003-00 Receptacle, coaxial cable
J2192 131-1003-00 Receptacle, coaxial cable
32296 131-1003-00 Receptacle, coaxial cable
J2299 131~1003-00 Receptacle, coaxial cable
INDUCTORS
L425 108-0707-00 150 nH
L474 114-0330-00 0.8-2 pH, Var, Core 276-0568-00
L478 114-0330-00 0.8-2 wH, Var, Core 276-0568-00
£1098, 108-0605-00 Y Axis Alignment
11099
L1222 108~-0646-00 80 pH
12283 108~-0331-00 0.75 pH
LR55 108-0245-00 XB210000 3.9 pH
LR193 108-0604-00 8010100 B209999 3.2 pH (wound on a 7.5 2, 1/4 W, 5%, res.)
LR193 108-0245-00 B210000 3.9 wH (wound on a 7.5 2, 1/4 W, 5%, res.)
LR195 108-0604-00 B010100 B209999 3.2 wH (wound on a 7.5 2, 1/4 W, 5%, res.)
LR195 108~0245-00 B210000 3.9 wH (wound on a 7.5 9, 1/4 W, 5% res.)
LR1i98 108~-0604-00 BO10100 8209999 3.2 pH (wound on a 7.5 2, 1/4 W, 54, res.)
LR198 108-0245-00 B210000 3.9 WH (wound on a 7.5 Q, 1/4 W, 5%, res.)
LR482 108-0331-00 0.75 uwH (wound on a 120 2, 1/4 W, 5%, res.)
CONNECTOR
P60 131-0589-00 XB240000 Connector, term. pin
TRANSISTORS
Q90A,b 151~0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q108 151-0199-00 Silicon, PNP, MPS3640
Q132 151-0199-00 Silicon, PNP, MPS3640
Q137 151-0223-00 Silicon, 2N4275
Q142 151-0199-00 Silicon, PNP, MPS3640
Q147 151-0223-00 Silicon, NPN, 2N4275
Qi50 151-0223-00 Silicon, NPN, 2N4275
Q162 151-0199-00 Silicon, PNP, MPS3640
Q167 151-0223-00 Silicon, NPN, 2N4275
Q236A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q238 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q242 151-0221-00 Silicon, PNP, 2N4258
Q252 151~0221-00 Silicon, PNP, 2N4258
Q314 151-0190-00 Silicon, NPN, 2N3904 or TE3904
5-10
1
Furnished as a unit with DS400.
REV. C SEP. 1974
7613
