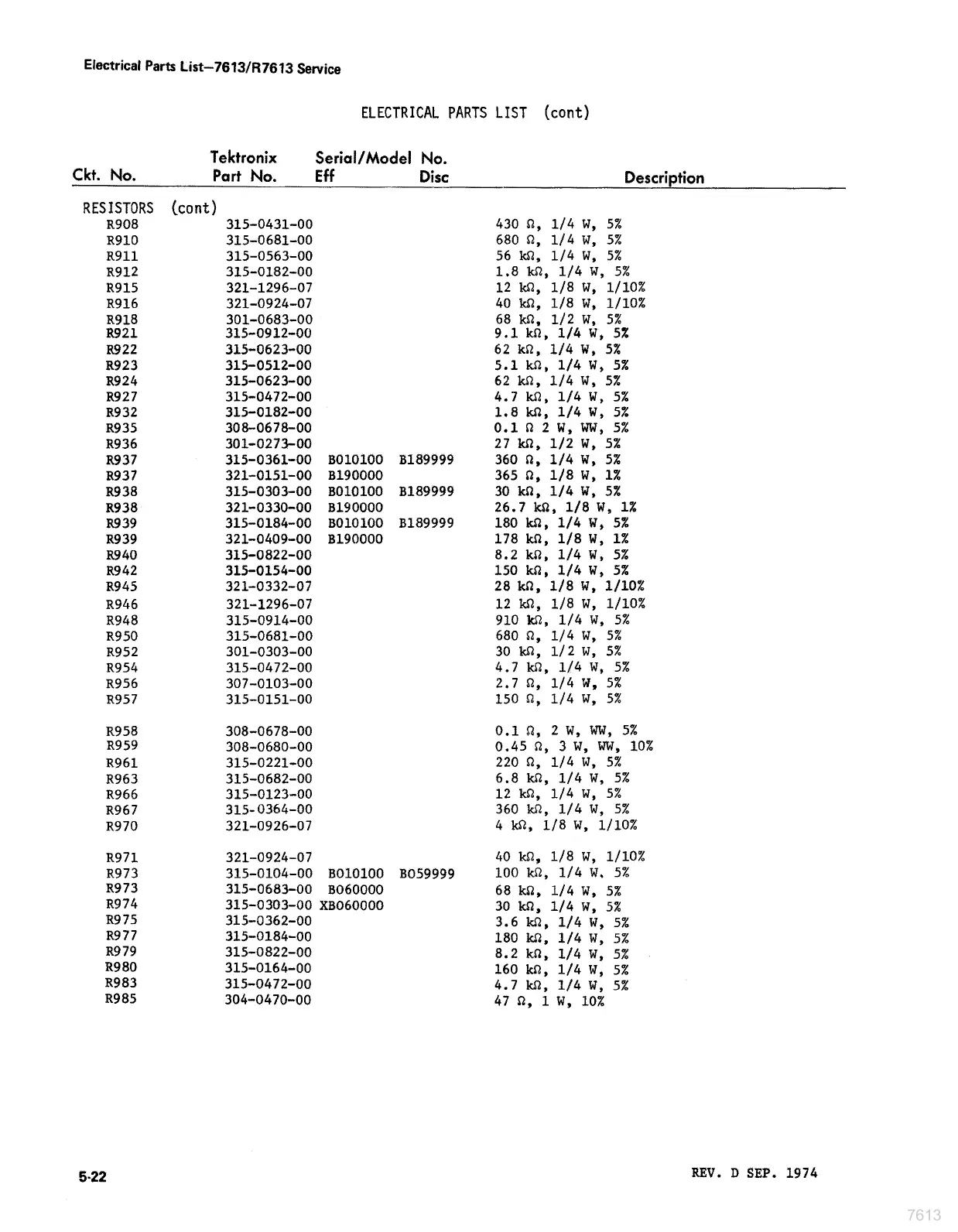

ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt.
No.
Part
No.
Eff
Disc
Description
RESISTORS (cont)
R908 315-0431~00 430 2, 1/4 W, 5%
R910 315-0681-00 680 2, 1/4 W, 5%
R911 315-0563-00 56 kn, 1/4 W, 5%
R912 315-0182-00 1.8 kQ, 1/4 W, 52%
R915 321~1296-07 12 kQ, 1/8 W, 1/10%
R916 321-0924-07 40 kQ, 1/8 W, 1/102
R918 301-0683~-00 68 kQ, 1/2 W, 5%
R921 315~0912-00 9.1 kh, 1/4 W, 5%
R922 315~-0623-00 62 k2, 1/4 W, 5%
R923 315~0512-00 5.1 kM, 1/4 W, 5%
R924 315-0623-00 62 kQ, 1/4 W, 5%
R927 315-0472-00 4.7 kQ, 1/4 W, 5%
R932 315~0182-00 1.8 kQ, 1/4 W, 5%
R935 308-0678~00 0.1 22 W, WW, 52%
R936 301~0273-00 27 kQ, 1/2 W, 5%
R937 315~0361-00 BO10100 86189999 360 2, 1/4 W, 52%
R937 321-0151-00 B190000 365 2, 1/8 W, 12%
R938 315~0303-00 8010100 8189999 30 k&, 1/4 W, 5%
R938 321-0330-00 B190000 26.7 kQ, 1/8 W, 1%
R939 315~-0184-00 BO10100 8189999 180 kQ, 1/4 W, 5%
R939 321~0409-00 B190000 178 kQ, 1/8 W, 1%
R940 315-0822-00 8.2 kQ, 1/4 W, 5%
R942 315-0154-00 150 k2, 1/4 W, 5%
R945 321-0332-07 28 kQ, 1/8 W, 1/10%
R946 321-1296-07 12 kQ, 1/8 W, 1/104
R948 315~0914-00 910 kn, 1/4 W, 5%
R950 315-0681-00 680 2, 1/4 W, 5%
R952 301~0303-00 30 kn, 1/2 WwW, 5%
R954 315-0472-00 4.7 kQ, 1/4 W, 5%
R956 307-0103-00 2.72, 1/4 W, 5%
R957 315~0151-00 150 2, 1/4 W, 52%
R958 308~0678~-00 0.12, 2 W, WW, 5%
R959 308-0680-00 0.45 2, 3 W, WW, 1027
R961 315~-0221-00 220 2, 1/4 W, 5%
R963 315~-0682-00 6.8 k2, 1/4 W, 5%
R966 315-0123-00 12 kQ, 1/4 W, 5%
R967 315-0364-00 360 kQ, 1/4 W, 5%
R970 321-0926-07 4 kQ, 1/8 W, 1/10%
R971 321-0924-07 40 kQ, 1/8 W, 1/10%
R973 315-0104-00 BO10100 8059999 100 kQ, 1/4 W, 5%
R973 315~0683-00 B060000 68 k2, 1/4 W, 5%
R974 315-0303-00 XBO60000 30 kQ, 1/4 W, 5%
R975 315-0362-00 3.6 kQ, 1/4 W, 5%
R977 315~-0184-00 180 kk, 1/4 W, 5%
R979 315~0822-00 8.2 kQ, 1/4 W, 5%
R980 315~0164-00 160 kn, 1/4 W, 5%
R983 315~0472-00 4.7 kQ, 1/4 W, 5%
R985 304~0470-00 47 2, 1 W, 10%
5-22
REV. D SEP. 1974
7613
