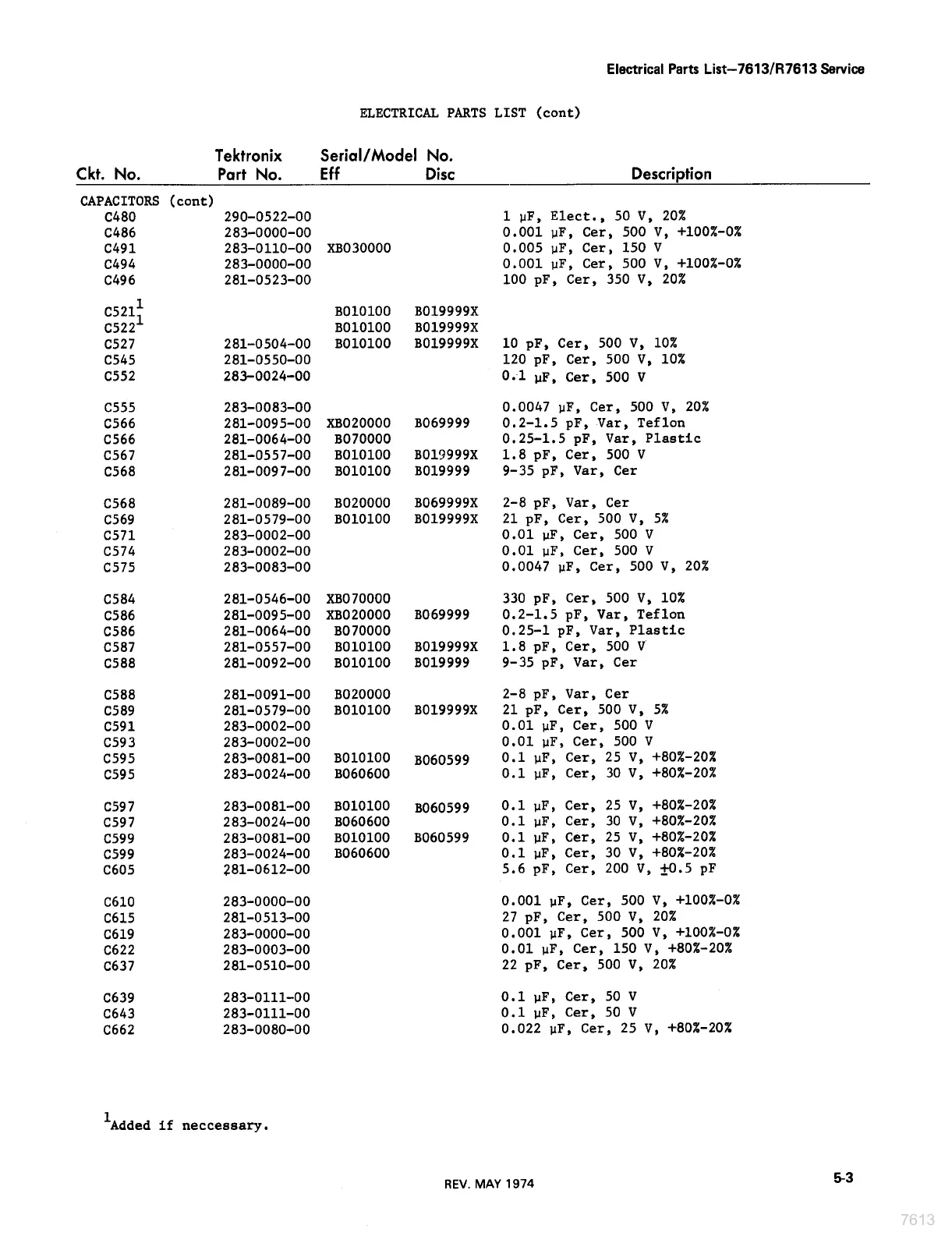

Electrical Parts List—7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Mode! No.
Ckt. No. Part No. Eff Disc Description
CAPACITORS (cont)
c480 290-0522-00 1 uF, Elect., 50 V, 20%
C486 283-0000-00 0.001 uF, Cer, 500 V, +100%-0%
C491 283-0110-00 XBO30000 0.005 uF, Cer, 150 V
C494 283-0000-00 0.001 uF, Cer, 500 V, +100%-02%
C496 281-0523-00 100 pF, Cer, 350 V, 20%
C5217 B010100 BO19999X
C522 B010100 B019999xk
C527 281-0504-00 B010100 B019999x 10 pF, Cer, 500 V, 102
C545 281-0550-00 120 pF, Cer, 500 V, 10%
C552 283-0024-00 0.1 uF, Cer, 500 V
C555 283-0083-00 0.0047 uF, Cer, 500 V, 20%
C566 281-0095-00 XB020000 B069999 0.2-1.5 pF, Var, Teflon
C566 281-0064-00 B070000 0.25-1.5 pF, Var, Plastic
C567 281-0557-00 B010100 B019999x 1.8 pF, Cer, 500 V
C568 281-0097-00 B010100 BO019999 9-35 pF, Var, Cer
C568 281-0089-00 B020000 B069999xX 2-8 pF, Var, Cer
C569 281-0579-00 BO10100 B019999xX 21 pF, Cer, 500 V, 52
C571 283-0002-00 0.01 uF, Cer, 500 V
C574 283-0002-00 0.01 uF, Cer, 500 V
C575 283-0083-00 0.0047 uF, Cer, 500 V, 20%
C584 281~-0546-00 XBO70000 330 pF, Cer, 500 V, 102%
C586 281-0095-00 XB020000 B069999 0.2-1.5 pF, Var, Teflon
C586 281-0064-00 BO070000 0.25-1 pF, Var, Plastic
C587 281-0557-00 B010100 B019999X 1.8 pF, Cer, 500 V
c588 281-0092-00 B010100 B019999 9-35 pF, Var, Cer
C588 281-0091-00 B020000 2-8 pF, Var, Cer
C589 281-0579-00 BO010100 B019999xX 21 pF, Cer, 500 V, 52%
C591 283-0002-00 0.01 uF, Cer, 500 V
C593 283-0002-00 0.01 uF, Cer, 500 V
C595 283-0081-00 B010100 B060599 O.1 uF, Cer, 25 V, +80%-202%
C595 283-0024-00 BO060600 0.1 pF, Cer, 30 V, +80%-202%
C597 283-0081-00 B010100 B060599 0.1 uF, Cer, 25 V, +80%-202
C597 283-0024-00 B060600 0.1 uF, Cer, 30 V, +80%-202%
C599 283-0081-00 B010100 B060599 0.1 uF, Cer, 25 V, +80%-202%
C599 283-0024-00 B060600 0.1 uF, Cer, 30 V, +80%-20%
c605 281-0612-00 5.6 pF, Cer, 200 V, +0.5 pF
C610 283-0000-00 0.001 uF, Cer, 500 V, +100%-0%
C615 281-0513-00 27 pF, Cer, 500 V, 202%
C619 283-0000-00 0.001 uF, Cer, 500 V, +100%-02
C622 283-0003-00 0.01 uF, Cer, 150 V, +80%-202
C637 281-0510-00 22 pF, Cer, 500 V, 20%
C639 283-0111-00 0.1 uF, Cer, 50 V
C643 283-0111-00 0.1 uF, Cer, 50 V
C662 283-0080-00 0.022 uF, Cer, 25 V, +80%-20%
1
Added if neccessary.
REV.
MAY
1974
5-3
