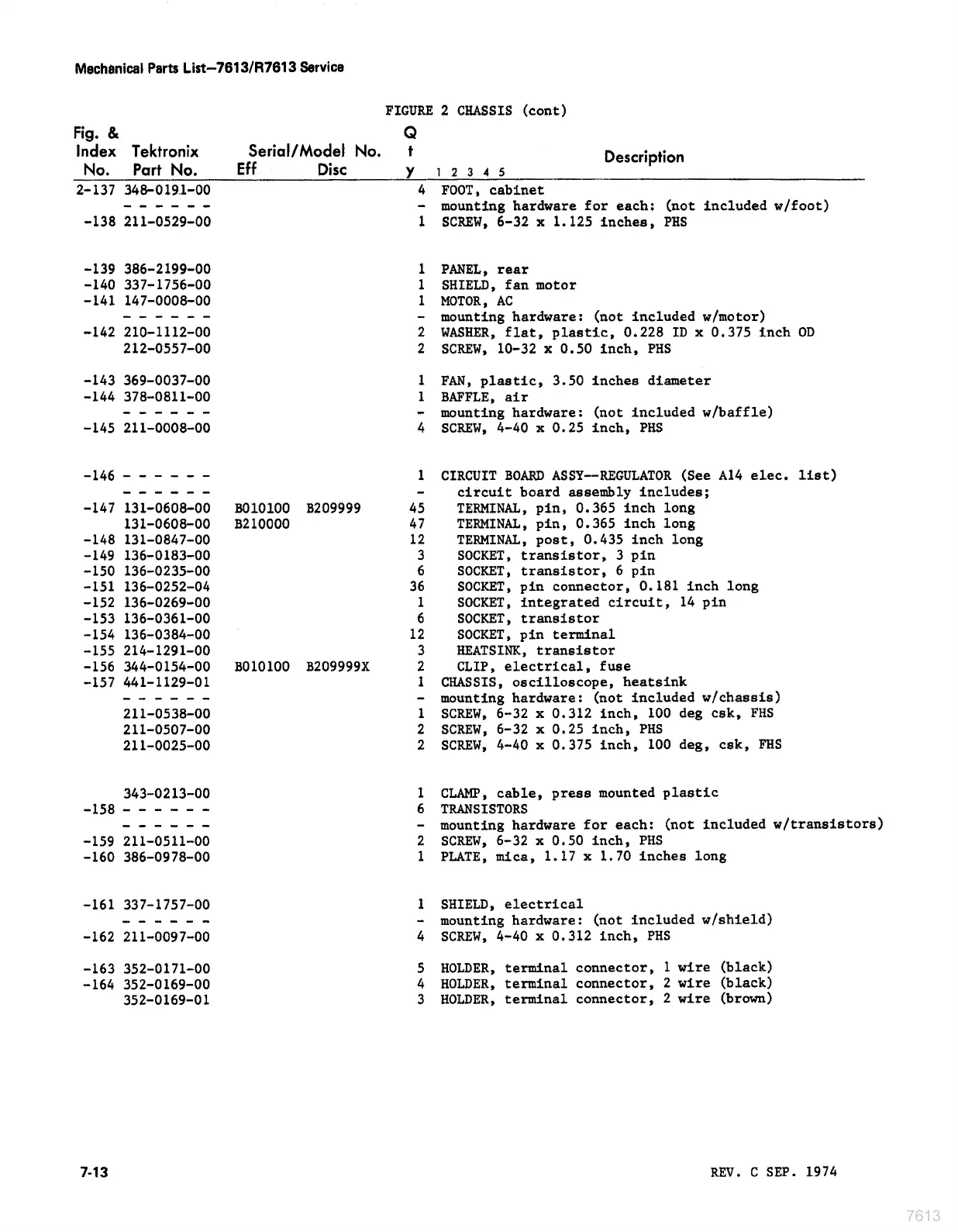

Mechanical Parts List~7613/R7613 Service
FIGURE 2 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial/Model No. ft «aa
No. Part No. Eff Disc Y 12345 Description
2137 348-0191-00 4 FOOT, cabinet
~er eee - mounting hardware for each: (not included w/foot)
~138 211-0529-00 1 SCREW, 6-32 x 1.125 inches, PHS
~139 386-2199-00 1 PANEL, rear
~140 337-1756-00 1 SHIELD, fan motor
~141 147-0008-00 1 MOTOR, AC
~s-m - mounting hardware: (not included w/motor)
~142 210-1112-00 2 WASHER, flat, plastic, 0.228 ID x 0.375 inch OD
212-0557-00 2 SCREW, 10-32 x 0.50 inch, PHS
~143 369-0037-00 1 FAN, plastic, 3.50 inches diameter
~144 378-0811-00 1 BAFFLE, air
merc em ee - mounting hardware: (not included w/baffle)
~145 211-0008-00 4 SCREW, 4-40 x 0.25 inch, PHS
~146--+---- 1 CIRCUIT BOARD ASSY--REGULATOR (See Al4 elec. list)
~eM ewe - circuit board assembly includes;
~147 131-0608-00 B010100 8209999 45 TERMINAL, pin, 0.365 inch long
131-0608-00 8210000 47 TERMINAL, pin, 0.365 inch long
~148 131-0847-00 12 TERMINAL, post, 0.435 inch long
~149 136-0183-00 3 SOCKET, transistor, 3 pin
~150 136-0235-00 6 SOCKET, transistor, 6 pin
~151 136-0252-04 36 SOCKET, pin connector, 0.181 inch long
~152 136-0269-00 1 SOCKET, integrated circuit, 14 pin
~153 136-0361-00 6 SOCKET, transistor
~154 136-0384-00 12 SOCKET, pin terminal
~155 214-1291-00 3 HEATSINK, transistor
~156 344-0154-00 8010100 8209999x 2 CLIP, electrical, fuse
~157 441-1129-01 1 CHASSIS, oscilloscope, heatsink
“sow en - mounting hardware: (not included w/chassis)
211-0538-00 1 SCREW, 6-32 x 0.312 inch, 100 deg csk, FHS
211-0507-00 2 SCREW, 6-32 x 0.25 inch, PHS
211-0025-00 2 SCREW, 4-40 x 0.375 inch, 100 deg, csk, FHS
343-0213-00 1 CLAMP, cable, press mounted plastic
~158 -~---- = 6 TRANSISTORS
“eo eee - mounting hardware for each: (not included w/transistors)
~159 211-0511-00 2 SCREW, 6-32 x 0.50 inch, PHS
~160 386-0978-00 1 PLATE, mica, 1.17 x 1.70 inches long
~161 337-1757-00 1 SHIELD, electrical
more ie - mounting hardware: (not included w/shield)
~162 211~-0097-00 4 SCREW, 4~40 x 0.312 inch, PHS
~163 352-0171-00 5 HOLDER, terminal connector, 1 wire (black)
~164 352-0169-00 4 HOLDER, terminal connector, 2 wire (black)
352-0169-01 3 HOLDER, terminal connector, 2 wire (brown)
7-13
REV. C SEP. 1974
