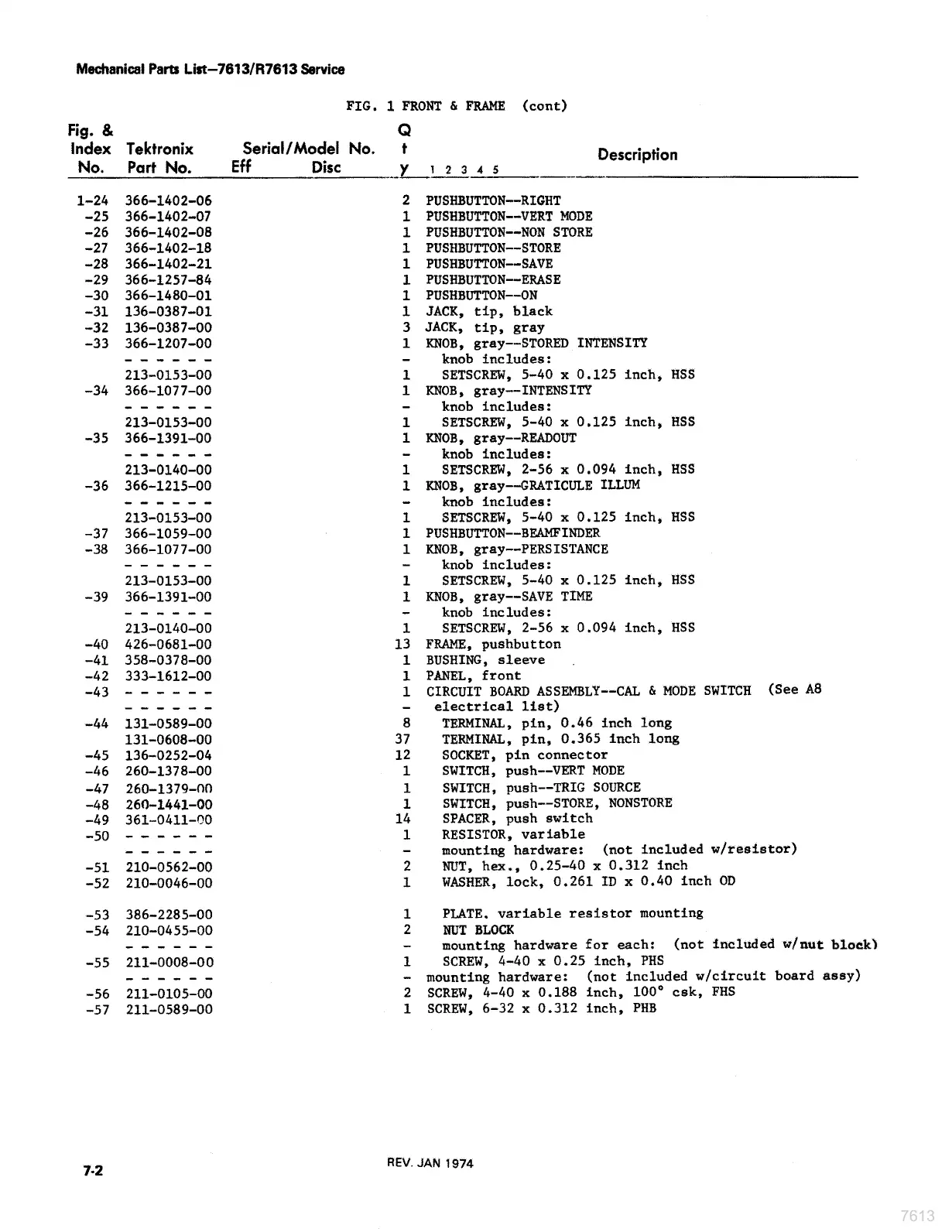

Mechanical Parts List—7613/R7613 Service
FIG, 1 FRONT & FRAME (cont)
Fig. & Q
Index Tektronix Serial/Model No. ft Description
No. Part No. Eff Disc Y 12345
1-24 366-1402-06 2 PUSHBUTTON--RIGHT
~25 366-1402-07 1 PUSHBUTTON--VERT MODE
~26 366-1402-08 1 PUSHBUTTON--NON STORE
~27 366-1402-18 1 PUSHBUTTON-~STORE
~28 366-1402-21 1 PUSHBUTTON-~SAVE
~29 366-1257-84 1 PUSHBUTTON-~ERASE
-~30 366-1480-01 1 PUSHBUTTON--ON
~31 136-0387-01 1 JACK, tip, black
-32 136-0387-00 3 JACK, tip, gray
~33 366-1207-00 1 KNOB, gray--STORED INTENSITY
-- eee - knob includes:
213-0153-00 1 SETSCREW, 5-40 x 0.125 inch, HSS
~34 366-1077-00 1 KNOB, gray-~INTENSITY
coe eee - knob includes:
213-0153-00 1 SETSCREW, 5-40 x 0,125 inch, HSS
~35 366-1391-00 1 KNOB, gray-~READOUT
-ofr eee - knob includes:
213-0140-00 1 SETSCREW, 2-56 x 0.094 inch, HSS
~36 366-1215-00 1 KNOB, gray--GRATICULE ILLUM
sw ee - knob includes:
213-0153-00 1 SETSCREW, 5-40 x 0.125 inch, HSS
-37 366-1059-00 1 PUSHBUTTON-—BEAMFINDER
~38 366-1077-00 1 KNOB, gray-~PERSISTANCE
--~ eee - knob includes:
213-0153-00 1 SETSCREW, 5-40 x 0.125 inch, HSS
~39 366-1391-00 1 KNOB, gray--SAVE TIME
~oe eee - knob includes:
213-0140-00 1 SETSCREW, 2-56 x 0.094 inch, HSS
~40 426-0681-00 13 FRAME, pushbutton
~41 358-0378-00 1 BUSHING, sleeve
~42 333~1612-00 1 PANEL, front
“43 ---- - = 1 CIRCUIT BOARD ASSEMBLY--CAL & MODE SWITCH (See A8
-—eew eae - electrical list)
~44 131-0589-00 8 TERMINAL, pin, 0.46 inch long
131-0608-00 37 TERMINAL, pin, 0.365 inch long
~45 136-0252-04 12 SOCKET, pin connector
~46 260-1378-00 1 SWITCH, push--VERT MODE
~47 260-1379-N0 1 SWITCH, push--TRIG SOURCE
~48 260~1441-00 1 SWITCH, push--STORE, NONSTORE
-~49 361-0411-90 14 SPACER, push switch
“50 --*--- 1 RESISTOR, variable
moe -- - mounting hardware: (not included w/resistor)
~51 210-0562-00 2 NUT, hex., 0.25-40 x 0.312 inch
~52 210~-0046-00 1 WASHER, lock, 0.261 ID x 0.40 inch OD
~53 386~2285-00 1 PLATE. variable resistor mounting
~54 210-0455-00 2 NUT BLOCK
--e oe - mounting hardware for each: (not included w/nut block)
~55 211~0008-00 1 SCREW, 4-40 x 0.25 inch, PHS
-as ee oe - mounting hardware: (not included w/circuit board assy)
~56 211~0105-00 2 SCREW, 4-40 x 0.188 inch, 100° csk, FHS
~57 211~-0589-00 1 SCREW, 6-32 x 0.312 inch, PHB
7-2
REV. JAN 1974
