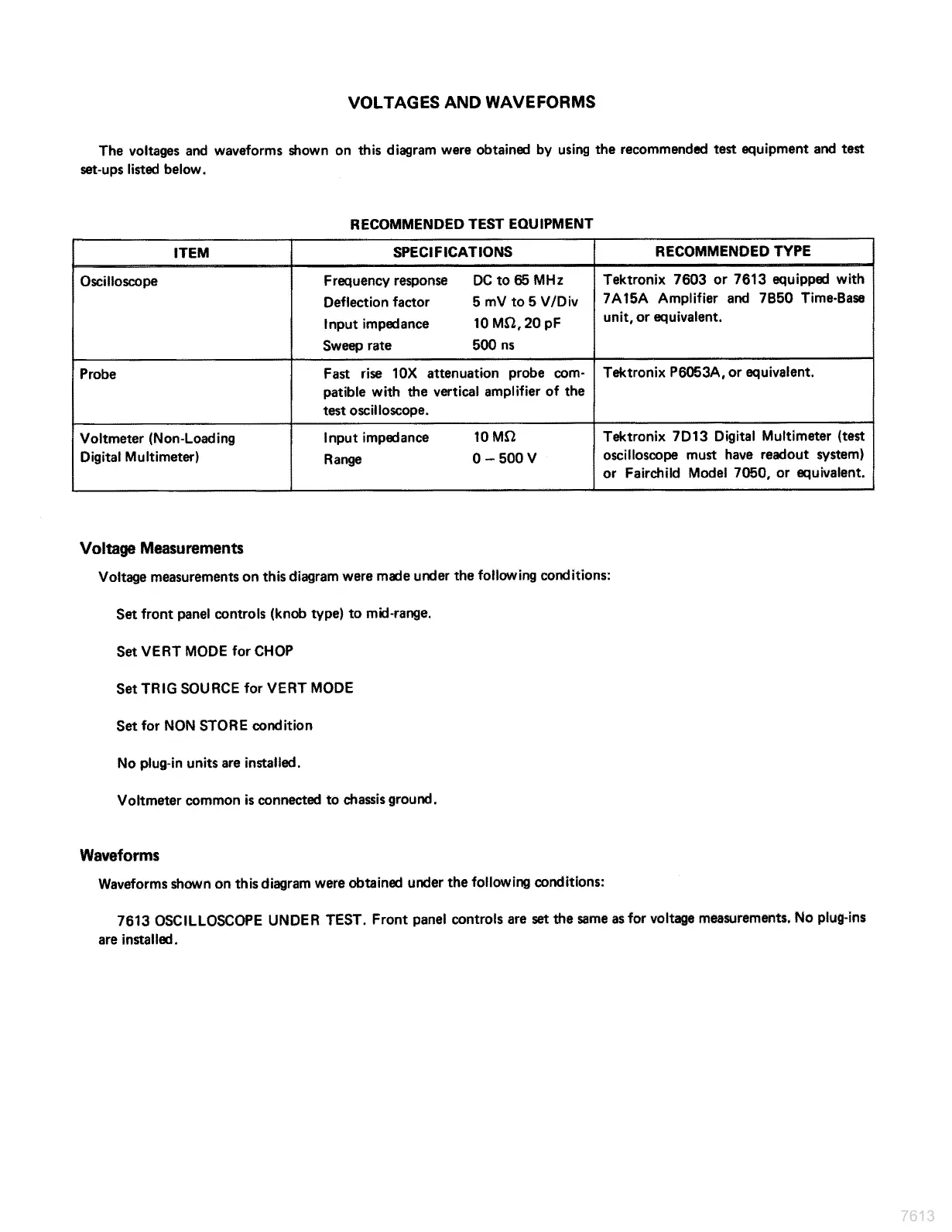

VOLTAGES AND WAVEFORMS
The voltages and waveforms shown on this diagram were obtained by using the recommended test equipment and test
set-ups listed below.
RECOMMENDED TEST EQUIPMENT
ITEM SPECIFICATIONS RECOMMENDED TYPE
Oscilloscope Frequency response DC to 65 MHz Tektronix 7603 or 7613 equipped with
Deflection factor 5 mV to5V/Div | 7A15A Amplifier and 7B50 Time-Base
Input impedance 10 MQ, 20 pF unit, or equivalent.
Sweep rate 500 ns
Probe Fast rise 10X attenuation probe com- | Tektronix P6053A, or equivalent.
patible with the vertical amplifier of the
test oscilloscope.
Voltmeter (Non-Loading Input impedance 10 MQ Tektronix 7D13 Digital Multimeter (test
Digital
Multimeter)
Range
0-500
V
oscilloscope
must
have
readout
system)
or
Fairchild
Model
7050,
or
equivalent.
Voltage Measurements
Voltage measurements on this diagram were made under the following conditions:
Set front panel controls (knob type) to mid-range.
Set VERT MODE for CHOP
Set TRIG SOURCE for VERT MODE
Set for NON STORE condition
No plug-in units are installed.
Voltmeter common is connected to chassis ground.
Waveforms
Waveforms shown on this diagram were obtained under the following conditions:
7613
OSCILLOSCOPE
UNDER
TEST.
Front
panel
controls
are
set
the
same
as
for
voltage
measurements,
No
plug-ins
are
installed.
7613
