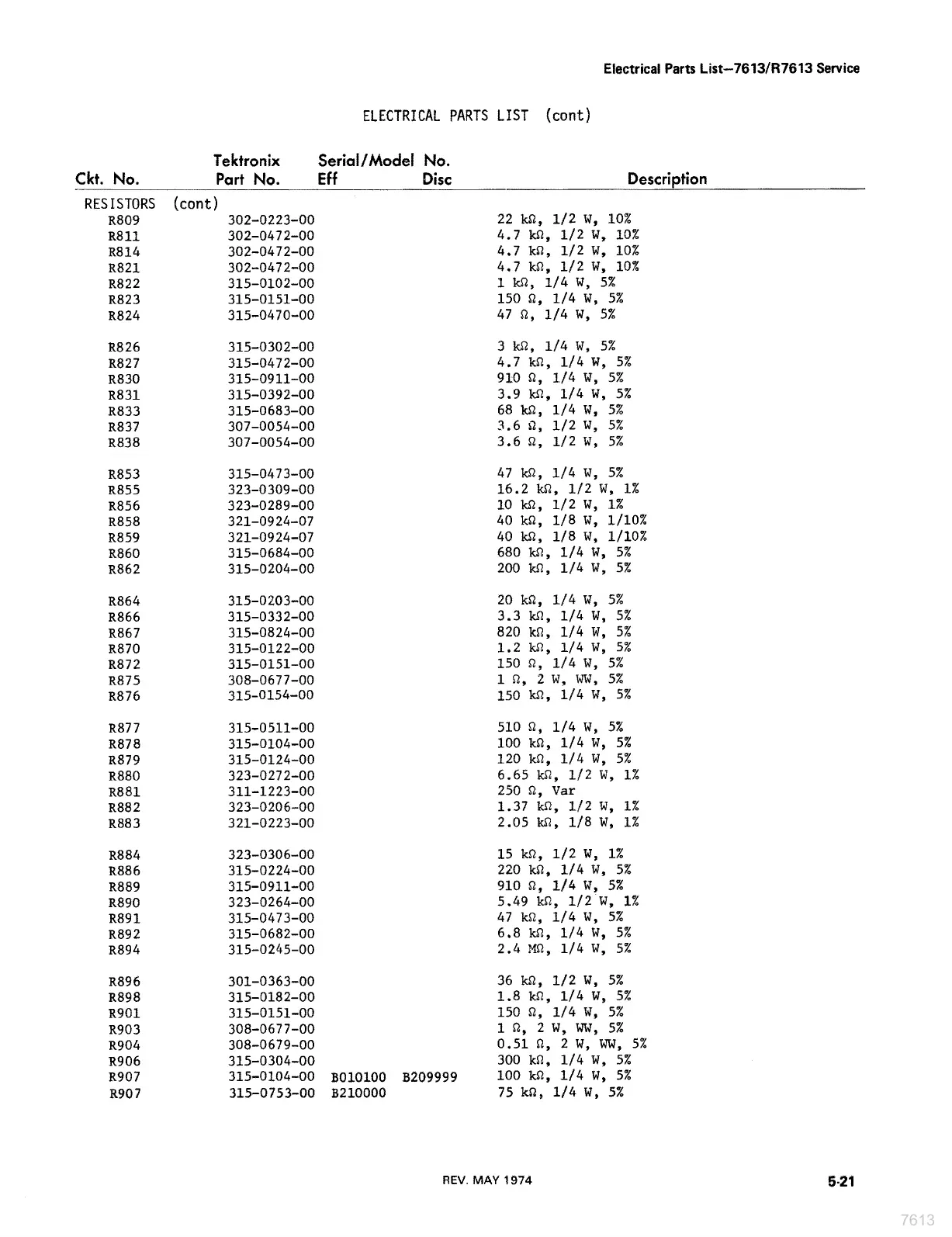

Electrical Parts List~-7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
RESISTORS (cont)
R809 302-0223-00 22 kQ, 1/2 W, 102%
R811 302-047 2-00 4.7 kQ, 1/2 W, 10%
R814 302-0472-00 4.7 kQ, 1/2 W, 102
R821 302-0472-00 4.7 kQ, 1/2 W, 10%
R822 315-0102-00 1 kM, 1/4 W, 5%
R823 315-0151-00 150 2, 1/4 W, 5%
R824 315-0470~-00 47 2, 1/4 W, 5%
R826 315-0302~-00 3.k2, 1/4 W, 5%
R827 315-0472-00 4.7 ka, 1/4 W, 5%
R830 315-0911-00 910 2, 1/4 W, 5%
R831 315-0392-00 3.9 kQ, 1/4 W, 5%
R833 315-0683-00 68 kQ, 1/4 W, 5%
R837 307-0054-00 3.6 2, 1/2 W, 5%
R838 307-0054-00 3.6 2, 1/2 W, 5%
R853 315-0473-00 47 kQ, 1/4 W, 5%
R855 323-0309-00 16.2 kQ, 1/2 W, 1%
R856 323-0289-00 10 kQ, 1/2 W, 1%
R858 321-0924~07 40 kQ, 1/8 W, 1/102%
R859 321-0924-07 40 kQ, 1/8 W, 1/10%
R860 315-0684-00 680 kn, 1/4 W, 5%
R862 315-0204-00 200 kn, 1/4 W, 5%
R864 315-0203-00 20 kQ, 1/4 W, 5%
R866 315-0332-00 3.3 kQ, 1/4 W, 52
R867 315-0824-00 820 kh, 1/4 W, 5%
R870 315-0122-00 1.2 kQ, 1/4 W, 5%
R872 315-0151-00 150 2, 1/4 W, 5%
R875 308-0677-00 12, 2 W, Ww, 5%
R876 315-0154-00 150 kf, 1/4 W, 5%
R877 315~-0511~-00 510 2, 1/4 W, 5%
R878 315-0104-00 100 kQ, 1/4 W, 5%
R879 315-0124-00 120 kQ, 1/4 W, 52
R880 323-0272-00 6.65 k2, 1/2 W, 1%
R881 311-1223-00 250 2, Var
R882 323-0206-00 1.37 kQ, 1/2 W, 1%
R883 321-0223-00 2.05 kQ, 1/8 W, 1%
R884 323-0306-00 15 kR, 1/2 W, 1%
R886 315-0224~-00 220 kQ, 1/4 W, 5%
R889 315-0911-00 910 2, 1/4 W, 54%
R890 323-0264-00 5.49 kQ, 1/2 W, 1%
R891 315-0473-00 47 kM, 1/4 W, 52%
R892 315-0682-00 6.8 k2, 1/4 W, 52%
R894 315-0245~00 2.4 MQ, 1/4 W, 57%
R896 301-0363-00 36 k2, 1/2 W, 52%
R898 315-0182-00 1.8 kQ, 1/4 W, 5%
ROOL 315-0151-00 150 2, 1/4 W, 52%
R903 308-0677-00 12, 2 W, WW, 52%
R904 308-0679-00 0.51 2, 2 W, WW, 52
R906 315-0304-00 300 kQ, 1/4 W, 5%
R907 315-0104~00 B010100 38209999 100 kn, 1/4 W, 5%
R907 315-0753-00 8B210000 75 kQ, 1/4 W, 5%
REV. MAY 1974
5-21
7613
