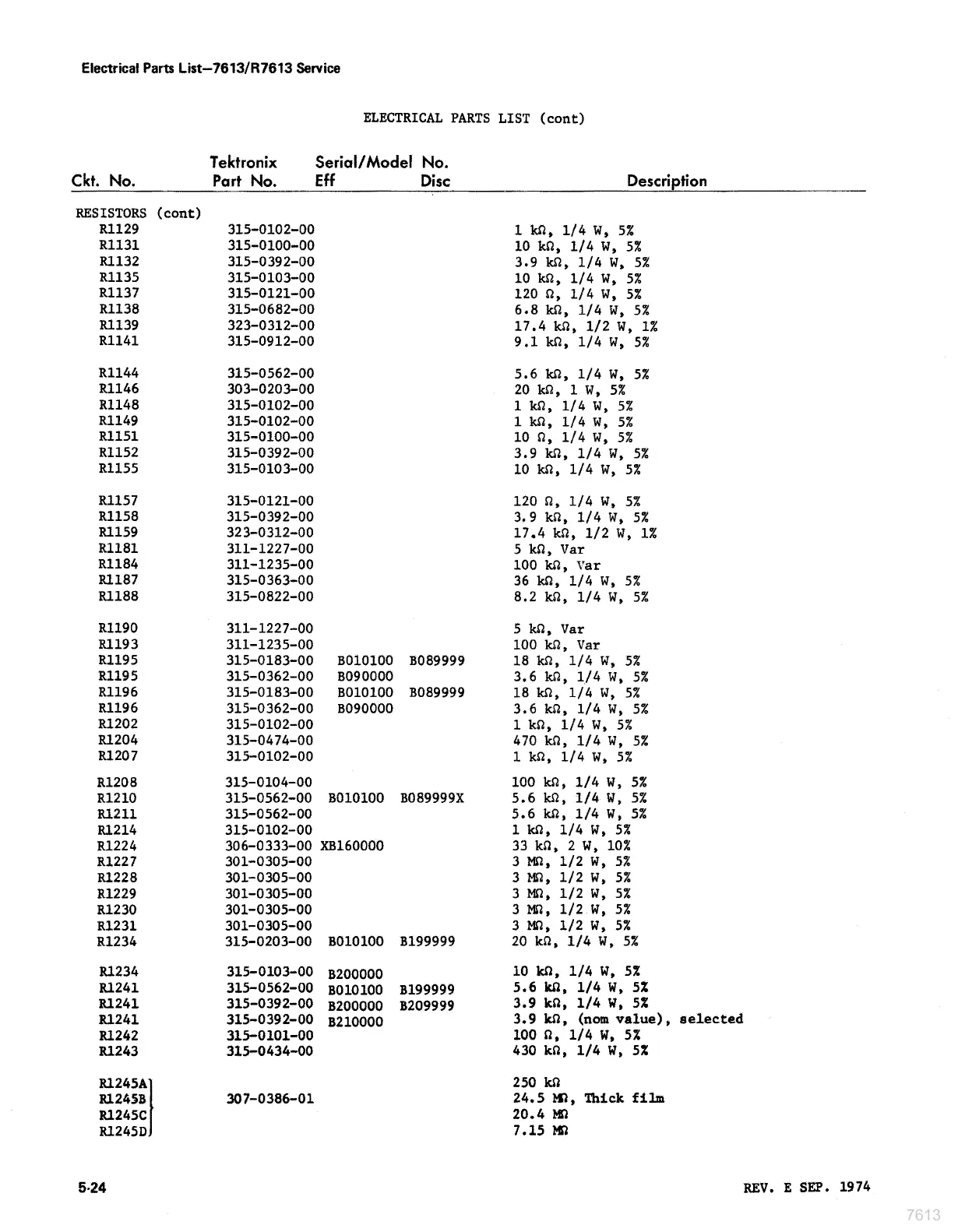

Electrical Parts List—7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Dise Description
RESISTORS (cont)
R1129 315-0102-00 1 kQ, 1/4 W, 5%
R1131 315-0100-00 10 kQ, 1/4 W, 52%
R1132 315-0392-00 3.9 kQ, 1/4 W, 5%
R1135 315-0103-00 10 kQ, 1/4 W, 5%
R1137 315-0121-00 120 2, 1/4 W, 5%
R1138 315-0682-00 6.8 kQ, 1/4 W, 5%
R1L139 323-0312-00 17.4 kQ, 1/2 W, 1%
R1141 315-0912-00 9.1 kQ, 1/4 W, 5%
R1144 315-0562~00 5.6 kQ, 1/4 W, 5%
R1146 303-0203-00 20 kn, LW, 5%
R1148 315-0102-00 1 kQ, 1/4 W, 5%
R1149 315~-0102-00 1 kQ, 1/4 W, 5%
R1151 315-0100-00 10 2, 1/4 W, 5%
R1152 315-039 2-00 3.9 k2, 1/4 W, 5%
R155 315-0103-00 10 kk, 1/4 W, 5%
R1157 315~0121-00 120 a, 1/4 W, 5%
R1158 315-0392-00 3.9 kQ, 1/4 W, 5%
R1159 323-0312-00 17.4 kn, 1/2 W, 1%
R1181 311-1227-00 5 kQ, Var
R1184 311-1235-00 100 kf, Var
R1187 315-0363-00 36 kQ, 1/4 W, 5%
R1188 315-0822-00 8.2 kQ, 1/4 W, 5%
R1190 311-1227-00 5 kQ, Var
R1193 311-1235-00 100 kQ, Var
R1195 315-0183-00 BO10100 8089999 18 kn, 1/4 W, 5%
R1195 315-0362-00 8BO090000 3.6 kQ, 1/4 W, 5%
R1196 315-0183-00 B010100 B089999 18 kf, 1/4 W, 5%
R1196 315-0362-00 B090000 3.6 kQ, 1/4 W, 5%
R1202 315-0102-00 1kfg, 1/4 W, 5%
R1204 315-0474-00 470 kQ, 1/4 W, 5%
R1207 315-0102-00 1 kQ, 1/4 W, 5%
R1208 315-0104-00 100 kQ, 1/4 W, 5%
R1210 315-0562-00 BO10100 8089999X 5.6 kQ, 1/4 W, 5%
Ri211 315-0562-00 5.6 k2, 1/4 W, 5%
Ri214 315-0102-00 1kQ, 1/4 W, 5%
R1224 306-0333-00 XB160000 33 kQ, 2 W, 10%
R1227 301-0305-00 3 MQ, 1/2 W, 5%
R1228 301-0305-00 3 MR, 1/2 W, 52
R1229 301-0365-00 3 MQ, 1/2 W, 5%
R1230 301-0305-00 3 MQ, 1/2.W, 5%
R1231 301-0305-00 3 MM, 1/2 W, 5%
R1234 315-0203-00 BO10100 8199999 20 kQ, 1/4 W, 5%
R1234 315-0103-00 200000 10 k, 1/4 W, 5%
R1241 315-0562-00 3010100 3199999 5.6 kQ, 1/4 W, 5%
R1241 315-0392-00 p200000 3B209999 3.9 kQ, 1/4 W, 5%
R1241 315-0392-00 3210000 3.9 k2, (nom value), selected
R1242 315-0101-00 100 2, 1/4 W, 5%
R1243 315-0434-00 430 kQ, 1/4 W, 5%
R1245A 250 ka
R1L2458 307-0386-01 24.5 mM, Thick film
R1245C 20.4 MM
R1245D 7.15 Mm
5-24
REV. E SEP. 1974
7613
