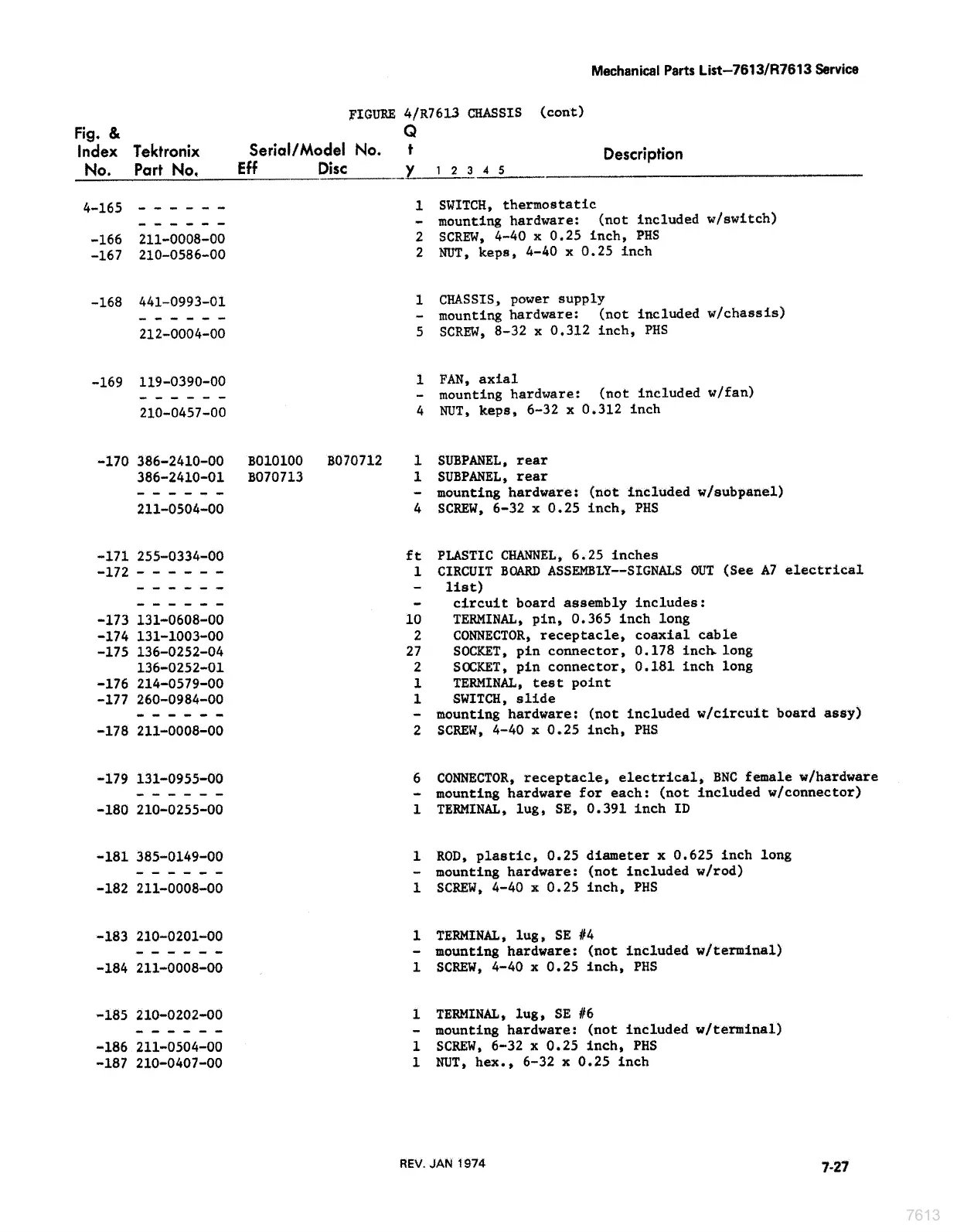

Mechanical Parts List~-7613/R7613 Service
FIGURE 4/R7613 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial/Model No. ft Description
No. Part No. Eff Disc y 12345
4—165 mm me me 1 SWITCH, thermostatic
meee
ee
-
mounting
hardware:
(not
included
w/switch)
~166
211-0008~00
2
SCREW,
4-40
x
0.25
inch,
PHS
“167
210~-0586-00
2
NUT,
keps,
4-40
x
0.25
inch
~168
441-0993-01
CHASSIS,
power
supply
wee
eee
-
mounting
hardware:
(not
included
w/chassis)
212-0004-00
5
SCREW,
8-32
x
0,312
inch,
PHS
~169
119-0390~-00
1
FAN,
axial
“eee oe - mounting hardware: (not included w/fan)
210~0457-00
4
NUT,
keps,
6-32
x
0.312
inch
“170 386-2410-00 B010100 8070712 1 SUBPANEL, rear
386-2410-01 8070713 1 SUBPANEL, rear
“ee oe - mounting hardware: (not included w/subpanel)
211-0504-00 4 SCREW, 6-32 x 0.25 inch, PHS
“171 255-0334-00 ft PLASTIC CHANNEL, 6.25 inches
“172 ------ 1 CIRCUIT BOARD ASSEMBLY--SIGNALS OUT (See A7 electrical
~<—-s 2s - list)
~~ - cireuit board assembly includes:
~173 131-0608-00 10 TERMINAL, pin, 0.365 inch long
~174 131-1003-00 2 CONNECTOR, receptacle, coaxial cable
~175 136-0252-04 27 SOCKET, pin connector, 0.178 inch long
136-0252-01 2 SOCKET, pin connector, 0.181 inch long
“176 214-0579-00 1 TERMINAL, test point
~177 260-0984-00 1 SWITCH, slide
ween ee - wtounting hardware: (not included w/circuit board assy)
~178 211-0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
“179 131-0955-00 6 CONNECTOR, receptacle, electrical, BNC female w/hardware
mee ee - mounting hardware for each: (not included w/connector)
“180 210-0255-00 1 TERMINAL, lug, SE, 0.391 inch ID
~181 385-0149-00 1 ROD, plastic, 0.25 diameter x 0.625 inch long
~or cee - mounting hardware: (not included w/rod)
~182 211-0008-00 1 SCREW, 4-40 x 0.25 inch, PHS
~183 210-0201-00 1 TERMINAL, lug, SE #4
merce ce - mounting hardware: (not included w/terminal)
~184 211-0008-00 1 SCREW, 4-40 x 0.25 inch, PHS
185 210-0202-00 1 TERMINAL, lug, SE #6
meee ee - mounting hardware: (not included w/terminal)
~186 211-0504-00 1 SCREW, 6~32 x 0.25 inch, PHS
~187 210-0407-00 1 NUT, hex., 6~32 x 0.25 inch
REV. JAN 1974
7-27
7613
