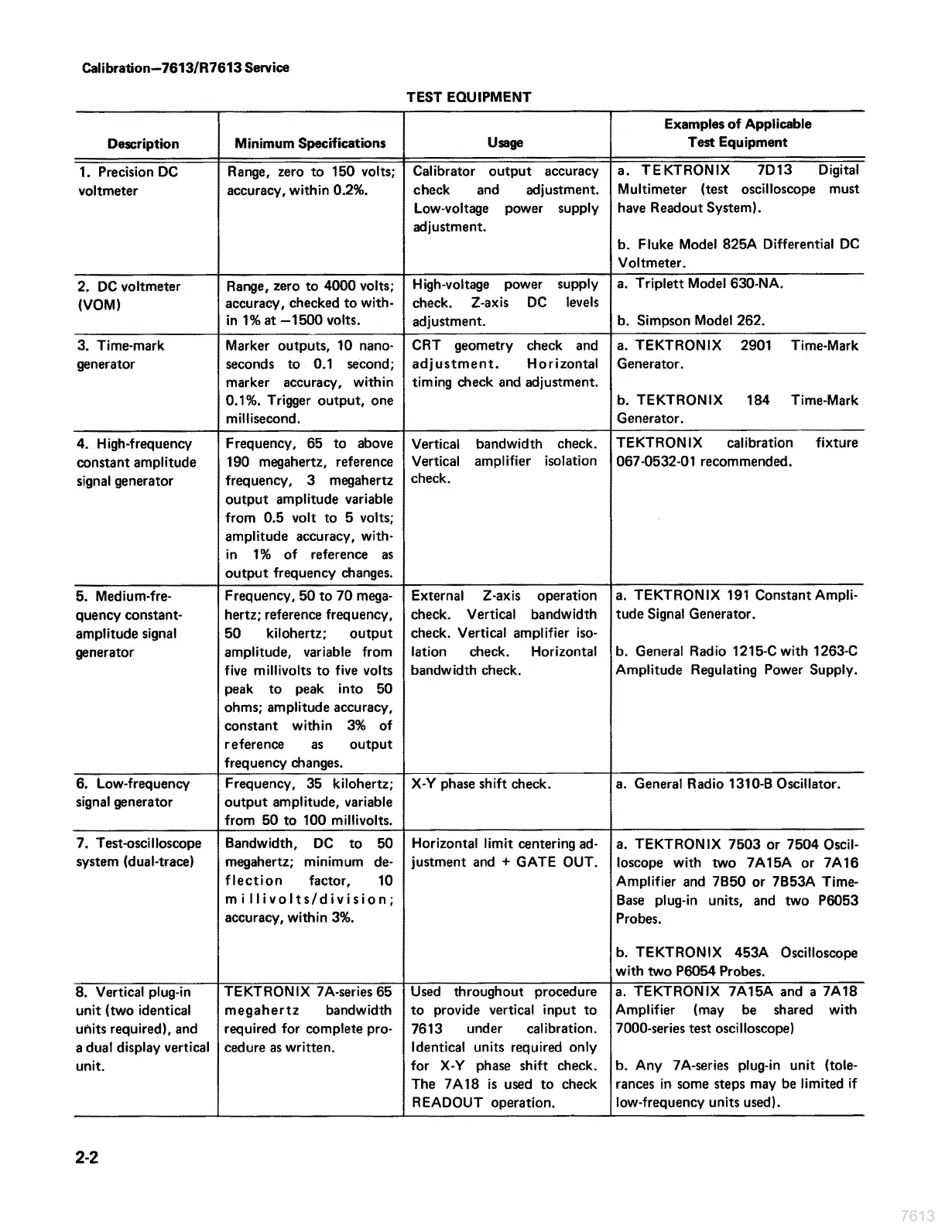

Calibration—-7613/R7613 Service
TEST EQUIPMENT
Examples of Applicable
Description Minimum Specifications Usage Test Equipment
1. Precision DC Range, zero to 150 volts; | Calibrator output accuracy | a. TEKTRONIX 7D13 Digital
voltmeter accuracy, within 0.2%. check and adjustment. | Multimeter (test oscilloscope must
Low-voltage power supply | have Readout System).
adjustment.
b. Fluke Model 825A Differential DC
Voltmeter.
2. DC voltmeter
(VOM)
Range, zero to 4000 volts;
accuracy, checked to with-
in 1% at —1500 volts.
High-voitage power supply
check. Z-axis DC levels
adjustment.
a. Triplett Model 630-NA.
b. Simpson Model 262.
3. Time-mark
Marker outputs, 10 nano-
CRT geometry check and a. TEKTRONIX 2901 Time-Mark
generator seconds to 0.1 second; | adjustment. Horizontal | Generator.
marker accuracy, within | timing check and adjustment.
0.1%. Trigger output, one b. TEKTRONIX 184 = Time-Mark
millisecond. Generator.
4, High-frequency Frequency, 65 to above | Vertical bandwidth check. | TEKTRONIX calibration fixture
constant amplitude 190 megahertz, reference | Vertical amplifier isolation {| 067-0532-01 recommended.
signal generator frequency, 3 megahertz | check.
output amplitude variable
from 0.5 volt to 5 volts;
amplitude accuracy, with-
in 1% of reference as
output frequency changes.
5. Medium-fre- Frequency, 50 to 70 mega- | External Z-axis operation ja. TEKTRONIX 191 Constant Ampli-
quency constant- hertz; reference frequency, | check. Vertical bandwidth | tude Signal Generator.
amplitude signal
generator
50 sikilohertz; output
amplitude, variable from
five millivolts to five volts
peak to peak into 50
ohms; amplitude accuracy,
constant within 3% of
reference as output
frequency changes.
check. Vertical amplifier iso-
lation check. Horizontal
bandwidth check.
b. General Radio 1215-C with 1263-C
Amplitude Regulating Power Supply.
6. Low-frequency
signal generator
Frequency, 35 kilohertz;
output amplitude, variable
from 50 to 100 miltivolts.
X-Y phase shift check. a. General Radio 1310-B Oscillator.
7. Test-oscilloscope
system (dual-trace)
Bandwidth, DC to 50
megahertz; minimum de-
flection factor, 10
millivolts/division;
accuracy, within 3%.
Horizontal limit centering ad-
justment and + GATE OUT.
a. TEKTRONIX 7503 or 7504 Oscil-
loscope with two 7A15A or 7A16
Amplifier and 7B50 or 7B53A Time-
Base plug-in units, and two P6053
Probes.
b. TEKTRONIX 453A Oscilloscope
with two P6054 Probes.
8. Vertical plug-in
unit (two identical
units required), and
a dual display vertical
unit.
TEKTRONIX 7A-series 65
megahertz bandwidth
required for complete pro-
cedure as written.
Used throughout procedure
to provide vertical input to
7613 under calibration.
Identical units required only
for X-Y phase shift check.
The 7A18 is used to check
READOUT operation.
a. TEKTRONIX 7A15A and a 7A18
Amplifier (may be shared with
7000-series test oscilloscope)
b. Any 7A-series plug-in unit (tole-
rances in some steps may be limited if
low-frequency units used).
2-2
7613
