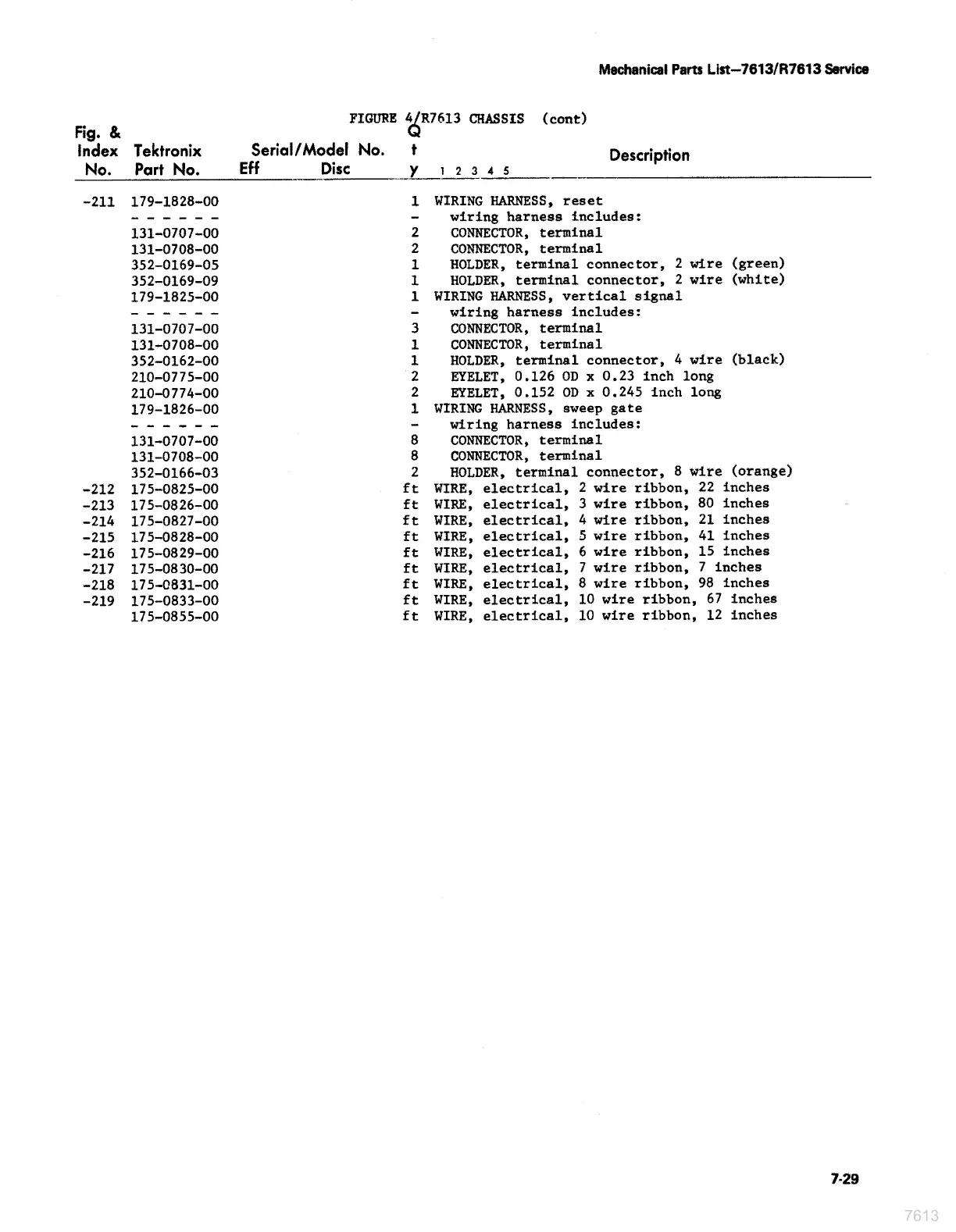

Mechanical Parts List~-7613/R7613 Service
FIGURE 4R7613 CHASSIS (cont)
Fig. &
Index Tektronix Serial/Model No. t Description
No. Part No. Eff Dise Y 12345
~211 179-1828~-00 1 WIRING HARNESS, reset
weer coe - wiring harness includes:
131-0707-00 2 CONNECTOR, terminal
131-0708-00 2 CONNECTOR, terminal
352-0169-05 1 HOLDER, terminal connector, 2 wire (green)
352-0169-09 1 HOLDER, terminal connector, 2 wire (white)
179-1825-00 1 WIRING HARNESS, vertical signal
-occ ee - wiring harness includes:
131-0707-00 3 CONNECTOR, terminal
131~0708-00 1 CONNECTOR, terminal
352~-0162-00 1 HOLDER, terminal connector, 4 wire (black)
210-0775-00 2 EYELET, 0.126 OD x 0.23 inch long
210-0774-00 2 EYELET, 0.152 OD x 0.245 inch long
179-1826-00 1 WIRING HARNESS, sweep gate
~s ee oe - wiring harness includes:
131-0707-00 8 CONNECTOR, terminal
131-0708-00 8 CONNECTOR, terminal
352-0166-03 2 HOLDER, terminal connector, 8 wire (orange)
~212 175-0825-00 ft WIRE, electrical, 2 wire ribbon, 22 inches
~213 175-0826-00 ft WIRE, electrical, 3 wire ribbon, 80 inches
-214 175-0827-00 ft WIRE, electrical, 4 wire ribbon, 21 inches
-215 175-0828-00 ft WIRE, electrical, 5 wire ribbon, 41 inches
~216 175-0829-60 ft WIRE, electrical, 6 wire ribbon, 15 inches
~217 175-0830-00 ft WIRE, electrical, 7 wire ribbon, 7 inches
218 175-0831-00 ft WIRE, electrical, 8 wire ribbon, 98 inches
-~219 175-0833-00 ft WIRE, electrical, 10 wire ribbon, 67 inches
175-0855-00 ft WIRE, electrical, 10 wire ribbon, 12 inches
7-29
7613
