Mechanical Parts List-7613/R7613 Service

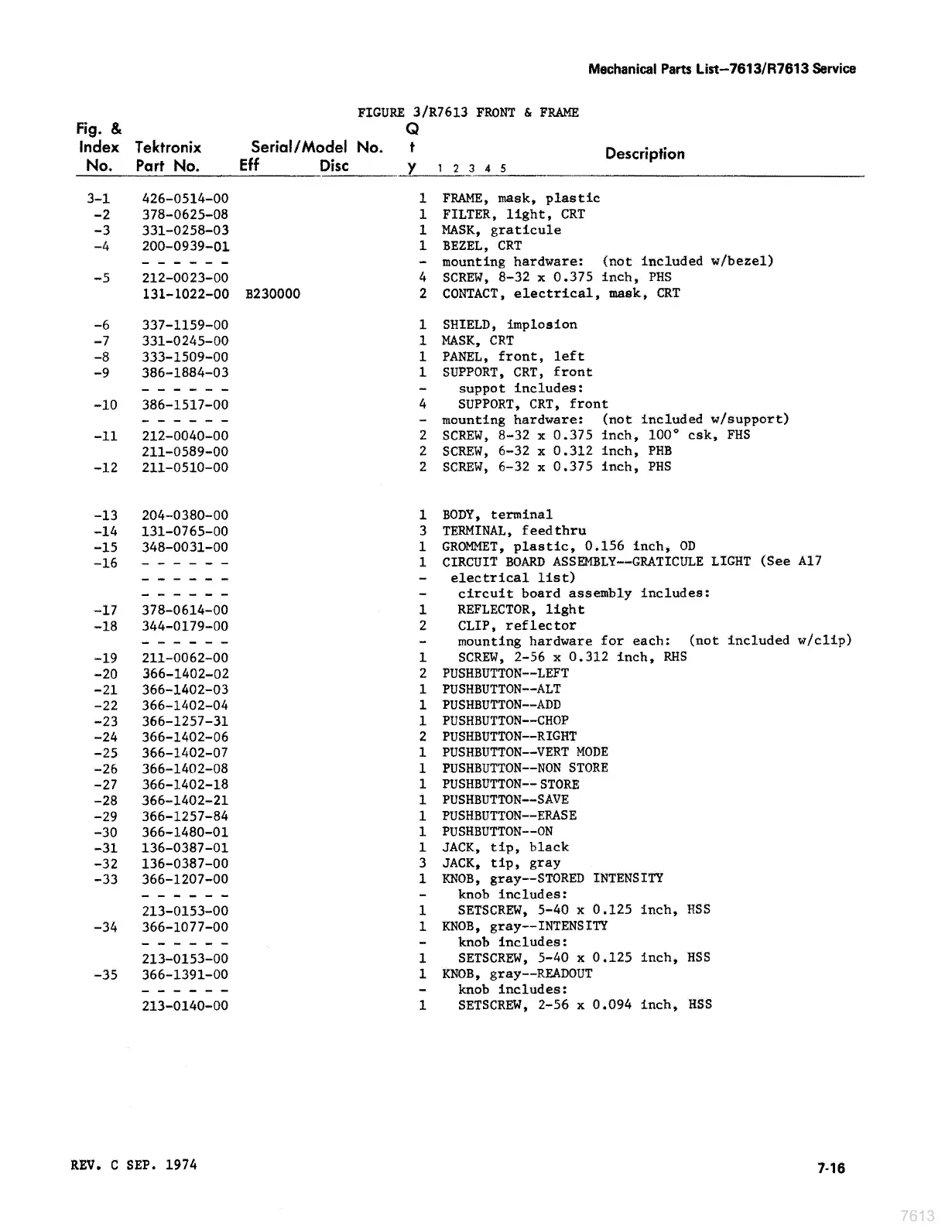

FIGURE 3/R7613 FRONT & FRAME
Fig. & Q
Index Tektronix Serial/Model No. t¢ + ae
No. Part No. Eff Disc Y 12345 Description
3-1 426-0514-00 1 FRAME, mask, plastic
~2 378-0625-08 1 FILTER, light, CRT
~3 331-0258-03 1 MASK, graticule
~4 200-0939~-01 1 BEZEL, CRT
------ - mounting hardware: (not included w/bezel)
a5 212-0023-00 4 SCREW, 8-32 x 0.375 inch, PHS
131-1022-00 B230000 2 CONTACT, electrical, mask, CRT
+6 337-1159-—00 1 SHIELD, implosion
~7 331-0245-00 1 MASK, CRT
-8 333-1509-00 1 PANEL, front, left
-9 386-1884-03 1 SUPPORT, CRT, front
-e ote ~ suppot includes:
~10 386-1517~-00 4 SUPPORT, CRT, front
~- oe ee ~ mounting hardware: (not included w/support)
+11 212-0040-00 2 SCREW, 8-32 x 0.375 inch, 100° csk, FHS
211-0589-00 2 SCREW, 6-32 x 0.312 inch, PHB
~12 211-0510-00 2 SCREW, 6-32 x 0.375 inch, PHS
~13 204-0380~-00 1 BODY, terminal
~14 131-0765-00 3 TERMINAL, feedthru
~15 348-0031~-00 1 GROMMET, plastic, 0.156 inch, OD
-“16 ---<--+- 1 CIRCUIT BOARD ASSEMBLY-~GRATICULE LIGHT (See Al?
~~ oe ee ~ electrical list)
“eo eee ~ circuit board assembly includes:
“17 = 378-0614-00 1 REFLECTOR, light
~18 344-0179-00 2 CLIP, reflector
--- eee ~ mounting hardware for each: (not included w/elip)
“19 211-0062-00 1 SCREW, 2-56 x 0.312 inch, RHS
~20 366-1402-02 2 PUSHBUTTON--LEFT
-21 366-1402-03 1 PUSHBUTTON--ALT
~22 366-1402-04 1 PUSHBUTTON~-ADD
“23 366-1257-31 1 PUSHBUTTON--CHOP
~24 366-1402-06 2 PUSHBUTTON--RIGHT
-25 366-1402-07 1 PUSHBUTTON--VERT MODE
~26 366-1402-08 1 PUSHBUTTON~-NON STORE
-27 366-1402-18 1 PUSHBUTTON-~- STORE
-28 366~-1402-21 1 PUSHBUTTON-~SAVE
-29 366-1257-84 1 PUSHBUTTON--ERASE
~30 366-1480-01 1 PUSHBUTTON~-ON
~31 136-0387-01 1 JACK, tip, black
~32 136-0387-00 3 JACK, tip, gray
-33 366-1207-00 1 KNOB, gray--STORED INTENSITY
-- ee ee ~ knob includes:
213-0153-00 1 SETSCREW, 5-40 x 0.125 inch, HSS
34 366-1077-00 1 KNOB, gray--INTENSITY
- eee ee ~ knob includes:
213-0153-00 1 SETSCREW, 5-40 x 0.125 inch, HSS
“35 366-1391-00 1 KNOB, gray--READOUT
-e ee ee ~ knob includes:
213-0140-00 1 SETSCREW, 2-56 x 0.094 inch, HSS
REV. C SEP. 1974
