Electrical
Parts
List-7613/R7613
Service

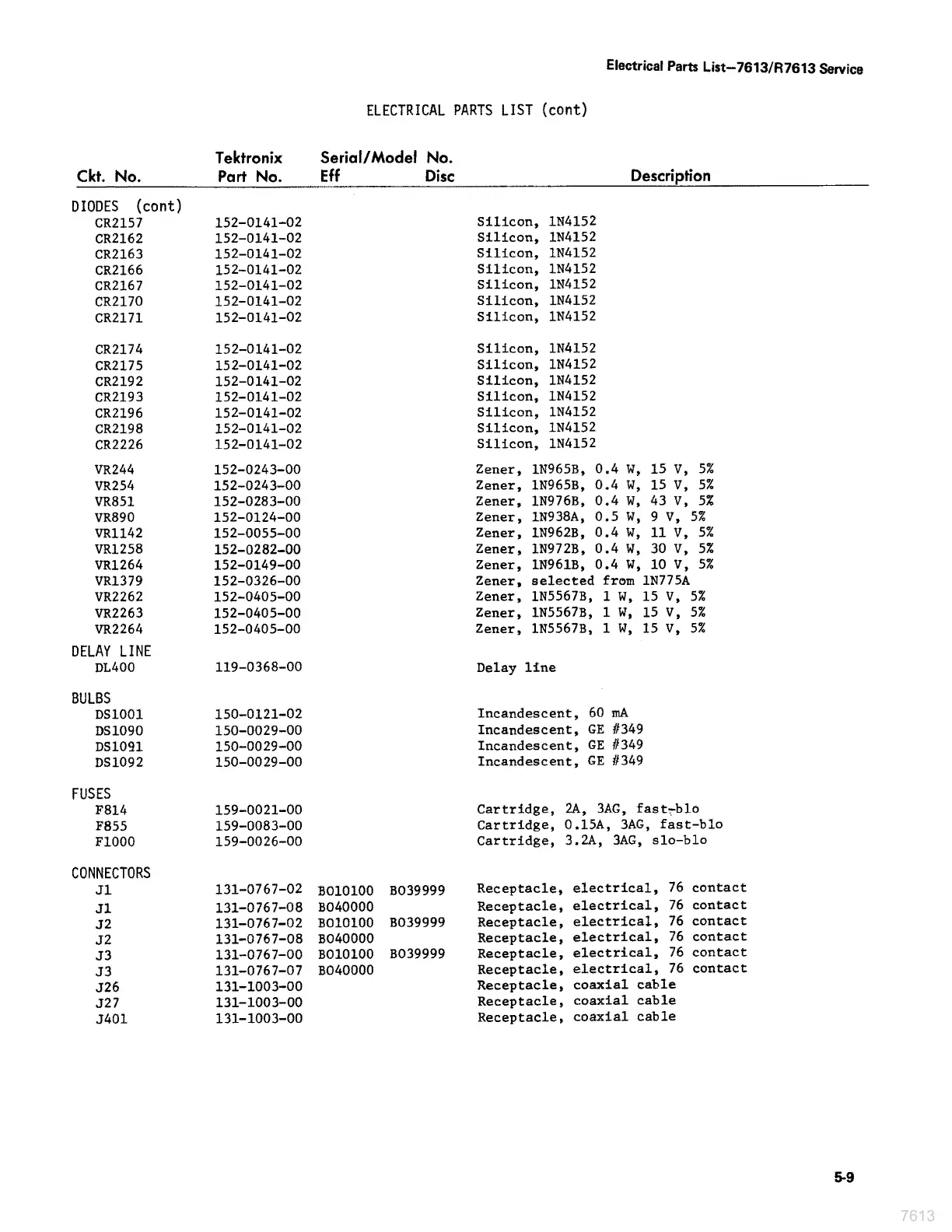

ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
DIODES (cont)
CR2157 152-0141-02 Silicon, 1N4152
CR2162 152-0141~-02 Silicon, 1N4152
CR2163 152-0141-02 Silicon, 1N4152
CR2166 152-0141~-02 Silicon, 1N4152
CR2167 152-0141-02 Silicon, 1N4152
CR2170 152-0141-02 Silicon, 1N4152
CR2171 152-0141-02 Silicon, 1N4152
CR2174 152-0141-02 Silicon, 1N4152
CR2175 152-0141-02 Silicon, 1N4152
CR2192 152-0141-02 Silicon, 1N4152
CR2193 152-0141-02 Silicon, 1N4152
CR2196 152-0141-02 Silicon, 1N4152
CR2198 152-0141-02 Silicon, 1N4152
CR2226 152-0141-02 Silicon, 1N4152
VR244 152-0243-00 Zener, 1N965B, 0.4 W, 15 V, 5%
VR254 152-0243-00 Zener, 1N965B, 0.4 W, 15 V, 54
VR851 152-0283-00 Zener, 1N976B, 0.4 W, 43 V, 5%
VR890 152-0124-00 Zener, IN938A, 0.5 W, 9 V, 52
VR1142 152-0055-00 Zener, 1N962B, 0.4 W, 11 V, 5%
VR1258 152-0282-00 Zener, 1N972B, 0.4 W, 30 V, 5%
VR1264 152-0149-00 Zener, 1N961B, 0.4 W, 10 V, 5%
VR1379 152-0326-00 Zener, selected from 1N775A
VR2262 152-0405-00 Zener, 1N5567B, 1W, 15 V, 5%
VR2263 152-0405-00 Zener, 1N5567B, 1 W, 15 V, 5%
VR2264 152-0405-00 Zener, 1N5567B, 1W, 15 V, 5%
DELAY LINE
DL400 119-0368-00 Delay line
BULBS
DS1001 150-0121~-02 Incandescent, 60 mA
DS1090 150-0029-00 Incandescent, GE #349
DS1091 150-0029-00 Incandescent, GE #349
DS 1092 150-0029-00 Incandescent, GE #349
FUSES
F814 159-0021-00 Cartridge, 2A, 3AG, fast-blo
F855 159-0083-00 Cartridge, 0.15A, 3AG, fast-blo
F1000 159-0026-00 Cartridge, 3.2A, 3AG, slo-blo
CONNECTORS
JL 131-0767-02 B010100 BO039999 Receptacle, electrical, 76 contact
J1
131-0767-08
8040000
Receptacle,
electrical,
76
contact
J2
131-0767-02
BO10100
BO39999
Receptacle,
electrical,
76
contact
J2
131-0767-08
BO40000
Receptacle,
electrical,
76
contact
J3
131-0767-00
8010100
B039999
Receptacle,
electrical,
76
contact
J3
131-0767-07
BO40000
Receptacle,
electrical,
76
contact
326
131-1003-00
Receptacle,
coaxial
cable
J27
131-1003-00
Receptacle,
coaxial
cable
J401
131-1003-00
Receptacle,
coaxial
cable
5-9
7613
