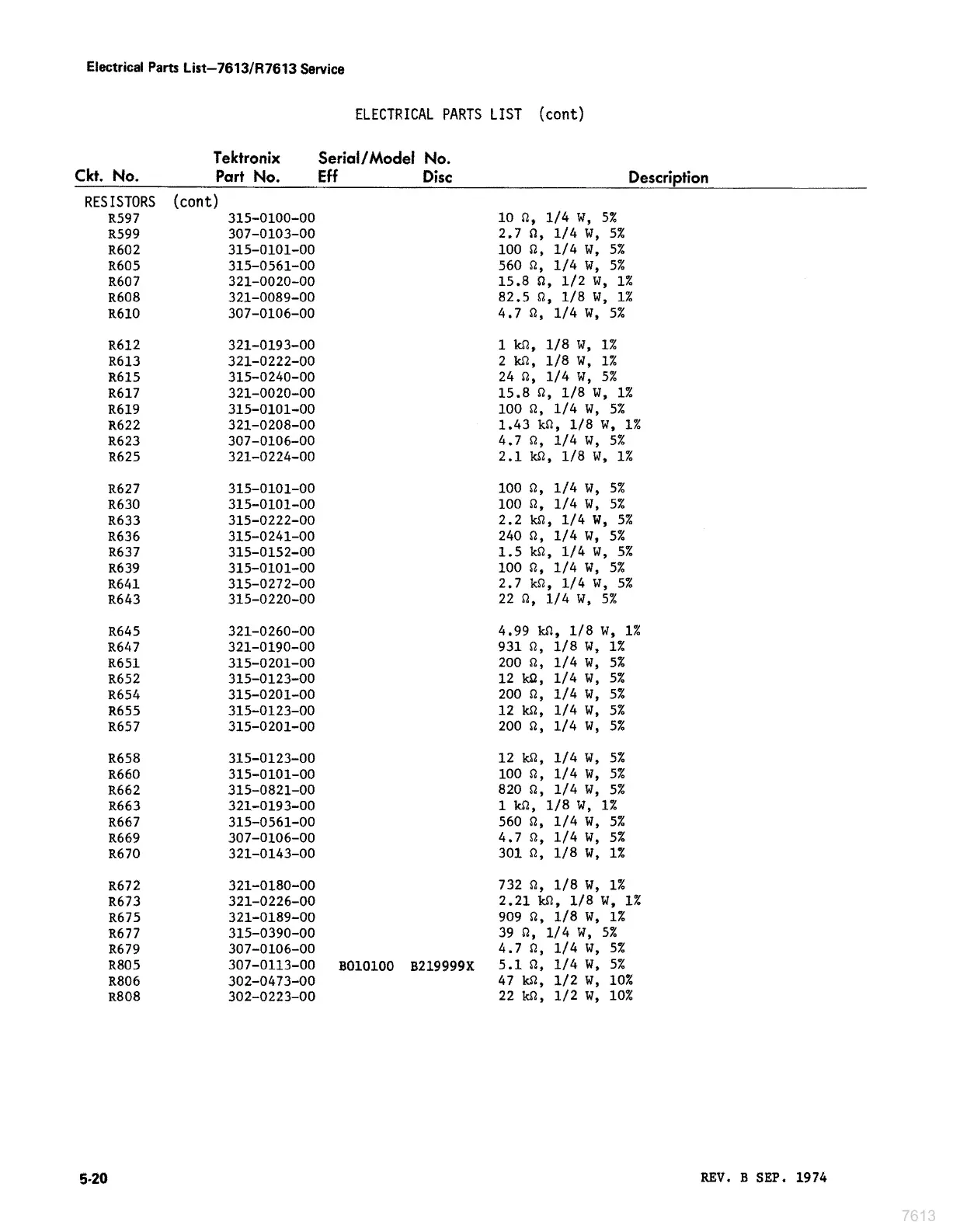

Electrical Parts List~-7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Dise Description
RESISTORS (cont)
R597 315-0100-00 10 2, 1/4 W, 5%
R599 307-0103-00 2.7 9, 1/4 W, 5%
R602 315-0101-00 100 2, 1/4 W, 5%
R605 315-0561-00 560 2, 1/4 W, 5%
R607 321-0020~00 15.8 2, 1/2 W, 1%
R608 321-0089-00 82.5 2, 1/8 W, 1%
R610 307-0106-00 4.7 9, 1/4 W, 5%
R612 321-0193-00 1 ka, 1/8 Ww, 1%
R613 321-0222-00 2k2, 1/8 W, 1%
R615 315-0240-00 24 2, 1/4 W, 5%
R617 321-0020-00 15.8 &, 1/8 W, 1%
R619 315-0101~00 100 2, 1/4 W, 5%
R622 321-0208-00 1.43 kQ, 1/8 W, 1%
R623 307-0106-~-00 4.7 2, 1/4 W, 5%
R625 321-0224-00 2.1 k2, 1/8 W, 1%
R627 315-0101-00 100 2, 1/4 W, 5%
R630 315-0101-00 100 2, 1/4 W, 54%
R633 315-0222-00 2.2 kQ, 1/4 W, 5%
R636 315-0241-00 240 2, 1/4 W, 5%
R637 315-0152-00 1.5 kf, 1/4 W, 52
R639 315-0101-00 100 2, 1/4 W, 5%
R641 315-0272-00 2.7 kQ, 1/4 W, 5%
R643 315-0220-00 22 2, 1/4 W, 5%
R645 321-0260-00 4.99 kQ, 1/8 W, 1%
R647 321-0190-00 931 2, 1/8 W, 1%
R651 315-0201-00 200 2, 1/4 W, 5%
R652 315-0123-00 12 kQ, 1/4 W, 5%
R654 315-0201-00 200 2, 1/4 W, 5%
R655 315-0123-00 12 kh, 1/4 W, 52%
R657 315-0201-00 200 2, 1/4 W, 5%
R658 315-0123-00 12 k2, 1/4 W, 5%
R660 315-0101-00 100 2, 1/4 W, 5%
R662 315-0821-00 820 2, 1/4 W, 5%
R663 321-019 3-00 1 ko, 1/8 W, 1%
R667 315-0561-00 560 2, 1/4 W, 52
R669 307-0106-00 4.7 2, 1/4 W, 52%
R670 321-0143-00 301 2, 1/8 W, 1%
R672 321-0180~00 732 2, 1/8 W, 1%
R673 321-0226-00 2.21 k2, 1/8 W, 12%
R675 321-6189-00 909 &, 1/8 W, 1%
R677 315-0390-00 39 2, 1/4 W, 5%
R679 307-0106-00 4.79, 1/4 W, 5%
R805 307-0113-00 BO10100 B219999xX 5.12, 1/4 W, 5%
R806 302-0473-00 47 kQ, 1/2 W, 102%
R808 302-0223-00 22 kQ, 1/2 W, 102%
5-20
REV. B SEP. 1974
7613
