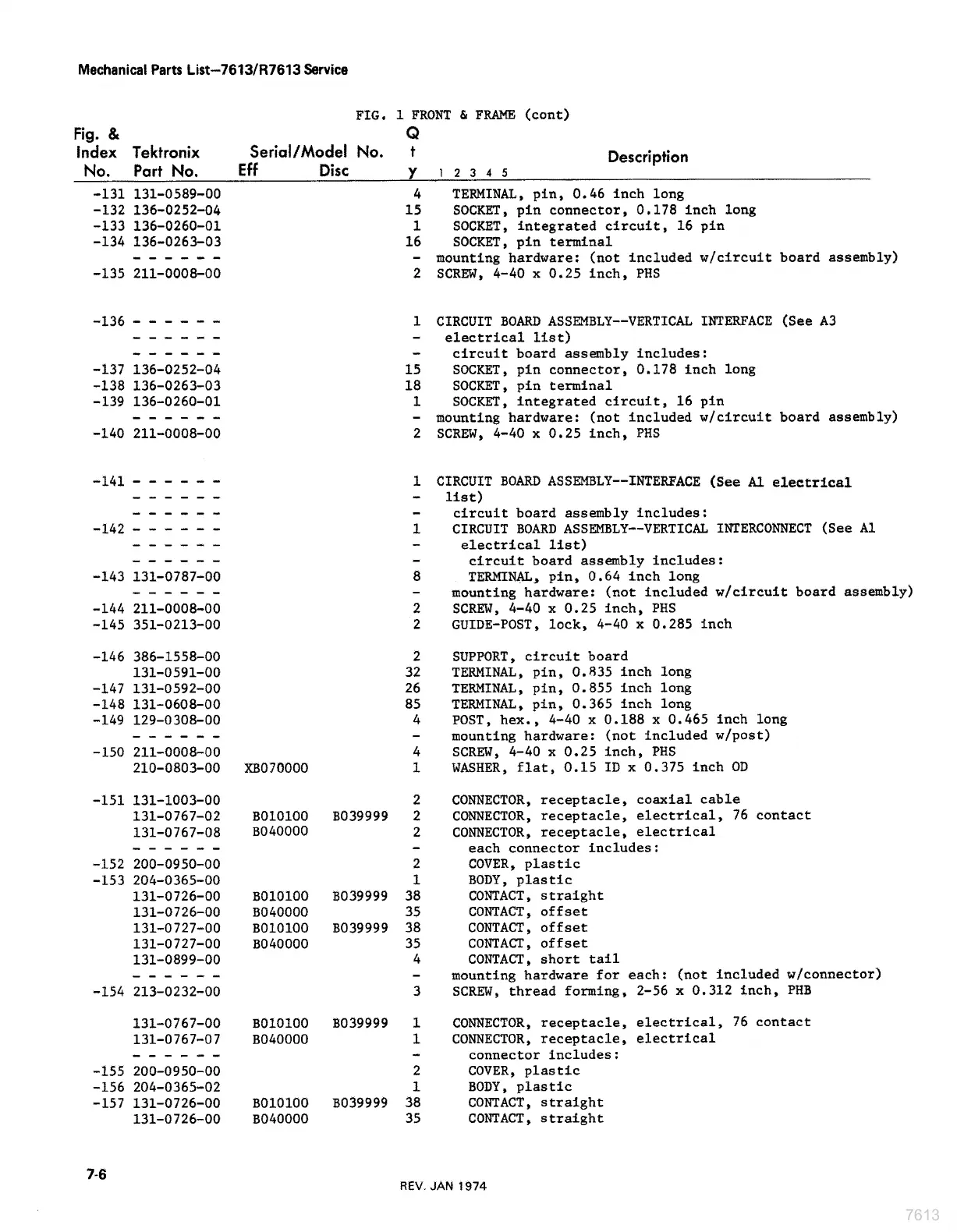

Mechanical Parts List--7613/R7613 Service
FIG. 1 FRONT & FRAME (cont)
Fig. & Q
Index Tektronix Serial/Model No. t Description
No. Part No. Eff Dise Y 12345
-131 131-0589-00 4 TERMINAL, pin, 0.46 inch long
-132 136-0252-04 15 SOCKET, pin connector, 0.178 inch long
~133 136-0260-01 1 SOCKET, integrated circuit, 16 pin
-134 136-0263-03 16 SOCKET, pin terminal
“coor ee - mounting hardware: (not included w/circuit board assembly)
~135 211-0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
-136--+----< 1 CIRCUIT BOARD ASSEMBLY--VERTICAL INTERFACE (See A3
eo eee e - electrical list)
~- ror - circuit board assembly includes:
-137 136-0252-04 15 SOCKET, pin connector, 0.178 inch long
~138 136-0263-03 18 SOCKET, pin terminal
-139 136-0260-01 1 SOCKET, integrated circuit, 16 pin
coco - mounting hardware: (not included w/circuit board assembly)
-140 211-0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
~I41l--+---- 1 CIRCUIT BOARD ASSEMBLY--INTERFACE (See Al electrical
---+-e- - list)
me ott - circuit board assembly includes:
-142 ---+---+- 1 CIRCUIT BOARD ASSEMBLY--VERTICAL INTERCONNECT (See Al
“weer r te - electrical list)
-or ce - eireuit board assembly includes:
~143 131-0787-00 8 TERMINAL, pin, 0.64 inch long
“ccc - mounting hardware: (not included w/circuit board assembly)
~144 211-0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
-145 351-0213-00 2 GUIDE-POST, lock, 4-40 x 0.285 inch
—-146 386-1558-00 2 SUPPORT, circuit board
131-0591-00 32 TERMINAL, pin, 0.835 inch long
-147 131-0592-00 26 TERMINAL, pin, 0.855 inch long
-148 131-0608-00 85 TERMINAL, pin, 0.365 inch long
-149 129-0308-00 4 POST, hex., 4-40 x 0.188 x 0.465 inch long
---+--+- - mounting hardware: (not included w/post)
-150 211-0008-00 4 SCREW, 4-40 x 0.25 inch, PHS
210-0803-00 xXBO76000 1 WASHER, flat, 0.15 ID x 0.375 inch OD
-151 131-1003-00 2 CONNECTOR, receptacle, coaxial cable
131-0767-02 BO1LO100 BO39999 2 CONNECTOR, receptacle, electrical, 76 contact
131-0767-08 BO40000 2 CONNECTOR, receptacle, electrical
~cccfe - each connector includes:
~152 200-0950-00 2 COVER, plastic
~153 204-0365-00 1 BODY, plastic
131-0726-00 BO10100 8039999 38 CONTACT, straight
131~-0726-00 B040000 35 CONTACT, offset
131-0727~-00 BO10100 B039999 38 CONTACT, offset
131-0727-00 B040000 35 CONTACT, offset
131-0899-00 4 CONTACT, short tail
--oe cree - mounting hardware for each: (not included w/connector)
~154 213-0232-00 3 SCREW, thread forming, 2-56 x 0.312 inch, PHB
131-0767-00 BO10100 8039999 1 CONNECTOR, receptacle, electrical, 76 contact
131-0767-07 BO040000 1 CONNECTOR, receptacle, electrical
--orc ce ~ connector includes:
-155 200-0950-00 2 COVER, plastic
-156 204-0365-02 1 BODY, plastic
-157 131-0726-00 BO10100 8039999 38 CONTACT, straight
131-0726-00 BO40000 35 CONTACT, straight
7-6
REV. JAN 1974
