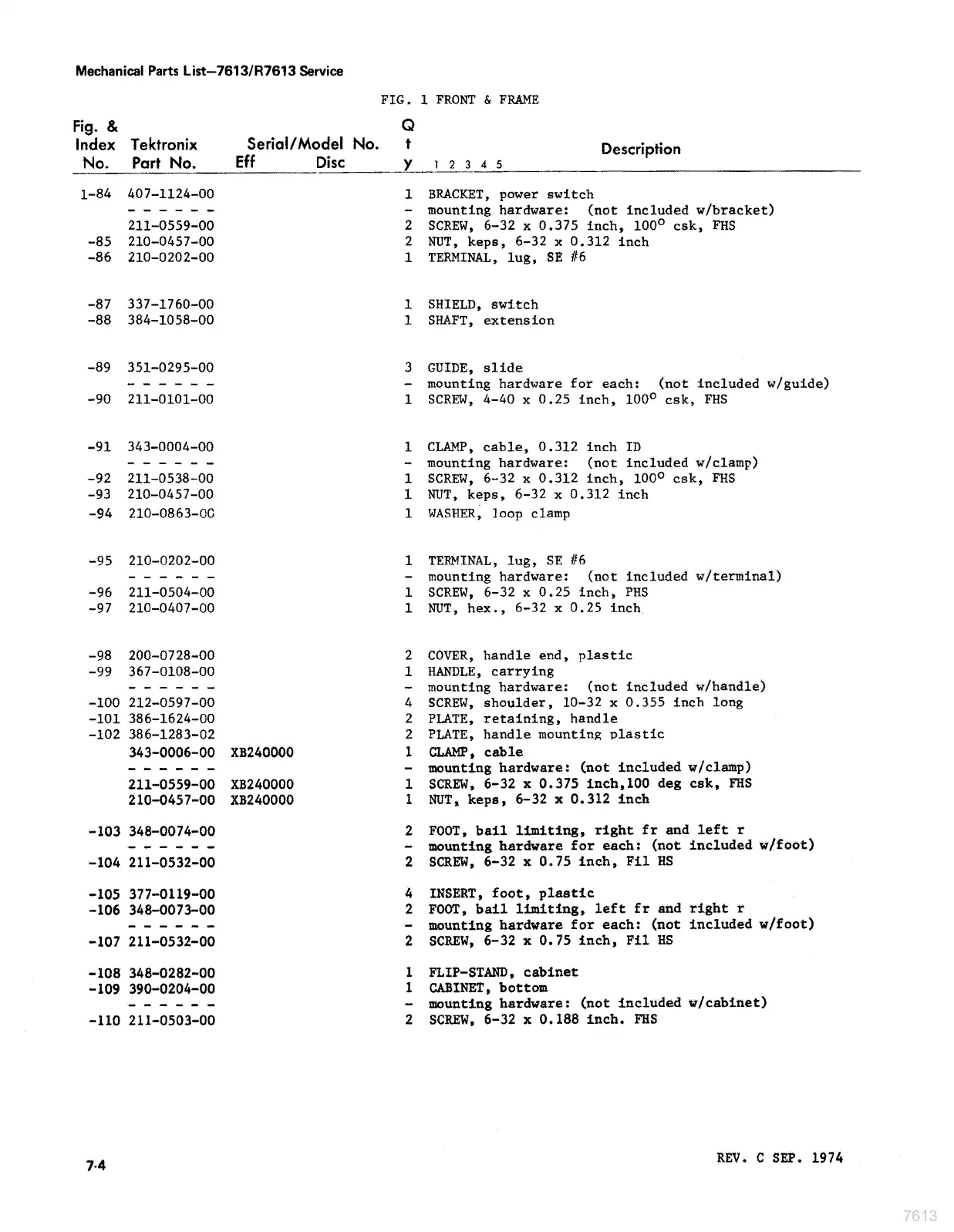

Mechanical Parts List—7613/R7613 Service
FIG. 1 FRONT & FRAME
Fig. & Q
Index Tektronix Serial/Model No. f¢ Description
No. Part No. Eff Disc Y 12345
1~84 407-1124-00 1 BRACKET, power switch
“oe - mounting hardware: (not included w/bracket)
211-0559-00 2 SCREW, 6-32 x 0.375 inch, 100° csk, FHS
~85 210-0457~-00 2 NUT, keps, 6-32 x 0.312 inch
~86 210-0202-00 1 TERMINAL, lug, SE #6
~87 337-1760~00 1 SHIELD, switch
~88 384-1058-00 1 SHAFT, extension
~89 351-0295-00 3. GUIDE, slide
mo oe - mounting hardware for each: (not included w/guide)
-90 211-0101-00 1 SCREW, 4-40 x 0.25 inch, 100° csk, FHS
“91 343-0004-00 1 CLAMP, cable, 0.312 inch ID
mero ee - mounting hardware: (not included w/clamp)
~92 211-0538~00 1 SCREW, 6-32 x 0.312 inch, 100° esk, FHS
~93 210-0457-00 1 NUT, keps, 6-32 x 0.312 inch
~94 210-0863-~06 1 WASHER, loop clamp
~95 210-0202-00 1 TERMINAL, lug, SE #6
“som mm - mounting hardware: (not included w/terminal)
~96 211-0504-00 1 SCREW, 6-32 x 0.25 inch, PHS
-~97 = 210-0407-00 1 NUT, hex., 6-32 x 0.25 inch
~98 200-0728-00 2 COVER, handle end, plastic
-99 367-0108-00 1 HANDLE, carrying
we oe ee ~ mounting hardware: (not included w/handle)
~100 212-0597-~00 4 SCREW, shoulder, 10-32 x 0.355 inch long
~101 386-1624-00 2 PLATE, retaining, handle
~102 386-1283~02 2 PLATE, handle mounting plastic
343-0006-00 XB240000 1 CLAMP, cable
“ee ee - mounting hardware: (not included w/clamp)
211-0559-00 XB240000 1 SCREW, 6-32 x 0.375 inch,100 deg csk, FHS
210-0457-00 XB240000 1 WUT, keps, 6~32 x 0.312 inch
“103 348-0074-00 2 FOOT, bail limiting, right fr and left r
m~ eon ee - mounting hardware for each: (not included w/foot)
~104 211-0532-00 2 SCREW, 6-32 x 0.75 inch, Fil HS
~105 377-0119-00 4 INSERT, foot, plastic
~106 348-0073-00 2 FOOT, bail limiting, left fr and right r
“soe ee - mounting hardware for each: (not included w/foot)
~107 211-0532-00 2 SCREW, 6-32 x 0.75 inch, Fil HS
~108 348-0282~00 1 FLIP~STAND, cabinet
~109 390-0204-00 1 CABINET, bottom
“aoe ee ~ mounting hardware: (not included w/cabinet)
~110 211-0503-00 2 SCREW, 6-32 x 0.188 inch. FHS
7-4
REV. C SEP. 1974
