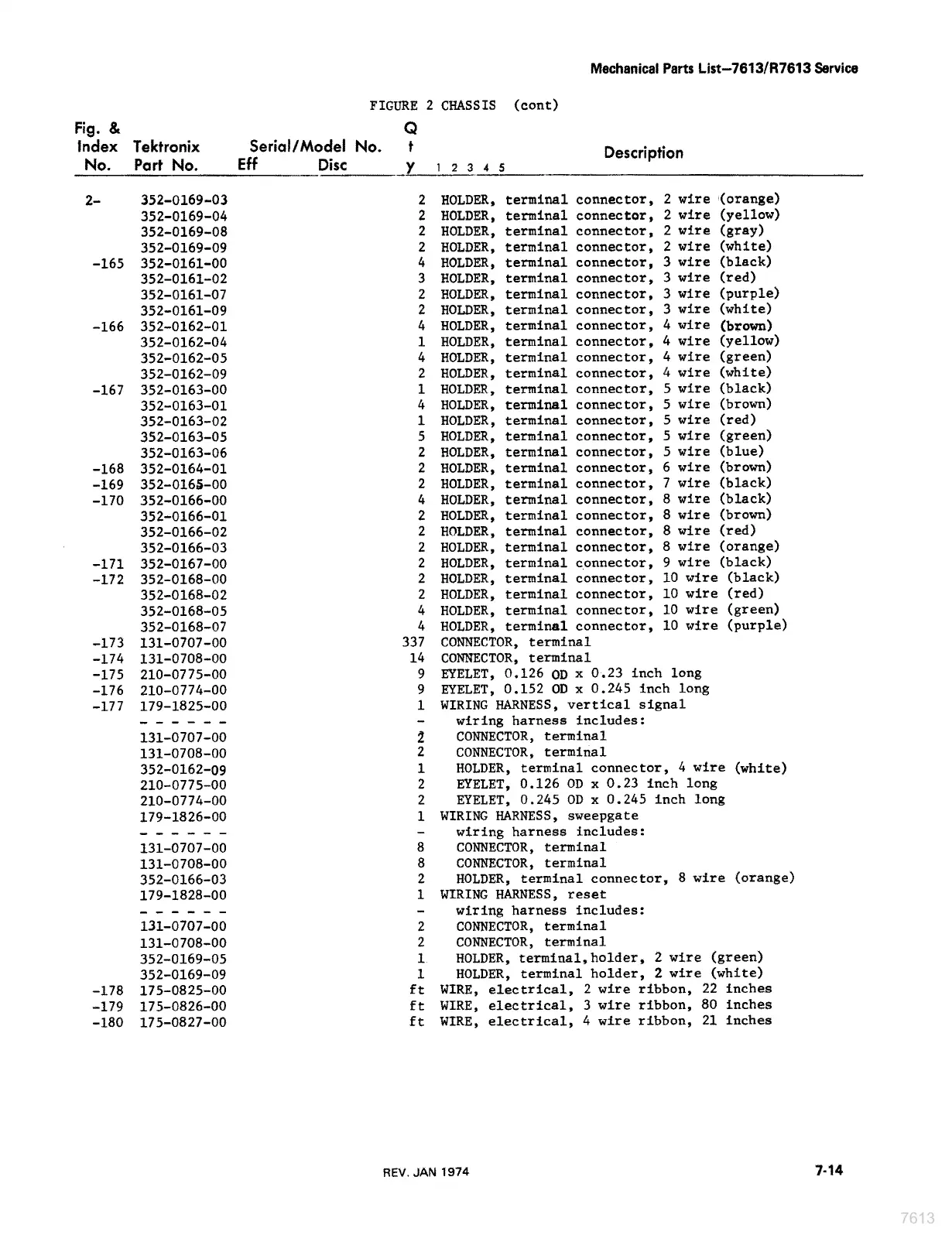

Mechanical Parts List—7613/R7613 Service
FIGURE 2 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial/Model No. ¢ Description
No. Part No. Eff Disc Y 12345
2- 352-0169~03 2 HOLDER, terminal connector, 2 wire (orange)
352-0169~04 2 HOLDER, terminal connector, 2 wire (yellow)
352-0169~-08 2 HOLDER, terminal connector, 2 wire (gray)
352-0169-09 2 HOLDER, terminal connector, 2 wire (white)
-165 352-0161-00 4 HOLDER, terminal connector, 3 wire (black)
352-0161-02 3 HOLDER, terminal connector, 3 wire (red)
352-0161-07 2 HOLDER, terminal connector, 3 wire (purple)
352~-0161-09 2 HOLDER, terminal connector, 3 wire (white)
-166 352-0162-01 4 HOLDER, terminal connector, 4 wire (brown)
352-0162-04 1 HOLDER, terminal connector, 4 wire (yellow)
352-0162-05 4 HOLDER, terminal connector, 4 wire (green)
352-0162-09 2 HOLDER, terminal connector, 4 wire (white)
-167 352-0163-00 1 HOLDER, terminal connector, 5 wire (black)
352-0163-01 4 HOLDER, terminal connector, 5 wire (brown)
352-0163~02 1 HOLDER, terminal connector, 5 wire (red)
352-0163-05 5 HOLDER, terminal connector, 5 wire (green)
352-0163~06 2 HOLDER, terminal connector, 5 wire (blue)
-168 352-0164-01 2 HOLDER, terminal connector, 6 wire (brown)
169 352-0165-00 2 HOLDER, terminal connector, 7 wire (black)
-170 352-0166-00 4 HOLDER, terminal connector, 8 wire (black)
352+0166-01 2 HOLDER, terminal connector, 8 wire (brown)
352-0166-02 2 HOLDER, terminal connector, 8 wire (red)
352-0166-03 2 HOLDER, terminal connector, 8 wire (orange)
-171 352-0167-00 2 HOLDER, terminal connector, 9 wire (black)
-172 352-0168-00 2 HOLDER, terminal connector, 10 wire (black)
352-0168-02 2 HOLDER, terminal connector, 10 wire (red)
352-0168~05 4 HOLDER, terminal connector, 10 wire (green)
352-0168-07 4 HOLDER, terminal connector, 10 wire (purple)
-173 131-0707-00 337 CONNECTOR, terminal
-174 131-0708~00 14 CONNECTOR, terminal
~175 210-0775-00 9 EYELET, 0.126 op x 0.23 inch long
~176 210-0774-00 9 EYELET, 0.152 OD x 0.245 inch long
-177 =179-1825~-00 1 WIRING HARNESS, vertical signal
~--- ee ~ wiring harness includes:
131-0707-00 2 CONNECTOR, terminal
131-0708-00 2 CONNECTOR, terminal
352-0162-09 1 HOLDER, terminal connector, 4 wire (white)
210-0775-~00 2 EYELET, 0.126 OD x 0.23 inch long
210-0774-00 2 EYELET, 0.245 OD x 0.245 inch long
179-1826-00 1 WIRING HARNESS, sweepgate
were - wiring harness includes:
131-0707~00 8 CONNECTOR, terminal
131-0708-00 8 CONNECTOR, terminal
352-0166-03 2 HOLDER, terminal connector, 8 wire (orange)
179-1828-00 1 WIRING HARNESS, reset
e-store ~ wiring harness includes:
131-0707-00 2 CONNECTOR, terminal
131-0708-00 2 CONNECTOR, terminal
352-0169-05 1 HOLDER, terminal, holder, 2 wire (green)
352-0169~09 1 HOLDER, terminal holder, 2 wire (white)
-178 175-0825-00 ft WIRE, electrical, 2 wire ribbon, 22 inches
~179 =175-0826-00 ft WIRE, electrical, 3 wire ribbon, 80 inches
-180 175-0827-00 ft WIRE, electrical, 4 wire ribbon, 21 inches
REV. JAN 1974
7-14
7613
