Circuit
Description
—7613/R7613
Service
Display
Limited
Current
from
Vertical
Amplifier
+
CR531
Horizontal
signal
from
horizontal
plug-in
compartment
___».
Horizontai
Channel
Switch
CR532
Horizontal
Readout
Signal
Display
Right
Output
Horizontal
deflection
Amplifier
signal
to
right
0539,
Q551
deflection
plate
Q558,
0560
Left
Output
Horizontal
deflection
Amplifier
signal
to
left
|
0553,
0547
deflection
plate
0578,
Q580
of
CRT
of
CRT
Limit
Command
from
BEAM
FINDER
switch

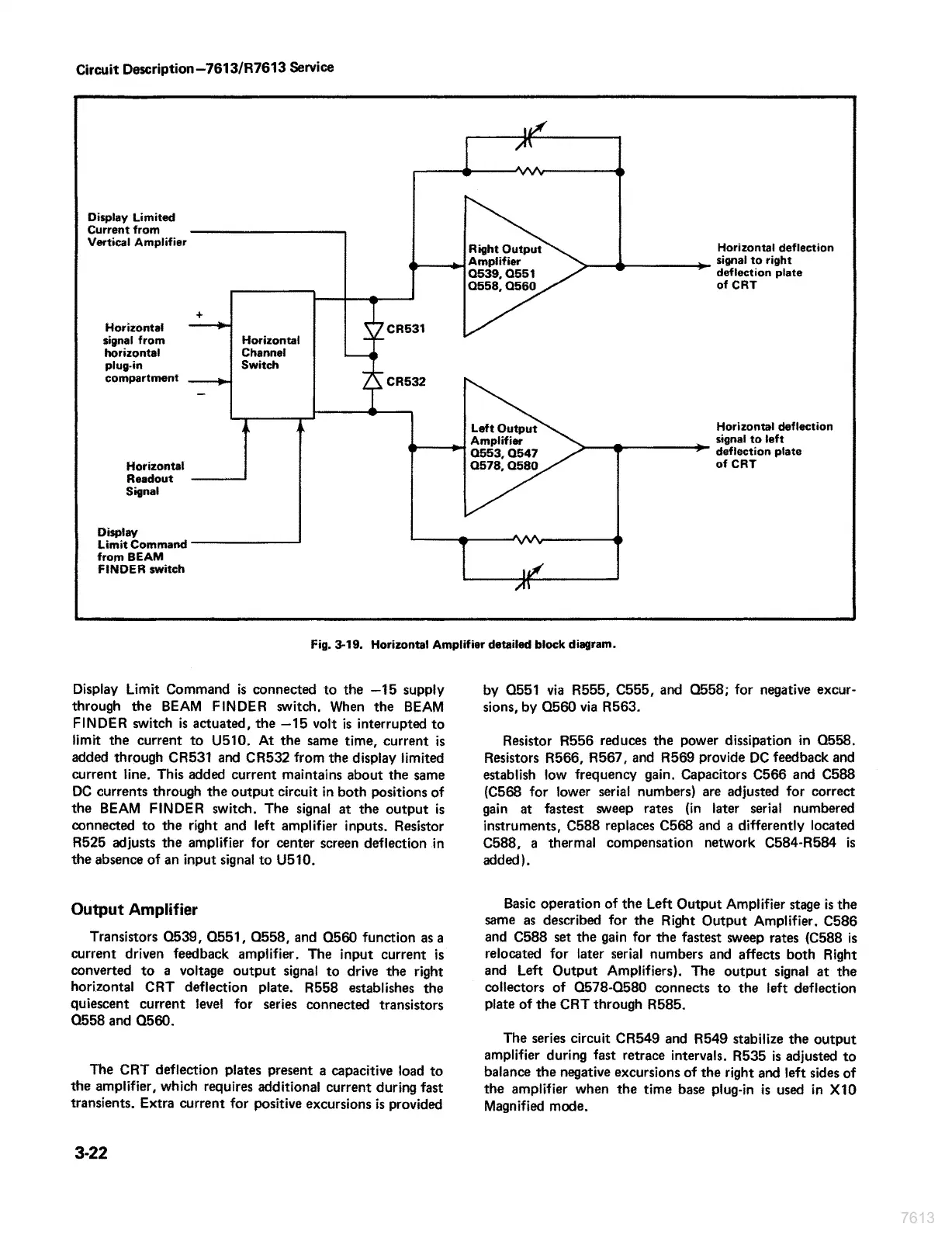

Fig.
3-19.
Horizontal
Amplifier
detailed
block
diagram.
Display
Limit
Command
is
connected
to
the
—15
supply
through
the
BEAM
FINDER
switch.
When
the
BEAM
FINDER
switch
is
actuated,
the
—15
volt
is
interrupted
to
limit
the
current
to
U510.
At
the
same
time,
current
is
added
through
CR531
and
CR532
from
the
display
limited
current
line.
This
added
current
maintains
about
the
same
DC
currents
through
the
output
circuit
in
both
positions
of
the
BEAM
FINDER
switch.
The
signal
at
the
output
is
connected
to
the
right
and
left
amplifier
inputs.
Resistor
R525
adjusts
the
amplifier
for
center
screen
deflection
in
the
absence
of
an
input
signal
to
U510.
Output
Amplifier
Transistors
0539,
0551,
0558,
and
O560
function
as
a
current
driven
feedback
amplifier.
The
input
current
is
converted
to
a
voltage
output
signal
to
drive
the
right
horizontal
CRT
deflection
plate.
R558
establishes
the
quiescent
current
level
for
series
connected
transistors
0558
and
O560.
The
CRT
deflection
plates
present
a
capacitive
load
to
the
amplifier,
which
requires
additional current
during
fast
transients.
Extra
current
for
positive
excursions
is
provided
3-22
by
0551
via
R555,
C555,
and
O558;
for
negative
excur-
sions,
by
0560
via
R563.
Resistor
R556
reduces
the
power
dissipation
in
Q558,
Resistors
R566,
R567,
and
R569
provide
DC
feedback
and
establish
low
frequency
gain.
Capacitors
C566
and
C588
(C568
for
lower
serial
numbers)
are
adjusted
for
correct
gain
at
fastest
sweep
rates
{in
later
serial
numbered
instruments,
C588
replaces
C568
and
a
differently
located
C588,
a
thermal
compensation
network
C584-R584
is
added).
Basic
operation
of
the
Left
Output
Amplifier
stage
is
the
same
as
described
for
the
Right
Output
Amplifier.
C586
and
C588
set
the
gain
for
the
fastest
sweep
rates
(C588
is
relocated
for
later
serial
numbers
and
affects
both
Right
and
Left
Output
Amplifiers).
The
output
signal
at
the
collectors
of
0578-0580
connects
to
the
left
deflection
plate
of
the
CRT
through
R585.
The
series
circuit
CR549
and
R549
stabilize
the
output
amplifier
during
fast
retrace
intervals.
R535
is
adjusted
to
balance
the
negative
excursions
of
the
right
and
left
sides
of
the
amplifier
when
the
time
base
plug-in
is
used
in
X10
Magnified
mode.
7613
