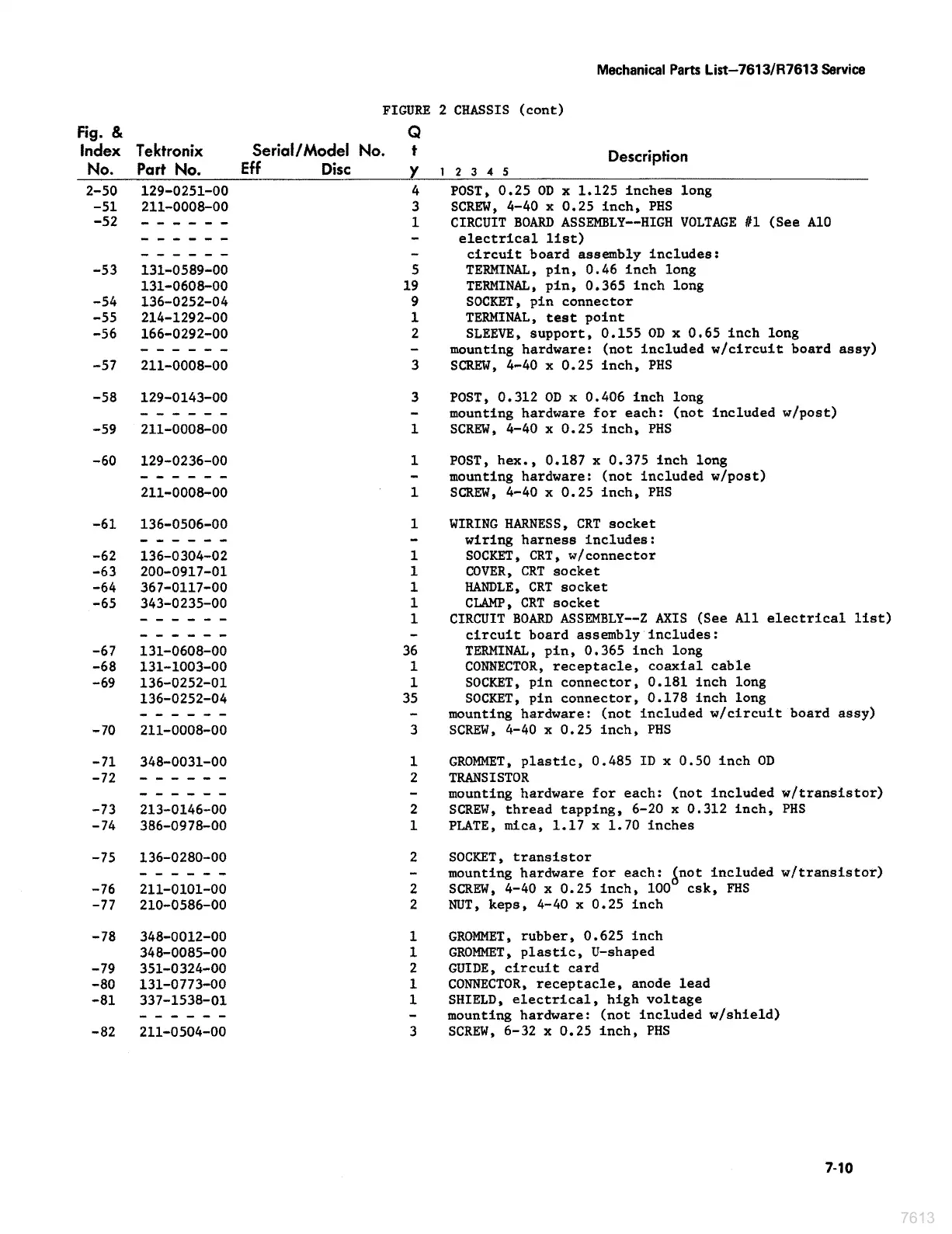

Mechanical
Parts
List—7613/R7613
Service
FIGURE
2
CHASSIS
(cont)
Fig.
&
Q
Index
Tektronix
Serial
/Model
No.
Description
No.
Part
No.
Eff
Disc
Y
12345
2-50
129-0251-00
4
POST,
0.25
OD
x
1.125
inches
long
-51
211-0008-00
3
SCREW,
4-40
x
0.25
inch,
PHS
“52
------
1
CIRCUIT
BOARD
ASSEMBLY--HIGH
VOLTAGE
#1
(See
Al10
~—m
eee
electrical
list)
“woe
ee
~
circuit
board
assembly
includes:
~53
131-0589-00
5
TERMINAL,
pin,
0.46
inch
long
131-0608-00
19
TERMINAL,
pin,
0.365
inch
long
-54
136-0252-04
9
SOCKET,
pin
connector
-55
214-1292-00
L
TERMINAL,
test
point
-56
166-0292-00
2
SLEEVE,
support,
0.155
OD
x
0.65 inch
long
oleate
~
mounting
hardware:
(not
included
w/circuit
board
assy)
-57
211-0008-00
3
SCREW,
4-40
x
0.25
inch,
PHS
-58
129~-0143-00
3
POST,
0.312
OD
x
0.406
inch
long
“wee
oe
~
mounting
hardware
for
each:
(not
included
w/post)
~59
211-0008-00
1
SCREW,
4-40
x
0.25
inch,
PHS
-60
129-0236-00
POST,
hex.,
0,187
x
0.375
inch
long
“eco
ce
-
mounting
hardware:
(not
included
w/post)
211-0008-00
1
SCREW,
4-40
x
0.25
inch,
PHS
-61
136-0506-00
1
WIRING
HARNESS,
CRT
socket
mec
re
-
wiring
harness
includes:
-62
136-0304-02
1
SOCKET,
CRT,
w/connector
~63
200-0917-01
1
COVER,
CRT
socket
-64
367-0117-00
1
HANDLE,
CRT
socket
765
343-0235-00
1
CLAMP,
CRT
socket
mere
eo
1
CIRCUIT
BOARD
ASSEMBLY--Z
AXIS
(See
All
electrical
list)
“see
oe
-
circuit
board
assembly
includes:
-67
131-0608-00
36
TERMINAL,
pin,
0.365
inch
long
-68
131-1003-00
1
CONNECTOR,
receptacle,
coaxial
cable
~69
136-0252-01
1
SOCKET,
pin
connector,
0.181
inch
long
136-0252-04
35
SOCKET,
pin
connector,
0.178
inch
long
meee
ne
~
mounting
hardware:
(not
included
w/circuit
board
assy)
~70
211-0008-00
3
SCREW,
4-40
x
0.25
inch,
PHS
~71
348-0031-00
1
GROMMET,
plastic,
0.485
ID
x
0.50
inch
OD
720
meer
eee
2
TRANSISTOR
meee
ee
~
mounting
hardware
for
each:
(not
included
w/transistor)
-73
213-0146-00
2
SCREW,
thread
tapping,
6-20
x
0.312
inch,
PHS
-74
386-0978-00
1
PLATE,
mica,
1.17
x
1.70
inches
-75
136-0280-00
2
SOCKET,
transistor
“o-oo
~
mounting
hardware
for
each:
{not
included
w/transistor)
-76
211-0101-00
2
SCREW,
4-40
x
0.25
inch,
100°
csk,
FHS
-77
=
210-0586-00
2
NUT,
keps,
4~40
x
0.25
inch
-78
348-0012-00
1
GROMMET,
rubber,
0.625
inch
348-0085-00
1
GROMMET,
plastic,
U-shaped
-79
351-0324-00
2
GUIDE,
circuit
card
-80
131-0773-00
1
CONNECTOR,
receptacle,
anode
lead
-81
337-1538-01
1
SHIELD,
electrical,
high
voltage
meee
ee
-
mounting
hardware:
(not
included
w/shield)
-82
211-0504-00
3
SCREW,
6-32
x
0.25
inch,
PHS
7-10
7613
