Tektronix 7613 User Manual

Vertical Amplifier
7613/R7613 SN B150000-up

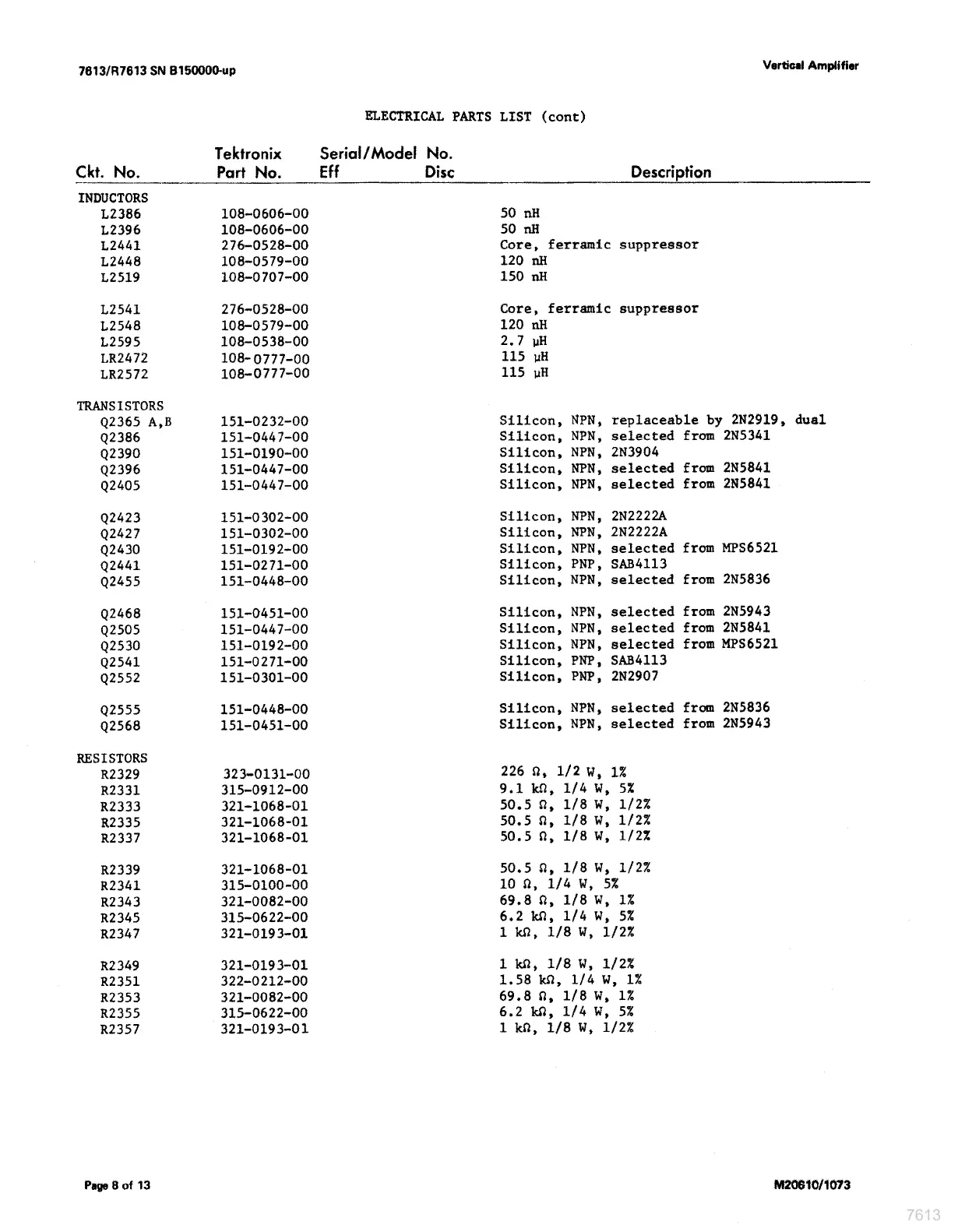

ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
INDUCTORS
L2386 108-0606-00 50 nH
L2396 108-0606-00 50 nH
L264) 276-0528-00 Core, ferramic suppressor
L2448 108~0579-00 120 nH
L2519 108-0707-00 150 nH
L2541 276~-0528-00 Core, ferramic suppressor
L2548 108~0579-00 120 nH
L2595 108-0538-00 2.7 wH
LR2472 108- 0777-00 115 yw
LR2572 108-0777-00 115 pH
TRANSISTORS
Q2365 A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q2386 151-0447-00 Silicon, NPN, selected from 2N5341
Q2390 151~-0190-00 Silicon, NPN, 2N3904
Q2396 151-0447-00 Silicon, NPN, selected from 2N5841
Q2405 151-0447-00 Silicon, NPN, selected from 2N5841
Q2423 151~0302-00 Silicon, NPN, 2N2222A
Q2427 151~0302-00 Silicon, NPN, 2N2222A
Q2430 151-0192-00 Silicon, NPN, selected from MPS6521
Q2441 151-0271-00 Silicon, PNP, SAB4113
Q2455 151-0448-00 Silicon, NPN, selected from 2N5836
Q2468 151~0451-00 Silicon, NPN, selected from 2N5943
Q2505 151-0447-00 Silicon, NPN, selected from 2N5841
Q2530 151-0192-00 Silicon, NPN, selected from MPS6521
Q2541 151-0271-00 Silicon, PNP, SAB4113
Q2552 151-0301-00 Silicon, PNP, 2N2907
Q2555 151-0448-00 Silicon, NPN, selected from 2N5836
Q2568 151-0451-00 Silicon, NPN, selected from 2N5943
RESISTORS
R2329 323+0131-00 226 2, 1/2W, 1%
R2331 315-0912-00 9.1 ka, 1/4 W, 5%
R2333 321-1068-01 50.5 9, 1/8 W, 1/22
R2335 321-1068-01 50.5 2, 1/8 W, 1/22
R2337 321-1068-01 50.5 2, 1/8 W, 1/22
R2339 321~-1068-01 50.5 2, 1/8 W, 1/2%
R2341 315-0100-00 10 2, 1/4 W, 5%
R2343 321-0082-00 69.8 9, 1/8 W, 1%
R2345 315-0622-00 6.2 kQ, 1/4 W, 5%
R2347 321-0193-01 1k2, 1/8 W, 1/2%
R2349 321+-0193-01 1k, 1/8 W, 1/22
R2351 322-0212-00 1.58 kn, 1/4 W, 1%
R2353 321-0082-00 69.8 2, 1/8 W, 1%
R2355 315-0622-00 6.2 kQ, 1/4 W, 5%
R2357 321-0193-01 1 kh, 1/8 W, 1/2%
Page 8 of 13
M20610/1073
7613
