Tektronix 7613 User Manual

Vertical Amplifier
7613/R7613 SN B150000-up

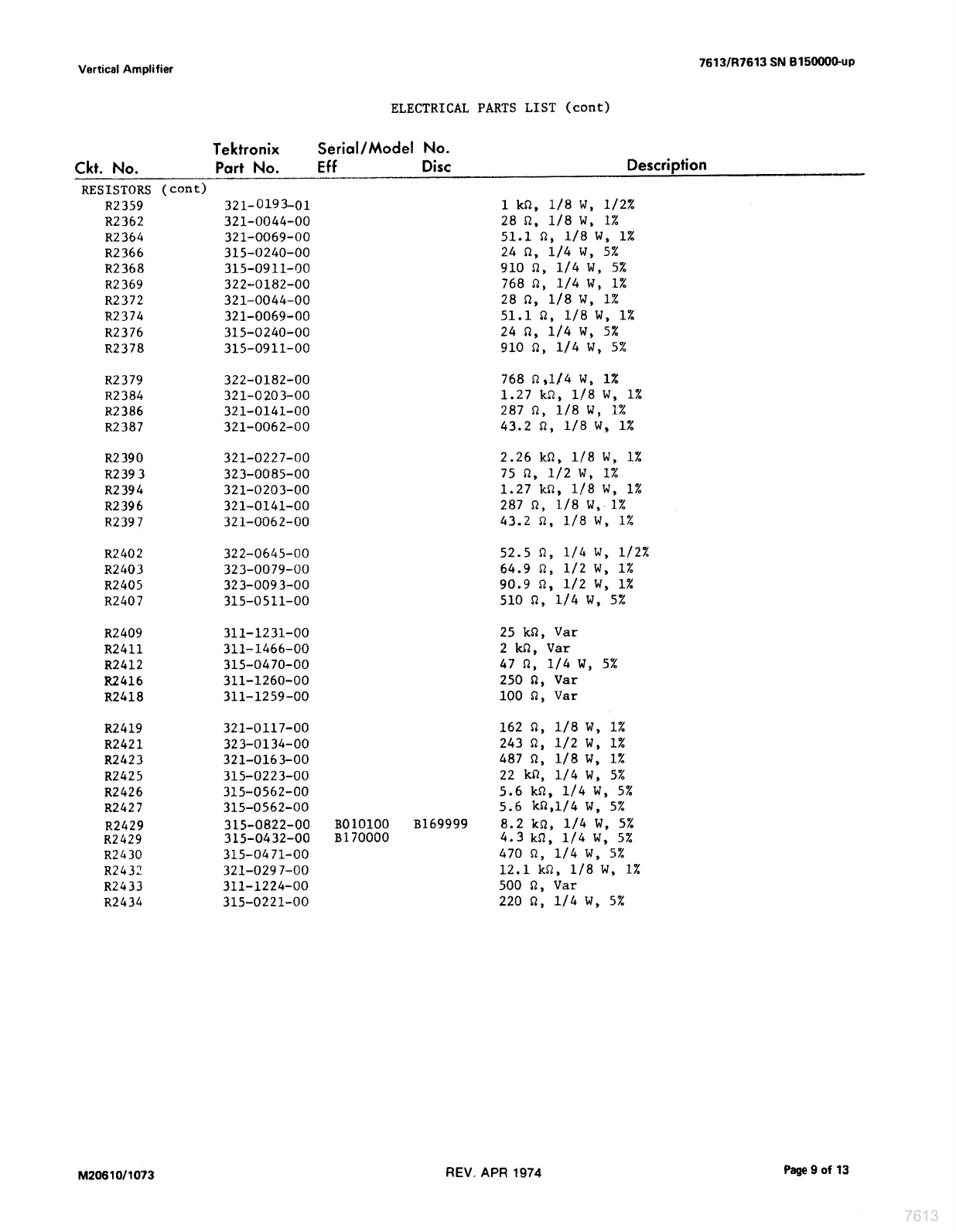

ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt.
No.
Part
No.
Eff
Disc
Description
RESISTORS (cont)
R2359 321~0193-01 1 kQ, 1/8 W, 1/2%
R2362 321-0044-00 282, 1/8 W, 1%
R2364 321-0069-00 51.1 2, 1/8 W, 1%
R2366 315~-0240-00 24 2, 1/4 W, 5%
R2368 315-0911-00 910 2, 1/4 W, 5%
R2369 322~0182-00 768 2, 1/4 Ww, 1%
R2372 321-0044-00 282, 1/8 W, 1%
R2374 321-0069-00 51.1 2, 1/8 W, 1%
R2376 315-0240-00 24 2, 1/4 W, 5%
R2378 315-0911-00 910 2, 1/4 W, 5%
R2379 322-0182-00 768 2451/4 W, 1%
R2384 321-0 203-00 1.27 kQ, 1/8 W, 1%
R2386 321-0141-00 287 2, 1/8 W, 1%
R2387 321~-0062-00 43.2 Q, 1/8 W, 1%
R2390 321-0227-00 2.26 k2, 1/8 W, 1%
R2393 323-0085-00 75 2, 1/2 W, 1%
R2394 321-0203-00 1.27 kQ, 1/8 W, 1%
R2396 321-0141-00 287 Q, 1/8 W,-1%
R2397 321~0062-00 43.2 2, 1/8 W, 1%
R2402 322-0645-00 52.5 2, 1/4 W, 1/2%
R2403 323-0079-00 64.9 2, 1/2 W, 1%
R2405 323-009 3-00 90.9 2, 1/2 W, 1%
R2407 315-0511-00 510 2, 1/4 W, 5%
R2409 311-1231-00 25 kQ, Var
R2411 311~1466-00 2 kn, Var
R2412 315-0470-00 47.2, 1/4 W, 5%
R2416 311-1260-00 250 &, Var
R2418 311-1259-00 100 2, Var
R2419 321~0117-00 162 9, 1/8 W, 1%
R2421 323-0134-00 243 2, 1/2 W, 1%
R2423 321-0163-00 487 Q, 1/8 W, 12
R2425 315-0223-00 22 kM, 1/4 W, 5%
R2426 315-0562-00 5.6 kQ, 1/4 W, 5%
R2427 315-0562-00 5.6 kQ,1/4 W, 5%
R2429 315-0822-00 B010100 B169999 8.2 k2, 1/4 W, 5%
R2429 315-0432-00 B1i70000 4.3 kN, 1/4 W, 5%
R2430 315-0471-00 470 9, 1/4 W, 52
R2432 321-0297-00 12.1 kn, 1/8 W, 1%
R2433 311-1224-00 500 2, Var
R24634 315-0221-00 220 2, 1/4 W, 5%
M206 10/1073
REV. APR 1974
Page 9 of 13
7613
