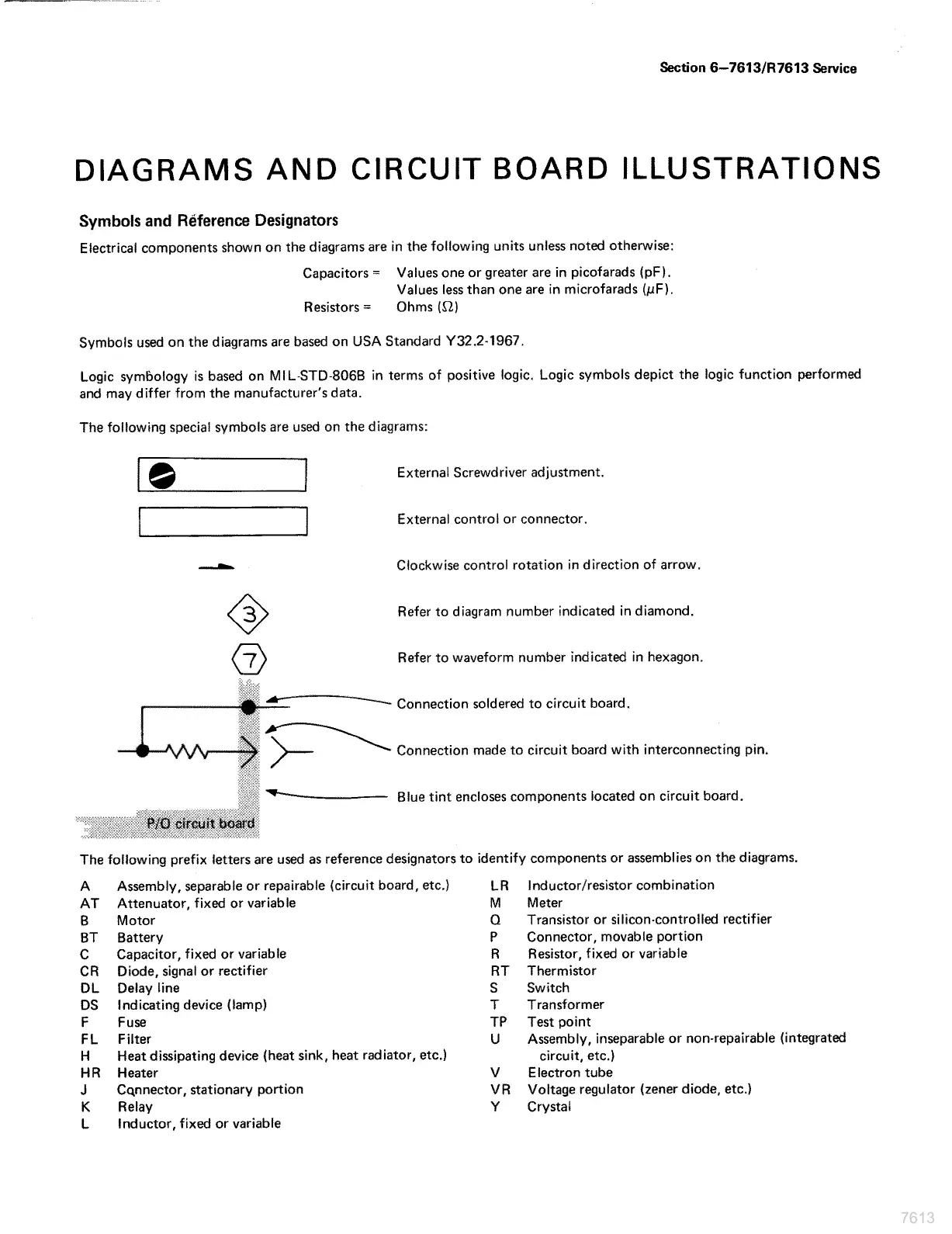

Section 6—-7613/R7613 Service
DIAGRAMS AND CIRCUIT BOARD ILLUSTRATIONS
Symbols and Reference Designators
Electrical
components
shown
on
the
diagrams
are
in
the
following
units
unless
noted
otherwise:
Capacitors = Values one or greater are in picofarads (pF}.
Values less than one are in microfarads (uF).
Resistors = Ohms (Q)
Symbols used on the diagrams are based on USA Standard Y32.2-1967.
Logic symbology is based on MIL-STD-8068 in terms of positive logic. Logic symbols depict the logic function performed
and may differ from the manufacturer's data.
The following special symbols are used on the diagrams:
& External Screwdriver adjustment.
External control or connector.
Clockwise control rotation in direction of arrow,
eel.
ey Refer to diagram number indicated in diamond,
Refer to waveform number indicated in hexagon.
Connection soldered to circuit board.
—
Connection
made
to
circuit
board
with
interconnecting
pin.
+. Blue tint encloses components located on circuit board.
The following prefix letters are used as reference designators to identify components or assemblies on the diagrams.
A Assembly, separable or repairable (circuit board, etc.) LR Inductor/resistor combination
AT Attenuator, fixed or variable M Meter
B Motor Q Transistor or silicon-controlled rectifier
BT Battery P Connector, movable portion
Cc Capacitor, fixed or variable R Resistor, fixed or variable
CR Diode, signal or rectifier RT Thermistor
DL Delay line s Switch
DS Indicating device (lamp) T Transformer
F Fuse TP = Test point
FL Filter U Assembly, inseparable or non-repairable (integrated
H Heat dissipating device (heat sink, heat radiator, etc.) circuit, etc.)
HR Heater Vv Electron tube
J Cannector, stationary portion VR Voltage regulator (zener diode, etc.)
K Relay Y Crystal
L Inductor, fixed or variable
