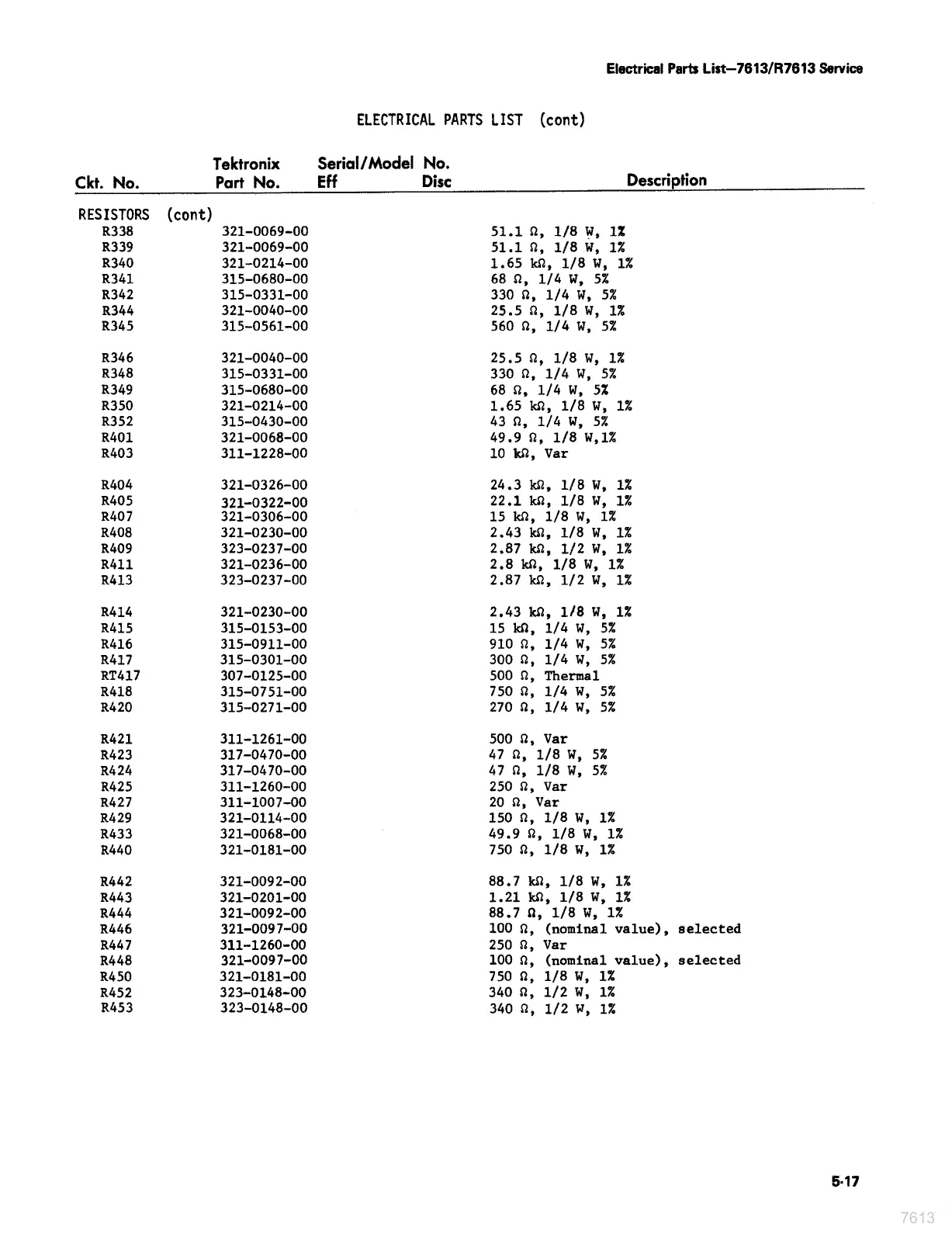

Electrical Parts List—7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
RESISTORS (cont)
R338 321-0069-00 51.1 2, 1/8 W, 1%
R339 321-0069-00 51.19, 1/8 W, 1%
R340 321-0214-00 1.65 kQ, 1/8 W, 1%
R341 315-0680-00 68 9, 1/4 W, 52%
R342 315-0331-00 330 2, 1/4 W, 5%
R344 321-0040-00 25.5 2, 1/8 W, 1%
R345 315-0561-00 560 2, 1/4 W, 5%
R346 321-0040-00 25.5 2, 1/8 W, 12%
R348 315-0331-00 330 2, 1/4 W, 5%
R349 315-0680-00 68 2, 1/4 W, 5%
R350 321-0214-00 1.65 kn, 1/8 W, 1%
R352 315-0430-00 43.2, 1/4 W, 5%
R401 321-0068-00 49.9 2, 1/8 W,1%
R403 311-1228-00 10 kk, Var
R404 321-0326-00 24.3 2, 1/8 W, 1%
R405 321-0322-00 22.1 kQ, 1/8 W, 1%
R407 321-0306-00 15 kQ, 1/8 W, 1%
R408 321-0230-00 2.43 kQ, 1/8 W, 1%
R409 323-0237-00 2.87 k2, 1/2 W, 1%
R411 321-0236-00 2.8 kQ, 1/8 W, 1%
R413 323-0237-~00 2.87 k2, 1/2 W, 1%
R414 321-0230~-00 2.43 kQ, 1/8 W, 1%
R415 315-0153-00 15 kh, 1/4 W, 5%
R416 315-0911-00 910 2, 1/4 W, 52%
R417 315-0301-00 300 2, 1/4 W, 5%
RT417 307-0125-00 500 Q, Thermal
R418 315-0751-00 750 Q, 1/4 W, 52%
R420 315-0271-00 270 2, 1/4 W, 5%
R421 311-1261-00 500 Q, Var
R423 317-0470-00 47 2, 1/8 W, 5%
R424 317-0470-00 47 2, 1/8 W, 5%
R425 311-1260-00 250 &, Var
R427 311-1007~-00 20 Q, Var
R429 321-0114-00 150 2, 1/8 W, 12%
R433 321-0068-00 49.9 2, 1/8 W, 12%
R440 321-0181-00 750 2, 1/8 W, 1%
R442 321-0092-00 88.7 k2, 1/8 W, 1%
R443 321-0201~00 1.21 k2, 1/8 W, 12
R444 321-0092~-00 88.7 2, 1/8 W, 1%
R446 321-0097~00 100 &, (nominal value), selected
R447 311-1260-00 250 2, Var
R448 321-0097-00 100 9, (mominal value), selected
R450 321-0181-00 750 9, 1/8 W, 1%
R452 323-0148-00 340 2, 1/2 W, 1%
R453 323-0148-00 340 2, 1/2 W, 1%
