7613/R7613 Service

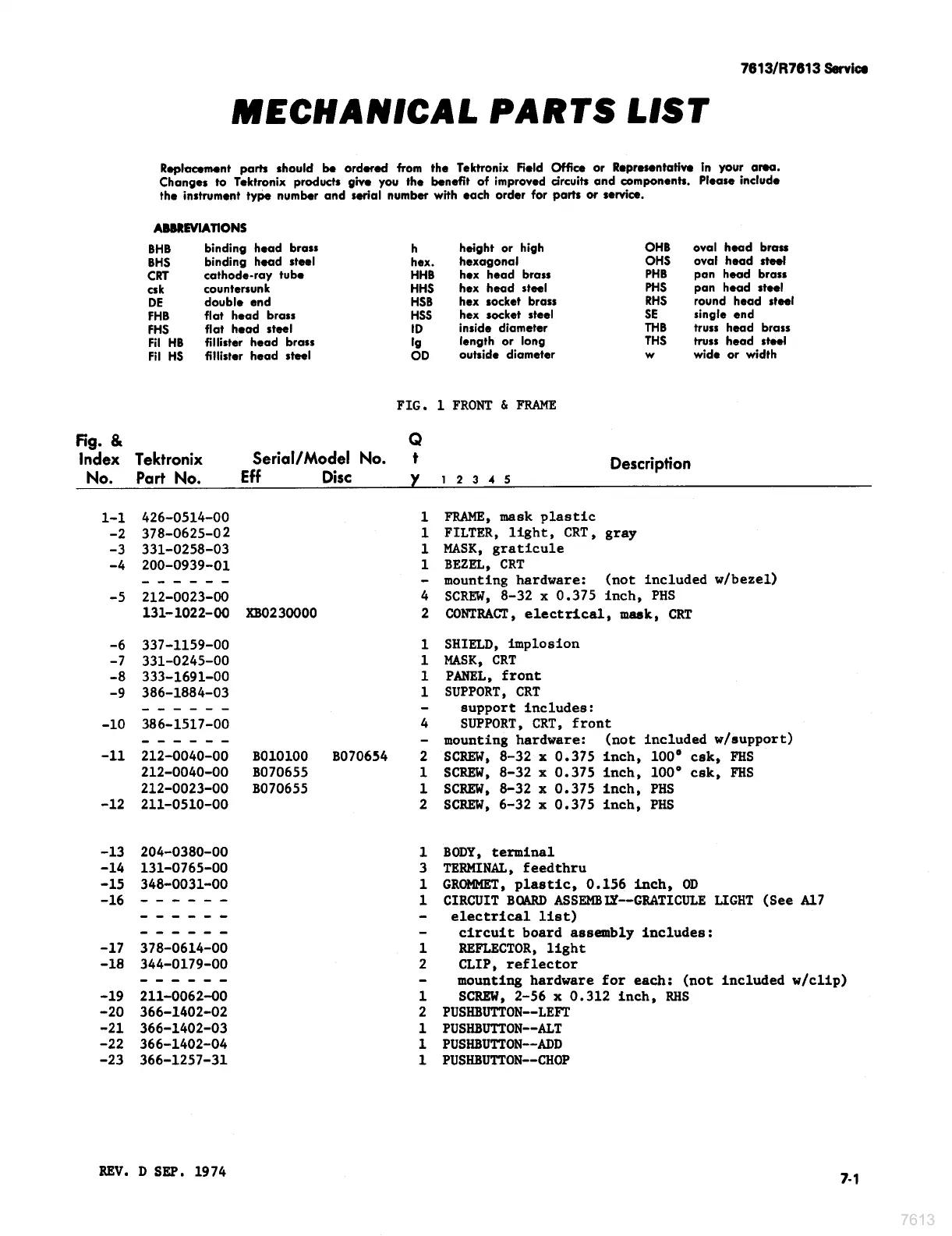

MECHANICAL PARTS LIST
Replacement parts should be ordered from the Tektronix Field Office or Representative in your area.
Changes to Tektronix products give you the benefit of improved circuits and components. Please include
the instrument type number and serial number with each order for parts or service.
ABBREVIATIONS
BHB binding head brass h height or high OHB oval head brass
BHS binding head steel hex. hexagonal OHS oval head steel
CRT cathode-ray tube HHB hex head brass PHB pan head brass
esk countersunk HHS hex head steel PHS pan head steel
DE double end HSB hex socket brass RHS round head steel
FHB flat head brass HSS hex socket steel SE single end
FHS flat head steel ID inside diameter THB truss head brass
Fil HB fillister head brass Ig length or long THS truss head steel
Fil HS __fillister head steel oD outside diameter w wide or width
FIG. 1 FRONT & FRAME
Fig. & Q
Index Tektronix Serial/Model No. ¢ Description
No. Part No. Eff Disc Y 12345
1-1 426-0514-00 1 FRAME, mask plastic
-2 378-0625-02 1 FILTER, light, CRT, gray
-3 331-0258-03 1 MASK, graticule
-4 200-0939-01 1 BEZEL, CRT
------ - mounting hardware: (not included w/bezel)
-5 212-0023-00 4 SCREW, 8-32 x 0.375 inch, PHS
131-1022-00 XB0230000 2 CONTRACT, electrical, mask, CRT
-6 337-1159-00 1 SHIELD, implosion
-7 331-0245-00 1 MASK, CRT
-8 333-1691-00 1 PANEL, front
-9 386-1884-03 1 SUPPORT, CRT
ee --- = - support includes:
-10 386-1517-00 4 SUPPORT, CRT, front
------ - mounting hardware: (not included w/support)
“11 212-0040-00 BO10100 38070654 2 SCREW, 8-32 x 0.375 inch, 100° csk, FHS
212-0040-00 BO070655 1 SCREW, 8-32 x 0.375 inch, 100° csk, FHS
212-0023-00 3070655 1 SCREW, 8-32 x 0.375 inch, PHS
-12 211-0510-00 2 SCREW, 6-32 x 0.375 inch, PHS
-13 204-0380-00 1 BODY, terminal
-14 131-0765-00 3 TERMINAL, feedthru
-15 348-0031-00 1 GROMMET, plastic, 0.156 inch, OD
“16 ------ 1 CIRCUIT BOARD ASSEMBLY--GRATICULE LIGHT (See Al7
eee er ce - electrical list)
cer cl ce - circuit board assembly includes:
-17 378-0614-00 1 REFLECTOR, light
-18 344-0179-00 2 CLIP, reflector
coc cce - mounting hardware for each: (not included w/clip)
“19 211-0062-00 1 SCREW, 2-56 x 0.312 inch, RHS
~20 366-1402-02 2 PUSHBUTTON--LEFT
-21 366-1402-03 1 PUSHBUTTON--ALT
-22 366-1402-04 1 PUSHBUTTON--ADD
-23 366-1257-31 1 PUSHBUTTON--CHOP
REV. D SEP. 1974
