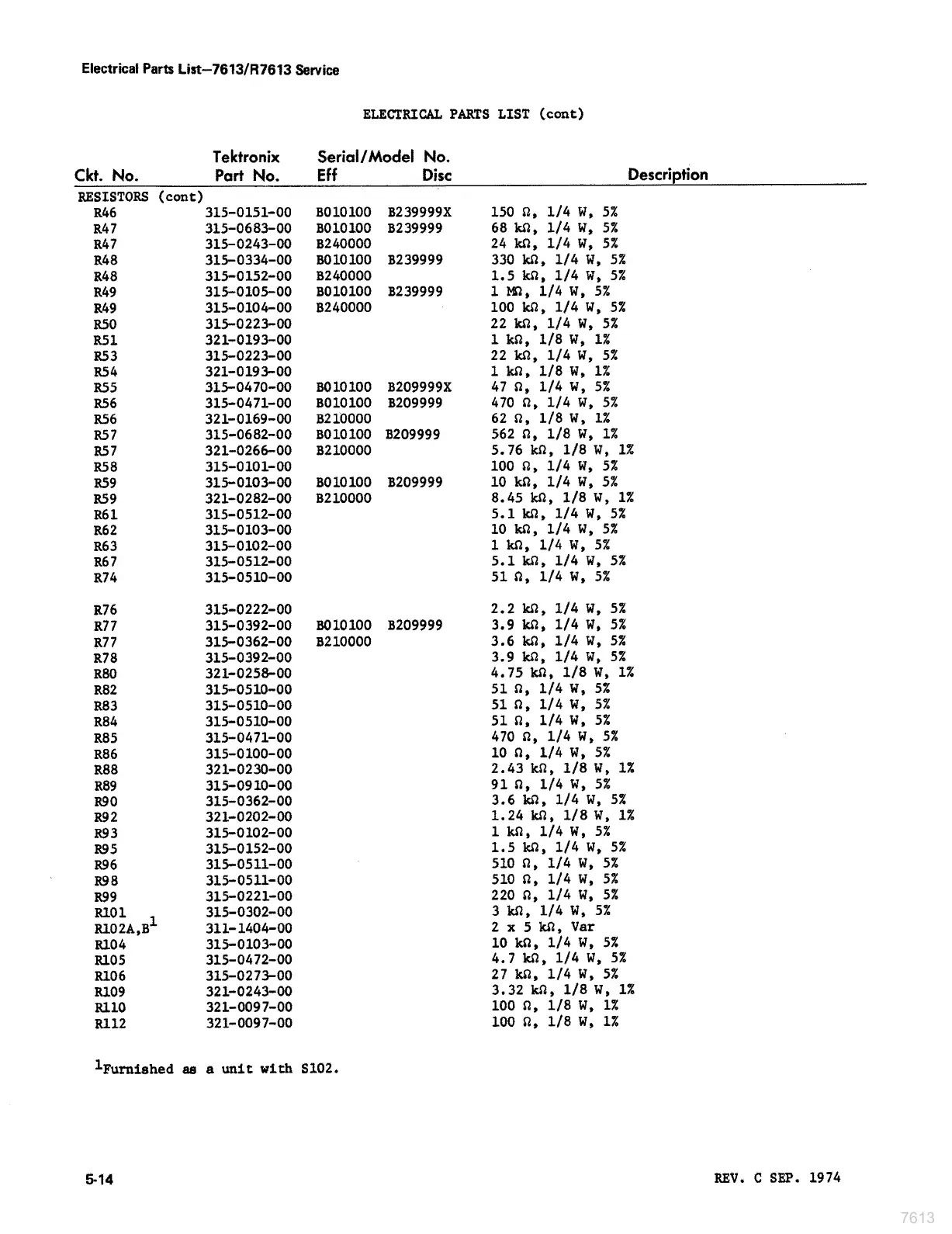

Electrical Parts List-7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
RESISTORS (cont) ,
R46 315-0151-00 BO10100 8239999X 150 2, 1/4 W, 5%
R47 315-0683-00 BO10100 B239999 68 kn, 1/4 W, 5%
R47 315-0243-00 B240000 24 kQ, 1/4 W, 5%
R48 315-0334-00 BO010100 8239999 330 kh, 1/4 W, 5%
R48 315-0152~-00 8240000 1.5 kh, 1/4 W, 5%
R49 315-0105-00 BO10100 8239999 1m, 1/4 Ww, 5%
R49 315~0104-00 B240000 100 k2, 1/4 W, 5%
R50 315-0223-00 22 kQ, 1/4 W, 5%
R51 321-0193-00 1k2, 1/8 W, 1%
R53 315-0223-00 22 kQ, 1/4 W, 5%
R54 321-0193-00 1kQ, 1/8 W, 1%
R55 315-0470-00 BO10100 8B209999xX 47 9, 1/4 W, 5%
R56 315-0471-00 BO10100 8209999 470 2, 1/4 W, 5%
R56 321-0169-00 B210000 62 2, 1/8 W, 1%
R57 315-0682-00 B8010100 8209999 562 2, 1/8 W, 1%
R57 321-0266-00 8210000 5.76 kh, 1/8 W, 1%
R58 315-0101-00 100 9, 1/4 W, 5%
R59 315-0103-00 BO10100 8209999 10 kQ, 1/4 W, 52%
R59 321-0282-00 B210000 8.45 kQ, 1/8 W, 1%
R61 315-0512-00 5.1 kQ, 1/4 W, 5%
R62 315-0103-00 10 kQ, 1/4 W, 5%
R63 315~0102-00 1 ka, 1/4 W, 5%
R67 315~0512-00 5.1 k&, 1/4 W, 5%
R74 315~0510-00 519, 1/4 W, 5%
R76 315-0222-00 2.2 kM, 1/4 W, 5%
R77 315-0392-00 BO10100 B209999 3.9 kQ, 1/4 W, 5%
R77 315-0362-00 B210000 3.6 kQ, 1/4 W, 5%
R78 315-0392-00 3.9 kQ, 1/4 W, 5%
R&0 321-0258-00 4.75 ka, 1/8 W, 1%
R82 315-0510-00 519, 1/4 W, 5%
R83 315~0510-00 512, 1/4 W, 5%
R84 315~0510-00 512, 1/4 W, 5%
R85 315~0471-00 470 Q, 1/4 W, 5%
R86 315-0100-00 10 2, 1/4 W, 5%
R88 321-0230-00 2.43 ka, 1/8 W, 1%
R89 315-09 10-00 919, 1/4 W, 5%
R90 315-0362-00 3.6 kQ, 1/4 W, 5%
R92 321-0202-00 1.24 k2, 1/8 W, 1%
R93 315~0102-00 1kQ, 1/4 W, 5%
R95 315~0152-00 1.5 kM, 1/4 W, 5%
R96 315~-0511-00 510 2, 1/4 W, 5%
R98 315-0511-00 510 2, 1/4 W, 5%
R99 315-0221-00 220 2, 1/4 W, 5%
R101 l 315-0302-00 3 kn, 1/4 W, 5%
R102A,8 311~1404-00 2x 5 kf, Var
R104 315-0103-00 10 kn, 1/4 W, 5%
R105 315~0472-00 4.7 k®, 1/4 W, 5%
R106 315~-0273-00 27 kQ, 1/4 W, 5%
R109 321-0243-00 3.32 kh, 1/8 W, 1%
R110 321-009 7-00 100 2, 1/8 W, 1%
R112 321-009 7-00 100 2, 1/8 W, 1%
lrurnished as a unit with $102.
5-14
REV. C SEP. 1974
