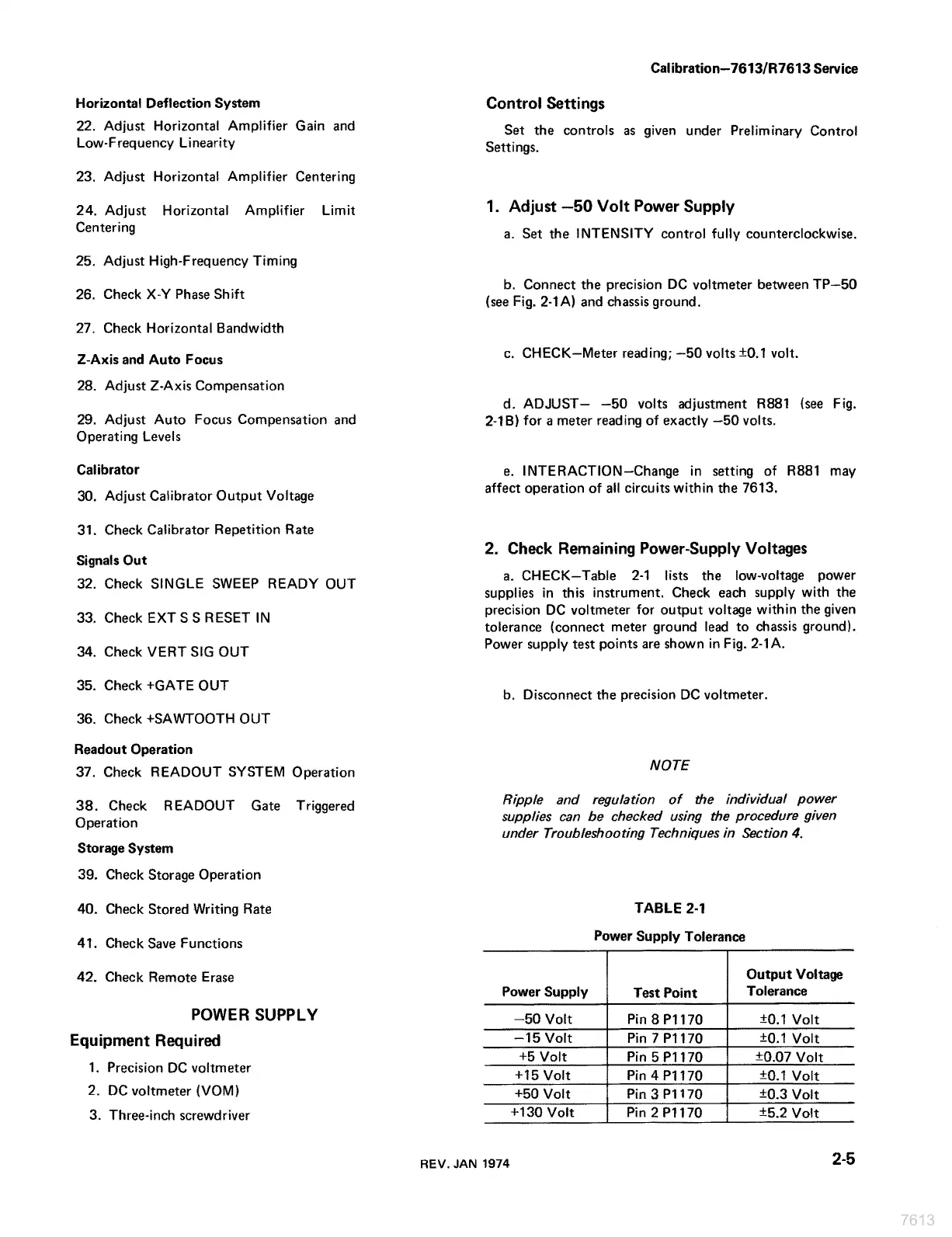

Horizontal Deflection System
22. Adjust Horizontal Amplifier Gain and
Low-Frequency Linearity
23. Adjust Horizontal Amplifier Centering
24. Adjust Horizontal Amplifier Limit
Centering
25. Adjust High-Frequency Timing
26. Check X-Y Phase Shift
27, Check Horizontal Bandwidth
Z-Axis and Auto Focus
28. Adjust Z-Axis Compensation
29. Adjust Auto Focus Compensation and
Operating Levels
Calibrator
30. Adjust Calibrator Output Voltage
31. Check Calibrator Repetition Rate
Signals Out
32. Check SINGLE SWEEP READY OUT
33. Check EXT SS RESET IN
34, Check VERT SIG OUT
35. Check +GATE OUT
36. Check +SAWTOOTH OUT
Readout Operation
37. Check READOUT SYSTEM Operation
38. Check READOUT Gate Triggered
Operation
Storage System
39. Check Storage Operation
40. Check Stored Writing Rate
41. Check Save Functions
42. Check Remote Erase
POWER SUPPLY
Equipment Required
1. Precision DC voltmeter
2. DC voltmeter (VOM)
3. Three-inch screwdriver
Calibration—7613/R7613 Service
Control Settings
Set the controls as given under Preliminary Control
Settings.
1. Adjust —50 Volt Power Supply
a. Set the INTENSITY control fully counterclockwise.
b. Connect the precision DC voltmeter between TP—50
{see Fig. 2-1A) and chassis ground.
c, CHECK—Meter reading; —50 volts 0.1 volt.
d. ADJUST— -—50 volts adjustment R881 (see Fig.
2-1B) for a meter reading of exactly —50 volts.
e. INTERACTION—Change in setting of R881 may
affect operation of all circuits within the 7613.
2. Check Remaining Power-Supply Voltages
a. CHECK—Table 2-1 lists the low-voltage power
supplies in this instrument. Check each supply with the
precision DC voltmeter for output voltage within the given
tolerance (connect meter ground lead to chassis ground).
Power supply test points are shown in Fig. 2-1A.
b. Disconnect the precision DC voltmeter.
NOTE
Ripple and regulation of the individual power
supplies can be checked using the procedure given
under Troubleshooting Techniques in Section 4.
TABLE 2-1
Power Supply Tolerance
Output Voltage
Power Supply Test Point Tolerance
—50 Volt Pin 8 P1170 0.1 Volt
—15 Volt Pin 7 P1170 +0.1 Volt
+5 Volt Pin 5 P1170 +0.07 Volt
+15 Volt Pin 4 P1170 +0.1 Volt
+50 Voit Pin 3 P1170 +0.3 Volt
+130 Volt Pin 2 P1170 +5.2 Volt
REV.
JAN
1974
2-5
