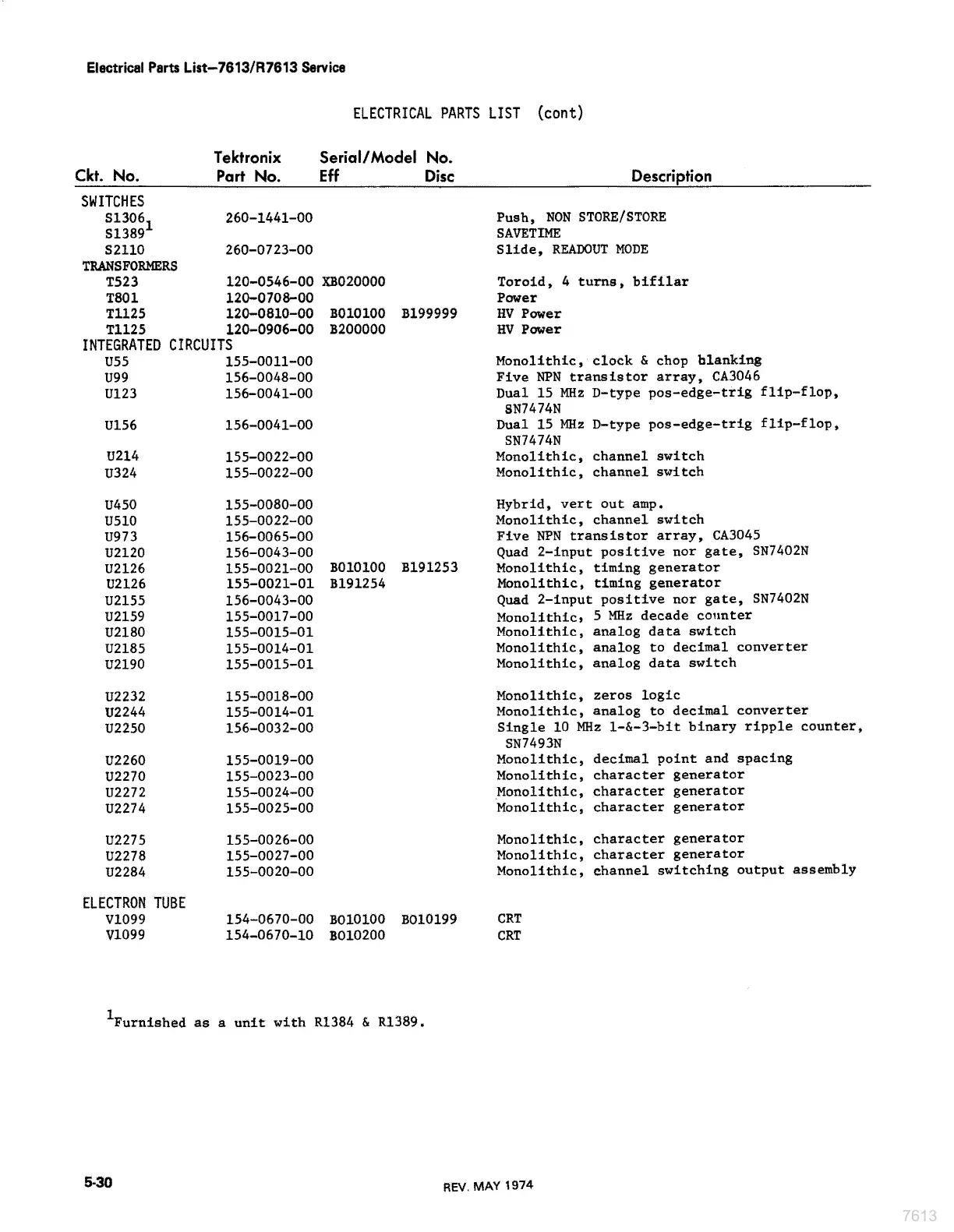

Electrical Parts List-7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
leurnished as a unit with R1384 & R1389.
5-30
REV. MAY 1974
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
SWITCHES
51306, 260-1441-00 Push, NON STORE/STORE
$1389 SAVETIME
§2110 260-07 23-00 Slide, READOUT MODE
TRANSFORMERS
7523 120-0546-00 X5020000 Toroid, 4 turns, bifilar
T801 120-0708-00 Power
T1125 120-0810-00 B010100 B199999 HV Power
T1125 120-0906-00 38200000 HV Power
INTEGRATED CIRCUITS
U55 155-0011-00 Monolithic, clock & chop blanking
u99 156-0048-00 Five NPN transistor array, CA3046
U123 156-0041-00 Dual 15 MHz D-type pos-edge-trig flip-flop,
SN7474N
0156 156-0041-00 Dual 15 MHz D-type pos-edge-trig flip-flop,
SN7474N
U214 155-0022-00 Monolithic, channel switch
U324 155-0022-00 Monolithic, channel switch
u450 155-0080-00 Hybrid, vert out amp.
u510 155-0022-00 Monolithic, channel switch
u973 156-0065-00 Five NPN transistor array, CA3045
02120 156-0043-00 Quad 2~input positive nor gate, SN7402N
U2126 155-0021-00 B010100 8191253 Monolithic, timing generator
U2126 155-0021-01 B191254 Monolithic, timing generator
02155 156-0043-00 Quad 2-input positive nor gate, SN7402N
U2159 155-0017-00 Monolithic, 5 MHz decade counter
U2180 155-0015-01 Monolithic, analog data switch
U2185 155-0014-01 Monolithic, analog to decimal converter
U2190 155-0015-01 Monolithic, analog data switch
U2232 155-0018-00 Monolithic, zeros logic
U2244 155-0014-01 Monolithic, analog to decimal converter
U2250 156-0032-00 Single 10 MHz 1~&-3-bit binary ripple counter,
SN7493N
U2260 155-0019-00 Monolithic, decimal point and spacing
U2270 155-0023-00 Monolithic, character generator
U2272 155-0024-00 Monolithic, character generator
U2274 155-0025-00 Monolithic, character generator
U2275 155-0026-00 Monolithic, character generator
02278 155-0027-00 Monolithic, character generator
U2284
155-0020-00
Monolithic,
channel
switching
output
assembly
ELECTRON TUBE
V1099 154-0670-00 BO10100 8BO10199 CRT
y1099 154-0670-10 BO10200 CRT
7613
