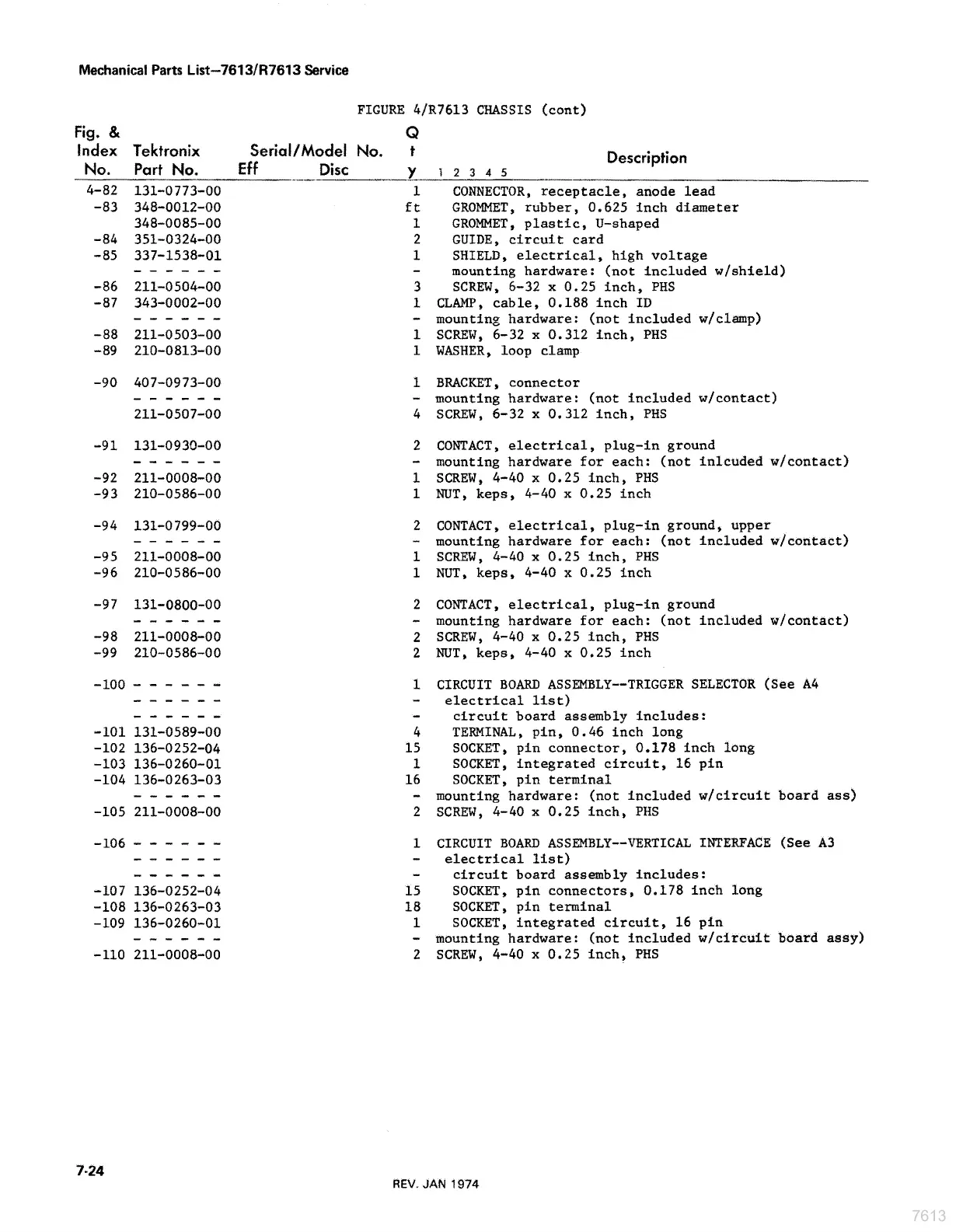

Mechanical Parts List~7613/R7613 Service
FIGURE 4/R7613 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial /Model No. ft Description
No. Part No. Eff Dise Y 12345
4-82 131-0773-00 1 CONNECTOR, receptacle, anode lead
-83 348-0012-00 ft GROMMET, rubber, 0.625 inch diameter
348~-0085~00 1 GROMMET, plastic, U-shaped
~84 351-0324-00 2 GUIDE, circuit card
-~85 337-1538-01 1 SHIELD, electrical, high voltage
woe cee ~ mounting hardware: (not included w/shield)
-~86 211-0504~-00 3 SCREW, 6-32 x 0.25 inch, PHS
-87 343-0002~00 1 CLAMP, cable, 0.188 inch ID
----- ~ mounting hardware: (not included w/clamp)
~88 211~-0503-00 1 SCREW, 6-32 x 0.312 inch, PHS
~89 210~-0813~-00 1 WASHER, loop clamp
~90 407-0973~00 BRACKET, connector
-c ew ome - mounting hardware: (not included w/contact)
211-0507~00 4 SCREW, 6-32 x 0.312 inch, PHS
+91 131~0930-00 2 CONTACT, electrical, plug-in ground
ct eo ee ~ mounting hardware for each: (not inleuded w/contact)
~92 211~-0008~-00 1 SCREW, 4-40 x 0.25 inch, PHS
-93 210-0586-00 1 WUT, keps, 4-40 x 0.25 inch
-94 131-0799-00 2 CONTACT, electrical, plug-in ground, upper
-- eo ee - mounting hardware for each: (not included w/contact)
-95 211~0008-00 1 SCREW, 4-40 x 0.25 inch, PHS
-96 210-0586~00 1 NUT, keps, 4-40 x 0.25 inch
~97 131~-0800-00 2 CONTACT, electrical, plug-in ground
------ - mounting hardware for each: (not included w/contact)
-98 211-0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
-99 210~-0586-00 2 NUT, keps, 4-40 x 0.25 inch
-~100 -----=-«< 1 CIRCUIT BOARD ASSEMBLY--TRIGGER SELECTOR (See A4
--— om = ~ electrical list)
- seo - circuit board assembly includes:
~101 131~-0589~00 4 TERMINAL, pin, 0.46 inch long
-102 136-0252-04 15 SOCKET, pin connector, 0.178 inch long
~103 136-0260~01 1 SOCKET, integrated circuit, 16 pin
-104 136-0263-03 16 SOCKET, pin terminal
-- oe ee ~ mounting hardware: (not included w/circuit board ass)
~105 211-0008-00 2 SCREW, 4~40 x 0.25 inch, PHS
~106 ---- = = 1 CIRCUIT BOARD ASSEMBLY--VERTICAL INTERFACE (See A3
- ee oe ~ electrical list)
- ee ~ eircuit board assembly includes:
+107 136~0252~04 15 SOCKET, pin connectors, 0.178 inch long
-108 136-0263-03 18 SOCKET, pin terminal
-109 136-0260-01 1 SOCKET, integrated circuit, 16 pin
--- oe ~ wthounting hardware: (not included w/circuit board assy)
~110 211~0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
7-24
REV. JAN 1974
