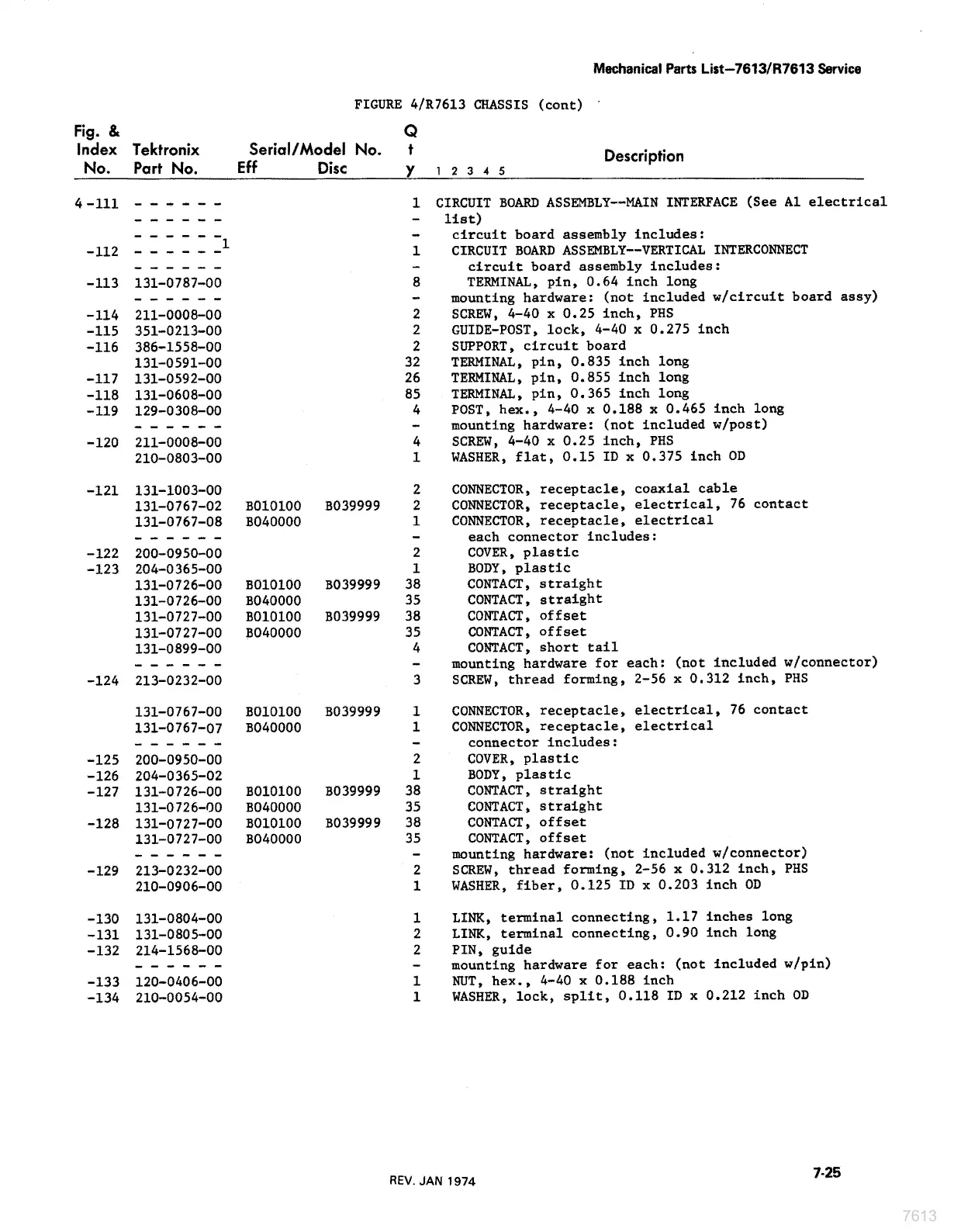

Mechanical Parts List—7613/R7613 Service
FIGURE 4/R7613 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial/Model No. t + ati
No. Part No. Eff Disc Y 12345 Description
4-lll -+--+-+- 1 CIRCUIT BOARD ASSEMBLY--MAIN INTERFACE (See Al electrical
“ee oe - list)
moro ee - circuit board assembly includes:
~112 --+---- 1 CIRCUIT BOARD ASSEMBLY~~VERTICAL INTERCONNECT
“sete - eircuit board assembly includes:
-113 131-0787-00 8 TERMINAL, pin, 0.64 inch long
“so
oe
-
mounting
hardware:
(not
included
w/circuit
board
assy)
-114 211-0008-00 2 SCREW, 4-40 x 0.25 inch, PHS
-115 351-0213-00 2 GUIDE-POST, lock, 4-40 x 0.275 inch
-116 386-1558-00 2 SUPPORT, circuit board
131-0591-00 32 TERMINAL, pin, 0.835 inch long
-117 131-0592~00 26 TERMINAL, pin, 0.855 inch long
-118 131-0608-00 85 TERMINAL, pin, 0.365 inch long
~119 129-0308-00 4 POST, hex., 4~40 x 0.188 x 0.465 inch long
“sew = ~ mounting hardware: (not included w/post)
-120 211-0008-00 4 SCREW, 4-40 x 0.25 inch, PHS
210-0803-00 L WASHER, flat, 0.15 ID x 0.375 inch OD
-121 131-1003-00 2 CONNECTOR, receptacle, coaxial cable
131-0767-02 8010100 8039999 2 CONNECTOR, receptacle, electrical, 76 contact
131-0767-08 B040000 1 CONNECTOR, receptacle, electrical
ce cre ~ each connector includes:
-122 200-0950-00 2 COVER, plastic
-123 204-0365-00 1 BODY, plastic
131-0726-00 B010100 38039999 38 CONTACT, straight
131-0726-00 3040000 35 CONTACT, straight
131-0727~00 BO10100 8039999 38 CONTACT, offset
131-0727-00 B040000 35 CONTACT, offset
131-0899-00 4 CONTACT, short tail
“oe eee ~ mounting hardware for each: (not included w/connector)
~124 213-0232-00 3 SCREW, thread forming, 2-56 x 0.312 inch, PHS
131-0767~00 BO10100 38039999 1 CONNECTOR, receptacle, electrical, 76 contact
131-0767-07 BOQ40000 1 CONNECTOR, receptacle, electrical
“occ = ~ connector includes:
~125 200-0950-00 2 COVER, plastic
-126 204-0365-02 1 BODY, plastic
-127 131-0726-00 BO10100 BO039999 38 CONTACT, straight
131-0726-90 BO40000 35 CONTACT, straight
-128 131-0727~00 BO10100 8039999 38 CONTACT, offset
131-0727-00 BO40000 35 CONTACT, offset
woot ee ~ mounting hardware: (not included w/connector)
-129 213-0232-00 2 SCREW, thread forming, 2-56 x 0.312 inch, PHS
210-0906-00 1 WASHER, fiber, 0.125 ID x 0.203 inch OD
-130 131-0804-00 1 LINK, terminal connecting, 1.17 inches long
-131 131-0805~-00 2 LINK, terminal connecting, 0.90 inch long
-132 214-1568-00 2 PIN, guide
-
or
tee
~
mounting
hardware
for
each:
(not
included
w/pin)
-133 120-0406-00 1 NUT, hex., 440 x 0.188 inch
-134
210-0054-00
1
WASHER,
lock,
split,
0.118
ID
x
0.212
inch
OD
REV. JAN 1974
7-25
7613
