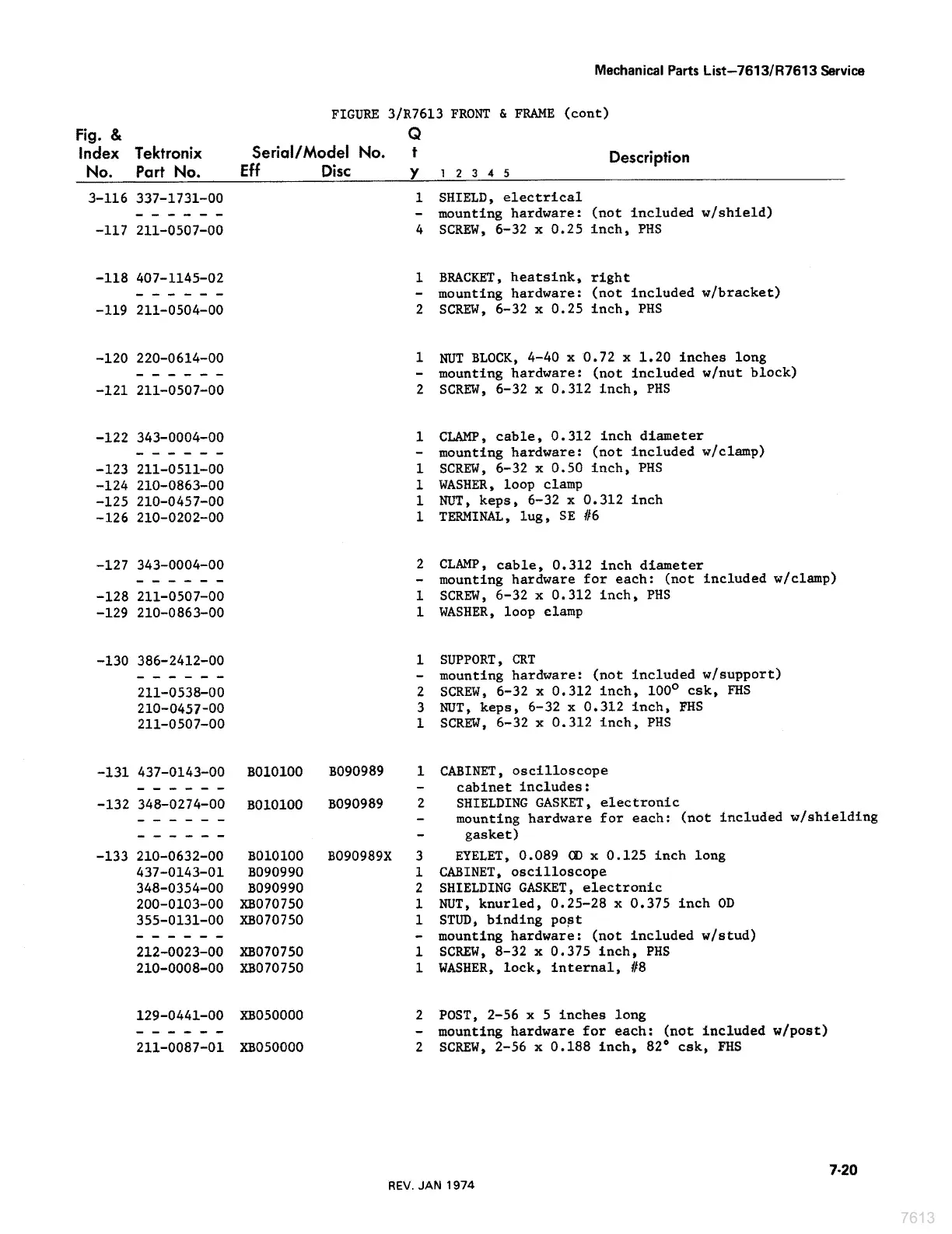

Mechanical Parts List—7613/R7613 Service
FIGURE 3/R7613 FRONT & FRAME (cont)
Fig. & Q
Index Tektronix Serial/Model No. ft Description
No. Part No. Eff Disc y 12345
3-116 337-1731-00 1 SHIELD, electrical
~----- - mounting hardware: (not included w/shield)
~117 211-0507-00 4 SCREW, 6-32 x 0.25 inch, PHS
~118 407-1145-02 BRACKET, heatsink, right
ere eee - mounting hardware: (not included w/bracket)
-119 211-0504-00 2 SCREW, 6-32 x 0.25 inch, PHS
~120 220-0614-00 1 NUT BLOCK, 4-40 x 0.72 x 1.20 inches long
------ - mounting hardware: (not included w/nut block)
~121 211-0507-00 2 SCREW, 6-32 x 0.312 inch, PHS
~122 343-0004-00 1 CLAMP, cable, 0.312 inch diameter
-----e - mounting hardware: (not included w/clamp)
~123 211-0511-00 1 SCREW, 6-32 x 0.50 inch, PHS
~124 210-0863-00 1 WASHER, loop clamp
~125 210-0457-00 1 NUT, keps, 6-32 x 0.312 inch
~126 210-0202~-00 1 TERMINAL, lug, SE #6
~127 343-0004-00 2 CLAMP, cable, 0.312 inch diameter
-----e- ~ mounting hardware for each: (not included w/clamp)
~128 211-0507-00 1 SCREW, 6-32 x 0.312 inch, PHS
-129 210-0863-00 1 WASHER, loop elamp
~130 386+2412-00 1 SUPPORT, CRT
------ - mounting hardware: (not included w/support)
211-0538-00 2 SCREW, 6-32 x 0.312 inch, 100° csk, FHS
210-0457-06 3 NUT, keps, 6-32 x 0.312 inch, FHS
211-0507-00 1 SCREW, 6-32 x 0.312 inch, PHS
~131 437-0143-00 8010100 3090989 1 CABINET, oscilloscope
------ - cabinet includes:
~132 348-0274-00 3010100 B090989 2 SHIELDING GASKET, electronic
--+-+-- - mounting hardware for each: (not included w/shielding
“----+-- - gasket)
~133 210-0632-00 8010100 xBo90989x 3 EYELET, 0.089 OD x 0.125 inch long
437~0143-01 B090990 1 CABINET, oscilloscope
348-0354-00 38090990 2 SHIELDING GASKET, electronic
200-0103-00 XB070750 1 NUT, knurled, 0.25~28 x 0.375 inch OD
355-0131-00 XBO70750 1 STUD, binding post
------ - mounting hardware: (not included w/stud)
212-0023-00 XBO70750 1 SCREW, 8-32 x 0.375 inch, PHS
210-0008-00 XB070750 1 WASHER, lock, internal, #8
129-0441-00 XBO50000 2 POST, 2-56 x 5 inches long
------ - mounting hardware for each: (not included w/post)
211-0087-01 xXBO50000 2 SCREW, 2-56 x 0.188 inch, 82° csk, FHS
7-20
REV. JAN 1974
7613
