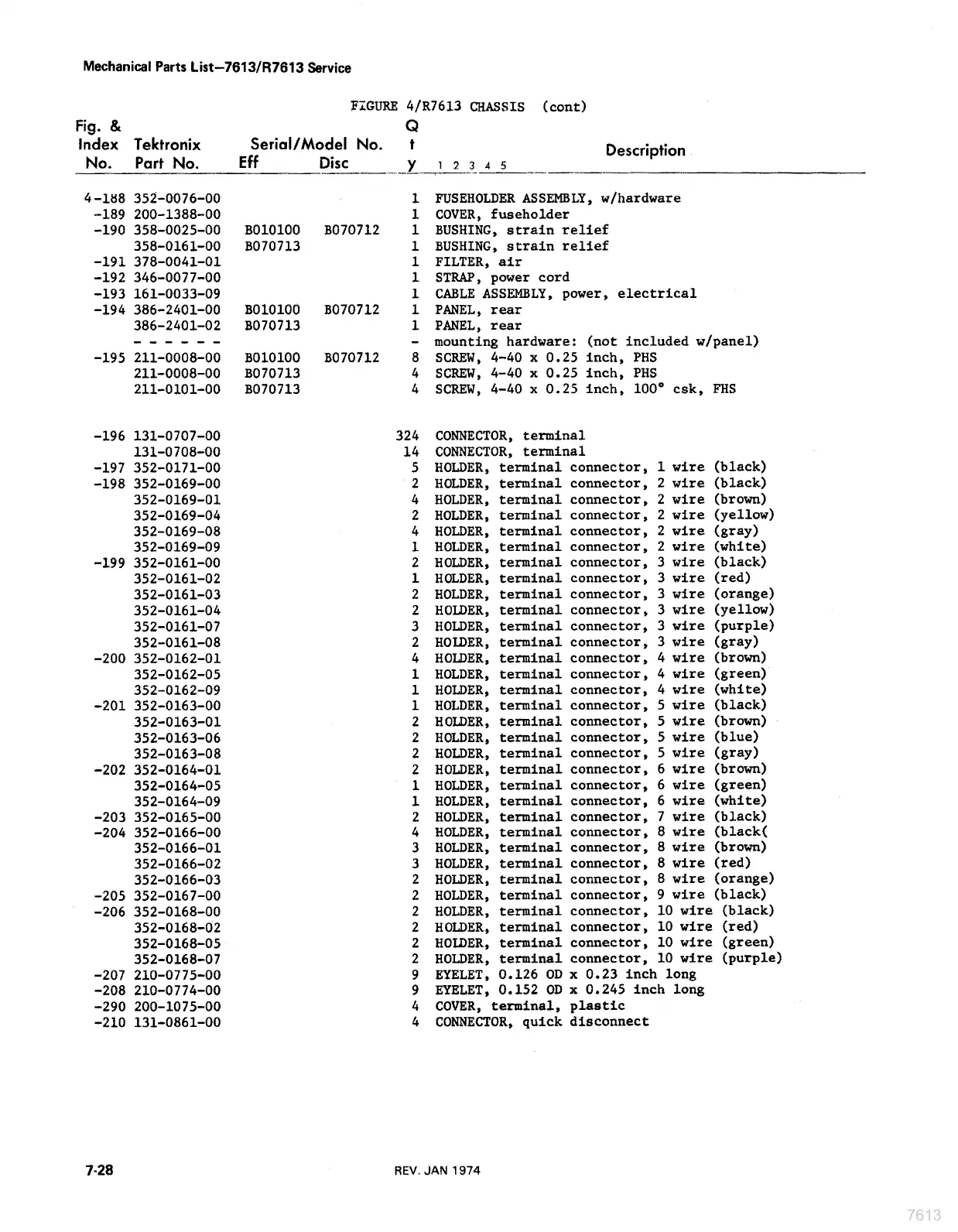

Mechanical Parts List--7613/R7613 Service
FEGURE 4/R7613 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial/Model No. ft Description
No. Part No. Eff Disc Y 12345
4-188 352-0076-00 1 FUSEHOLDER ASSEMBLY, w/hardware
-189 200-1388-00 1 COVER, fuseholder
~190 358-0025-00 B010100 38070712 1 BUSHING, strain relief
358-0161-00 8070713 1 BUSHING, strain relief
-191 378-0041-01 1 FILTER, air
-192 346-0077-00 1 STRAP, power cord
-193 161-0033-09 1 CABLE ASSEMBLY, power, electrical
-194 386-2401-00 BO10100 8070712 1 PANEL, rear
386-2401-02 8070713 1 PANEL, rear
“eo ee - mounting hardware: (not included w/panel)
-195 211-0008-00 B010100 8070712 8 SCREW, 4-40 x 0.25 inch, PHS
211-0008-00 8070713 4 SCREW, 4~40 x 0.25 inch, PHS
211-0101-00 38070713 4 SCREW, 4~40 x 0.25 inch, 100° csk, FHS
-196 131-0707-00 324 CONNECTOR, terminal
131-0708-00 14 CONNECTOR, terminal
-197 352-0171-00 5 HOLDER, terminal connector, 1 wire (black)
-~198 352-0169-00 '2 HOLDER, terminal connector, 2 wire (black)
352-0169-01 4 HOLDER, terminal connector, 2 wire (brown)
352-0169-04 2 HOLDER, terminal connector, 2 wire (yellow)
352-0169-08 4 HOLDER, terminal connector, 2 wire (gray)
352-0169-09 1 HOLDER, terminal connector, 2 wire (white)
-199 352-0161-00 2 HOLDER, terminal connector, 3 wire (black)
352-0161-02 1 HOLDER, terminal connector, 3 wire (red)
352-0161-03 2 HOLDER, terminal connector, 3 wire (orange)
352-0161-04 2 HOLDER, terminal connector, 3 wire (yellow)
352-0161-07 3 HOLDER, terminal connector, 3 wire (purple)
352-0161-08 2 HOLDER, terminal connector, 3 wire (gray)
-200 352-0162-01 4 HOLDER, terminal connector, 4 wire (brown)
352-0162-05 1 HOLDER, terminal connector, 4 wire (green)
352-0162-09 1 HOLDER, terminal connector, 4 wire (white)
-201 352-0163-00 1 HOLDER, terminal connector, 5 wire (black)
352-0163-01 2 HOLDER, terminal connector, 5 wire (brown)
352-0163-06 2 HOLDER, terminal connector, 5 wire (blue)
352-0163-08 2 HOLDER, terminal connector, 5 wire (gray)
-202 352-0164-01 2 HOLDER, terminal connector, 6 wire (brown)
352-0164-05 1 HOLDER, terminal connector, 6 wire (green)
352-0164-09 1 HOLDER, terminal connector, 6 wire (white)
-203 352-0165-00 2 HOLDER, terminal connector, 7 wire (black)
~204 352-0166-00 4 HOLDER, terminal connector, 8 wire (black(
352-0166-01 3 HOLDER, terminal connector, 8 wire (brown)
352-0166-02 3 HOLDER, terminal connector, 8 wire (red)
352-0166-03 2 HOLDER, terminal connector, 8 wire (orange)
-205 352-0167-00 2 HOLDER, terminal connector, 9 wire (black)
-206 352-0168-00 2 HOLDER, terminal connector, 10 wire (black)
352-0168-02 2 HOLDER, terminal connector, 10 wire (red)
352-0168-05 2 HOLDER, terminal connector, 10 wire (green)
352-0168-07 2 HOLDER, terminal connector, 10 wire (purple)
-207 210-0775-00 9 EYELET, 0.126 OD x 0.23 inch long
-208 210-0774-00 9 EYELET, 0.152 OD x 0.245 inch long
~290 200-1075-00 4 COVER, terminal, plastic
-210 131-0861-00 4 CONNECTOR, quick disconnect
7-28
REV. JAN 1974
