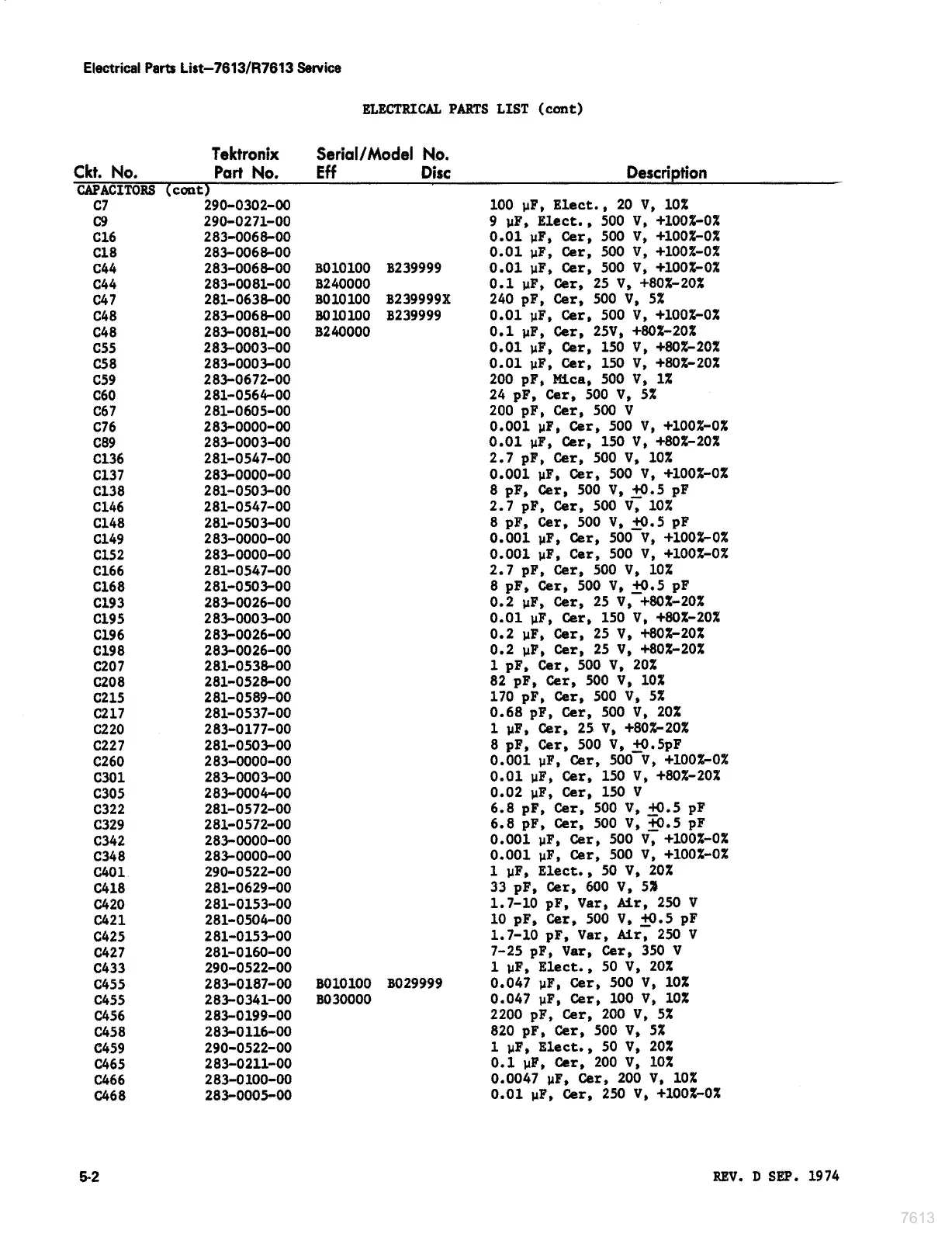

Electrical Parts List—7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Serial/Model No.
Eff Disc
Description
Tektronix
Ckt. No. Part No.
CAPACITORS (cont)
C7 290-0302-00
c9 290-0271-00
C16 283-0068-00
c18 283~0068-00
C44 283-0068-00
C44 283~0081-00
C47 281~0638-00
C48 283-0068-00
C48 283-0081-00
c55 283~-0003-00
C58 283-0003-00
C59 283-0672-00
c60 281~0564-00
C67 281-0605-00
C76 283-0000-00
cs9 283-0003-00
C136 281-0547-00
C137 283-0000-00
C138 281-0503-00
C146 281-0547-00
C148 281-0503-00
C149 283~0000-00
C152 283~0000-00
C166 281-0547-00
C168 281-0503-00
C193 283-0026-00
C195 283-0003-00
C196 283-0026-00
C0198 283~0026-00
C207 281-0538-00
C208 281~0528-00
C215 281-0589-00
C217 281~0537-00
C220 283-0177-00
C227 281-0503-00
C260 283-0000-00
301 283-0003-00
C305 283-0004-00
C322 281-0572-00
329 281-0572-00
C342 283~0000-00
C348 283-0000-00
C401. 290-0522-00
C418 281-~-0629-00
C420 281~0153-00
C421 281-0504-00
C425 281-0153-00
C427 281~0160-00
C433 290-0522-00
C455 283-0187-00
C455 283~0341-00
C456 283~0199-00
C458 283-0116-00
¢459 290~-0522-00
C465 283~0211-00
C466 283-0100-00
C468 283-0005-00
5-2
BO10100 3239999
B240000
BO10100 B239999X
BO10100 8239999
B240000
BO10100 8029999
B030000
100 uF, Elect., 20 V, 102%
9 uF, Elect., 500 V, +100%-0%
0.01 uF, Cer, 500 V, +100%-0%
0.01 uF, Cer, 500 V, +100%-0%
0.01 uF, Cer, 500 V, +100%-0%
0.1 uF, Cer, 25 V, +80%~20%
240 pF, Cer, 500 V, 5%
0.01 uF, Cer, 500 V, +100%-0%
0.1 uF, Cer, 25V, +80%-20%
0.01 uF, Cer, 150 V, +80%-20%
0.01 pF, Cer, 150 V, +80%-20%
200 pF, Mica, 500 V, 1%
24 pF, Cer, 500 V, 5%
200 pF, Cer, 500 V
0.001 yF, Cer, 500 V, +1002%-0%
0.01 uF, Cer, 150 V, +80%-20%
2.7 pF, Cer, 500 V, 10%
0.001 pF, Cer, 500 V, +100%-02%
8 pF, Cer, 500 V, 40.5 pF
2.7 pF, Cer, 500 V, 10%
8 pF, Cer, 500 V, +0.5 pF
0.001 uF, Cer, 500 V, +100%-0%
0.001 uF, Cer, 500 V, +1002-0%
2.7 pF, Cer, 500 V, 10%
8 pF, Cer, 500 V, 4+0.5 pF
0.2 uF, Cer, 25 V, +80%-202%
0.01 uF, Cer, 150 V, +80%-20%
0.2 uF, Cer, 25 V, +802-202
0.2 uF, Cer, 25 V, +80%-20%
1 pF, Cer, 500 V, 20%
82 pF, Cer, 500 V, 10%
170 p¥, Cer, 500 V, 5%
0.68 pF, Cer, 500 V, 20%
1 uF, Cer, 25 V, +80%~20%
8 pF, Cer, 500 V, +0.5pF
0.001 uF, Cer, 500 V, +100%-0%
0.01 uF, Cer, 150 V, +80%-202%
0.02 pF, Cer, 150 V
6.8 pF, Cer, 500 V, 0.5 pF
6.8 pF, Cer, 500 V, +0.5 pF
0.001 uF, Cer, 500 V, +100%-0%
0.001 pF, Cer, 500 V, +100%-02%
1 uF, Elect., 50 V, 20%
33 pF, Cer, 600 V, 5%
1.7-10 pF, Var, Air, 250 V
10 pF, Cer, 500 V, +0.5 pF
1.7-10 pF, Var, Air, 250 V
7-25 pF, Var, Cer, 350 V
1 uF, Elect., 50 V, 20%
0.047 pF, Cer, 500 V, 102%
0.047 uF, Cer, 100 V, 10%
2200 pF, Cer, 200 V, 5%
820 pF, Cer, 500 V, 5%
1 uF, Elect., 50 V, 20%
0.1 uF, Cer, 200 V, 10%
0.0047 uF, Cer, 200 V, 10%
0.01 wF, Cer, 250 V, +1002%-02%
REV. D SEP. 1974
