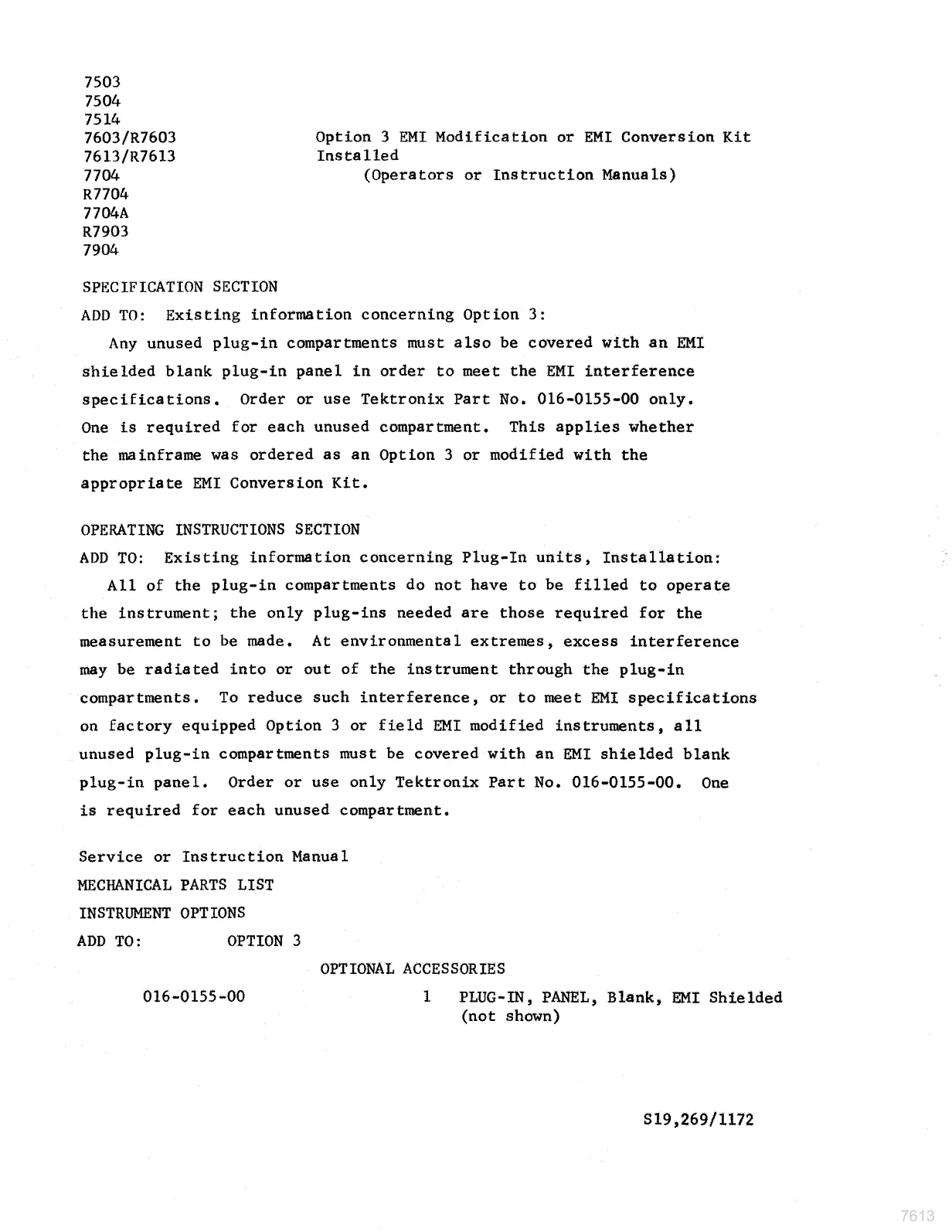

7603/R7603 Option 3 EMI Modification or EMI Conversion Kit
7613/R7613 Installed
7704 (Operators or Instruction Manuals)
R7704
7704A
R7903
7904
SPECIFICATION SECTION
ADD TO: Existing information concerning Option 3:
Any unused plug-in compartments must also be covered with an EMI
shielded blank plug-in panel in order to meet the EMI interference
specifications, Order or use Tektronix Part No. 016-0155~-00 only.
One is required for each unused compartment. This applies whether
the mainframe was ordered as an Option 3 or modified with the
appropriate EMI Conversion Kit.
OPERATING INSTRUCTIONS SECTION
ADD TO: Existing information concerning Plug-In units, Installation:
All of the plug-in compartments do not have to be filled to operate
the instrument; the only plug-ins needed are those required for the
measurement to be made. At environmental extremes, excess interference
may be radiated into or out of the instrument through the plug-in
compartments, To reduce such interference, or to meet EMI specifications
on factory equipped Option 3 or field EMI modified instruments, all
unused plug-in compartments must be covered with an EMI shielded blank
plug-in panel. Order or use only Tektronix Part No. 016-0155~00. One
is required for each unused compartment.
Service or Instruction Manual
MECHANICAL PARTS LIST
INSTRUMENT OPTIONS
ADD TO: OPTION 3
OPTIONAL ACCESSORIES
016+-0155-00 1 PLUG-IN, PANEL, Blank, EMI Shielded
(mot shown)
$19 ,269/1172
