Tektronix 7613 User Manual

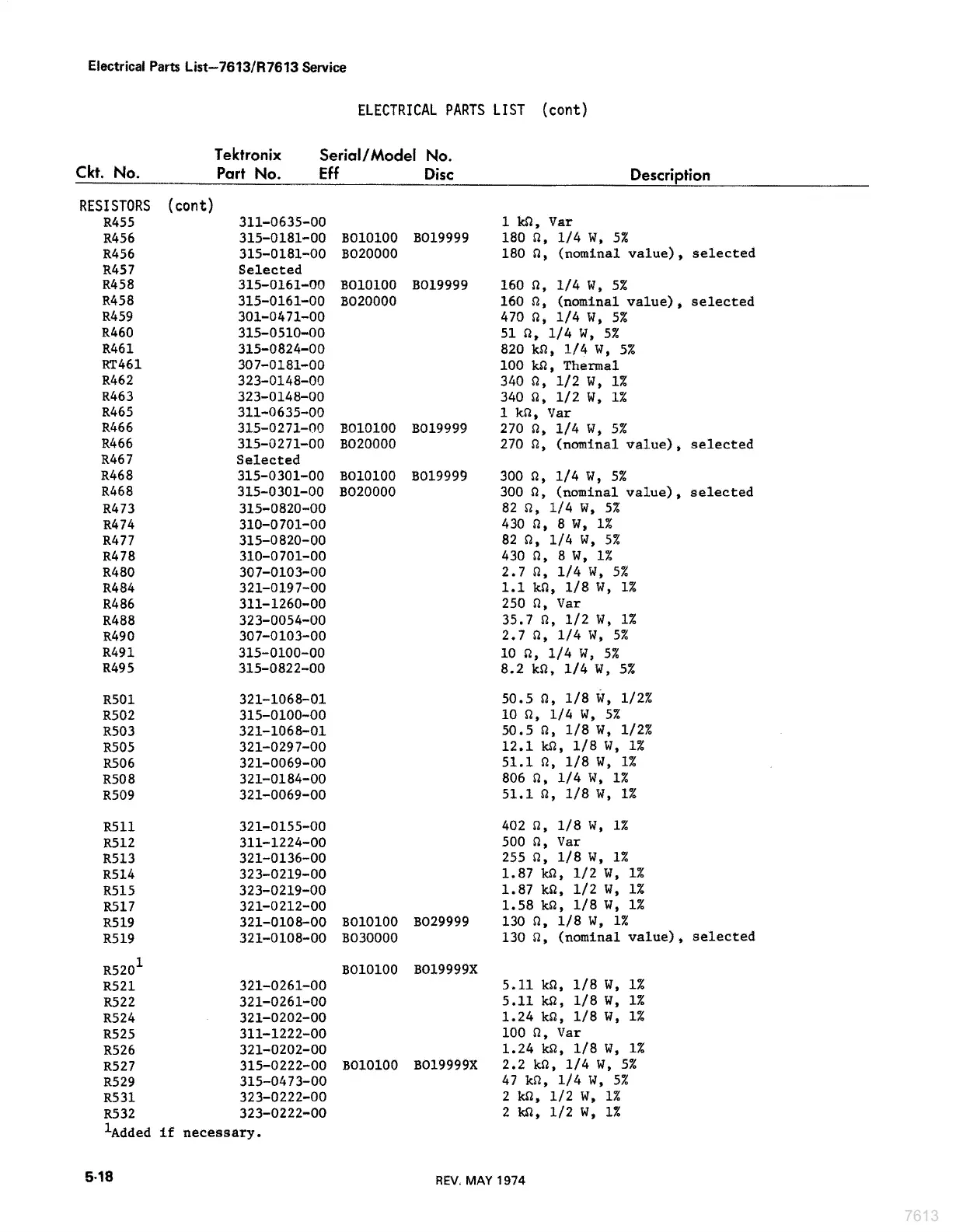

Electrical Parts List--7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
RESISTORS (cont)
R455 311-0635-00 1 kQ, Var
R456 315-0181-00 BO10100 BO19999 180 2, 1/4 W, 54%
R456 315-0181-00 8020000 180 2, (nominal value), selected
R457 Selected
R458 315-0161-00 BO10100 BO19999 160 2, 1/4 W, 5%
R458 315-0161-00 BO20000 160 2, (mominal value), selected
R459 301-0471-00 470 2, 1/4 W, 5%
R460 315-0510-00 512, 1/4 W, 5%
R461 315-0824-00 820 kn, 1/4 W, 5%
RT461 307-0181-00 100 kR, Thermal
R462 323-0148-00 340 2, 1/2 W, 1%
R463 323-0148-00 340 &, 1/2 W, 1%
R465 311~0635-~00 1k, Var
R466 315-0271-00 BO10100 38019999 270 2, 1/4 W, 5%
R466 315-0271-00 BO20000 270 2, (nominal value), selected
R467 Selected
R468 315-0301-00 BO10100 8019999 300 2, 1/4 W, 5%
R468 315-0301-00 BO20000 300 2, (nominal value), selected
R473 315-0820-~-00 829, 1/4 W, 5%
R474 310-0701-00 430 2, BW, 12%
R477 315-0820-00 82 2, 1/4 W, 5%
R478 310-0701-00 430 2, 8W, 1%
R480 307-0103-00 2.79, 1/4 W, 5%
R484 321-0197-00 1.1 kn, 1/8 W, 1%
R486 311-1260-00 250 2, Var
R488 323-0054-00 35.7 2, 1/2 W, 1%
R490 307-0103-~00 2.7 2, 1/4 W, 52
R491 315-0100-00 10 2, 1/4 W, 52%
R495 315-0822~00 8.2 kQ, 1/4 W, 5%
R501 321-1068-01 50.5 2, 1/8 W, 1/2%
R502 315-0100~00 10 Q, 1/4 W, 5%
R503 321-1068-01 50.5 9, 1/8 W, 1/22
R505 321-0297~00 12.1 ka, 1/8 W, 1%
R506 321-0069-00 51.1 2, 1/8 W, 1%
R508 321-0184~00 806 2, 1/4 W, 1%
R509 321-0069-00 51.18, 1/8 W, 12%
R511 321-0155-00 402 2, 1/8 W, 1%
R512 311+1224~-00 500 @, Var
R513 321-0136-00 255 2, 1/8 W, 1%
R514 323-0219-00 1.87 kQ, 1/2 W, 1%
R515 323-0219-00 1.87 kQ, 1/2 W, 1%
R517 321-0212~00 1.58 kQ, 1/8 W, 1%
R519 321-0108-00 B010100 B029999 130 2, 1/8 W, 1%
R519 321-0108-00 BO30000 130 Q, (nominal value), selected
R5207 BO10100 BO19999X
R521 321-0261-00 5.11 kh, 1/8 W, 1%
R522 321-0261-00 5.11 k2, 1/8 W, 12%
R524 321-0202-00 1.24 ka, 1/8 W, 12%
R525 311-1222-00 100 2, Var
R526 321-0202-00 1.24 kQ, 1/8 W, 1%
R527 315-0222-00 BO10100 BO19999xX 2.2 kQ, 1/4 W, 5%
R529 315-0473~-00 47 kQ, 1/4 W, 5%
R531 323-0222-00 2k2, 1/2 W, 1%
R532 323-0222-00 2 kQ, 1/2 W, 1%
ladded if necessary.
5-18
REV. MAY 1974
7613
