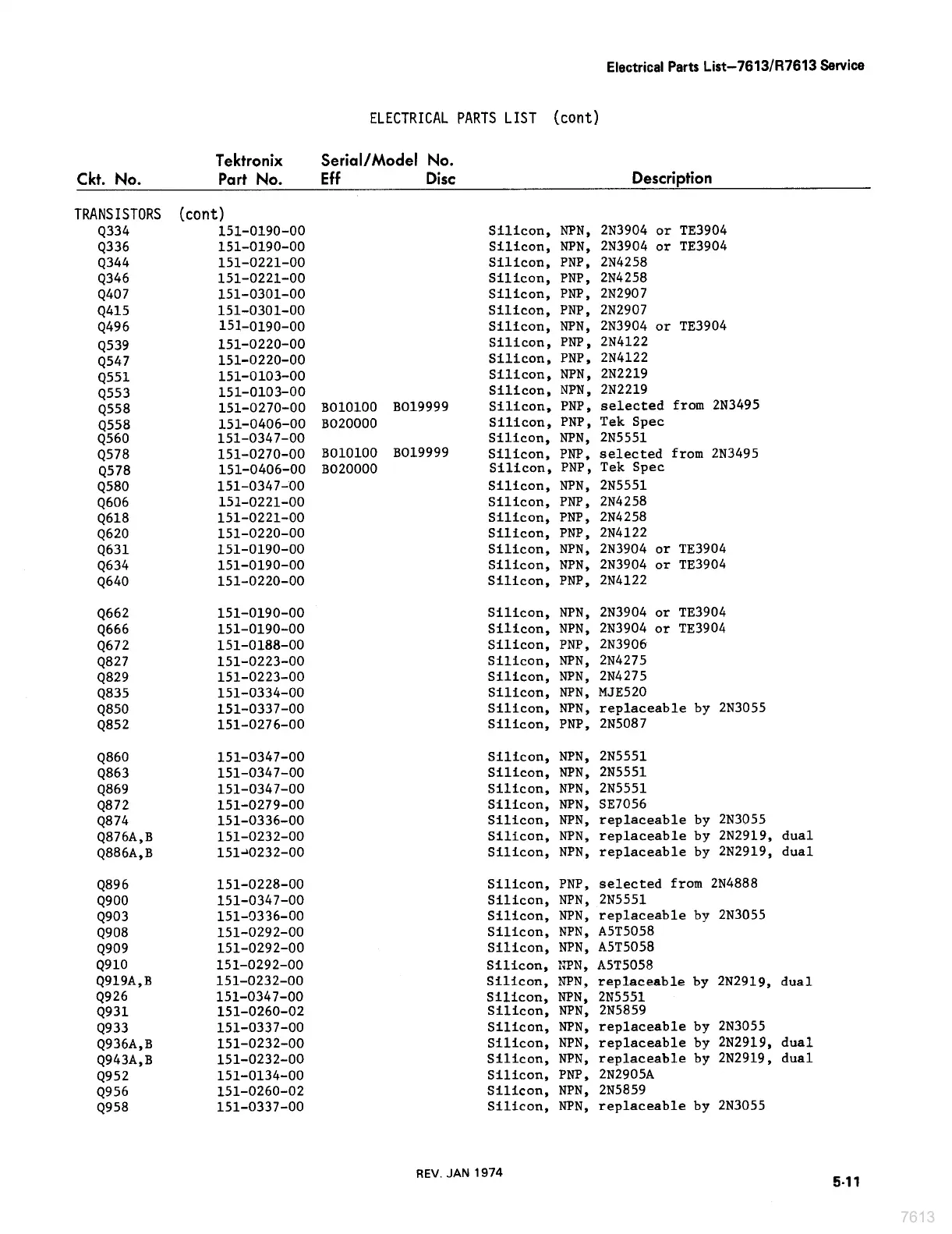

Electrical Parts List—-7613/R7613 Service
ELECTRICAL PARTS LIST (cont)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
TRANSISTORS (cont)
Q334 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q336 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q344 151-0221-00 Silicon, PNP, 2N4258
Q346 151-0221-00 Silicon, PNP, 2N4258
Q407 151-0301-00 Silicon, PNP, 2N2907
Q415 151-0301-00 Silicon, PNP, 2N2907
Q496 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q539
151-0220-00
Silicon,
PNP,
2N4122
Q547
151-0220-00
Silicon,
PNP,
2N4122
Q551
151-0103-00
Silicon,
NPN,
2N2219
Q553
151-0103-00
Silicon,
NPN,
2N2219
Q558
151-0270-00
BO10100
BO019999
Silicon,
PNP,
selected
from
2N3495
Q558
151-0406-00
BO20000
Silicon,
PNP,
Tek
Spec
Q560 151-0347-00 Silicon, NPN, 2N5551
Q578 151-0270-00 B010100 B019999 Silicon, PNP, selected from 2N3495
Q578
151-0406-00
8020000
Silicon,
PNP,
Tek
Spec
Q580 151-0347-00 Silicon, NPN, 2N5551
Q606 151-0221-00 Silicon, PNP, 2N4258
Q618 151-0221-00 Silicon, PNP, 2N4258
Q620 151-0220-00 Silicon, PNP, 2N4122
Q631 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q634 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q640 151-0220-00 Silicon, PNP, 2N4122
Q662 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q666 151-0190-00 Silicon, NPN, 2N3904 or TE3904
Q672 151-0188-00 Silicon, PNP, 2N3906
Q827 151-0223-00 Silicon, NPN, 2N4275
Q829 151-0223-00 Silicon, NPN, 2N4275
Q835 151-0334-00 Silicon, NPN, MJE520
Q850 151-0337-00 Silicon, NPN, replaceable by 2N3055
Q852 151-0276-00 Silicon, PNP, 2N5087
Q860 151-0347-00 Silicon, NPN, 2N5551
Q863 151-0347-00 Silicon, NPN, 2N5551
Q869 151-0347-00 Silicon, NPN, 2N5551
Q872 151-0279-00 Silicon, NPN, SE7056
Q874 151-0336-00 Silicon, NPN, replaceable by 2N3055
Q876A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q886A,B 15120232-00 Silicon, NPN, replaceable by 2N2919, dual
Q896 151-0228-00 Silicon, PNP, selected from 2N4888
Q900 151-0347-00 Silicon, NPN, 2N5551
Q903 151-9336-00 Silicon, NPN, replaceable by 2N3055
Q908 151-0292-00 Silicon, NPN, A5T5058
Q909 151-0292-00 Silicon, NPN, A5T5058
Q910 151-0292-00 Silicon, NPN, A5T5058
Q919A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q926 151-0347-00 Silicon, NPN, 2N5551
Q931 151-0260-02 Silicon, NPN, 2N5859
Q933 151-0337-00 Silicon, NPN, replaceable by 2N3055
Q936A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q943A,B 151-0232-00 Silicon, NPN, replaceable by 2N2919, dual
Q952 151-0134~00 Silicon, PNP, 2N2905A
Q956 151-0260-02 Silicon, NPN, 2N5859
Q958 151-0337-00 Silicon, NPN, replaceable by 2N3055
REV. JAN 1974
5-11
7613
