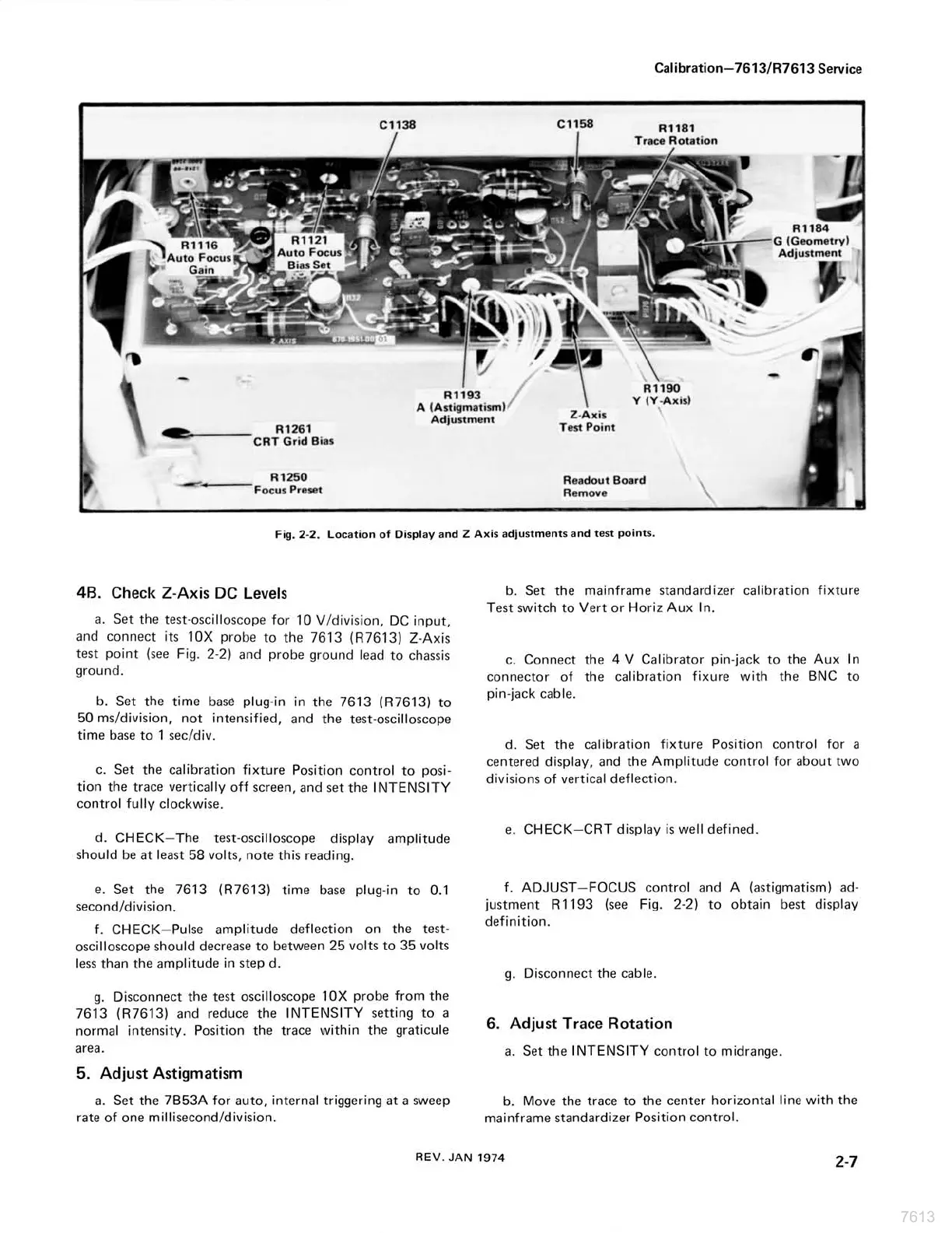

Calibration—7613/R7613
Service
R1193
A
(Astigmatism)
/
Adjustm:
R1261
CRT
Grid
Bias
oa
R1250
Focus
Preset
R1181
Trace
Rotation
Y
(Y-Axis)
Z-Axis
t
Test
Point
Readout
Board
Remove
Fig.
2-2.
Location
of
Display
and
Z
Axis
adjustments
and
test
points.
4B.
Check
Z-Axis
DC
Levels
a.
Set
the
test-oscilloscope
for
10
V/division,
DC
input,
and
connect
its
10X
probe
to
the
7613
(R7613)
Z-Axis
test
point
(see Fig.
2-2)
and
probe
ground
lead
to
chassis
ground.
b.
Set the
time
base
plug-in
in
the
7613
(R7613)
to
50
ms/division,
not
intensified,
and
the
test-oscilloscope
time
base
to
1
sec/div.
c.
Set
the
calibration
fixture
Position
control
to
posi-
tion
the
trace
vertically
off
screen,
and
set
the
INTENSITY
control
fully
clockwise.
d.
CHECK—The
test-oscilloscope
display
amplitude
should
be
at
least
58
volts,
note
this
reading.
e.
Set
the
7613
(R7613)
time
base
plug-in
to
0.1
second/division.
f.
CHECK—Pulse
amplitude
deflection
on
the
test-
oscilloscope
should
decrease
to
between
25
volts
to
35 volts
less
than
the
amplitude
in
step
d.
g.
Disconnect
the
test
oscilloscope
10X
probe
from
the
7613
(R7613)
and
reduce
the
INTENSITY
setting
to
a
normal
intensity.
Position
the
trace
within
the
graticule
area.
5.
Adjust
Astigmatism
a.
Set the
7B53A
for
auto,
internal
triggering
at
a
sweep
rate
of
one
millisecond/division.
b.
Set
the
mainframe
standardizer
calibration
fixture
Test
switch
to
Vert
or
Horiz
Aux
In.
c.
Connect
the
4 V
Calibrator
pin-jack
to
the
Aux
In
connector
of
the
calibration
fixure
with
the
BNC
to
pin-jack
cable.
d.
Set
the
calibration
fixture
Position
control
for
a
centered
display,
and
the
Amplitude
control
for
about
two
divisions
of
vertical
deflection.
e.
CHECK—CRT
display
is
well
defined.
f.
ADJUST—FOCUS
control and
A
(astigmatism)
ad-
justment
R1193
(see Fig.
2-2)
to
obtain
best
display
definition.
g.
Disconnect
the
cable.
6.
Adjust Trace
Rotation
a.
Set the
INTENSITY
control
to
midrange.
b.
Move
the
trace
to
the
center
horizontal
line
with
the
mainframe
standardizer
Position
control.
REV.
JAN
1974
27
7613
