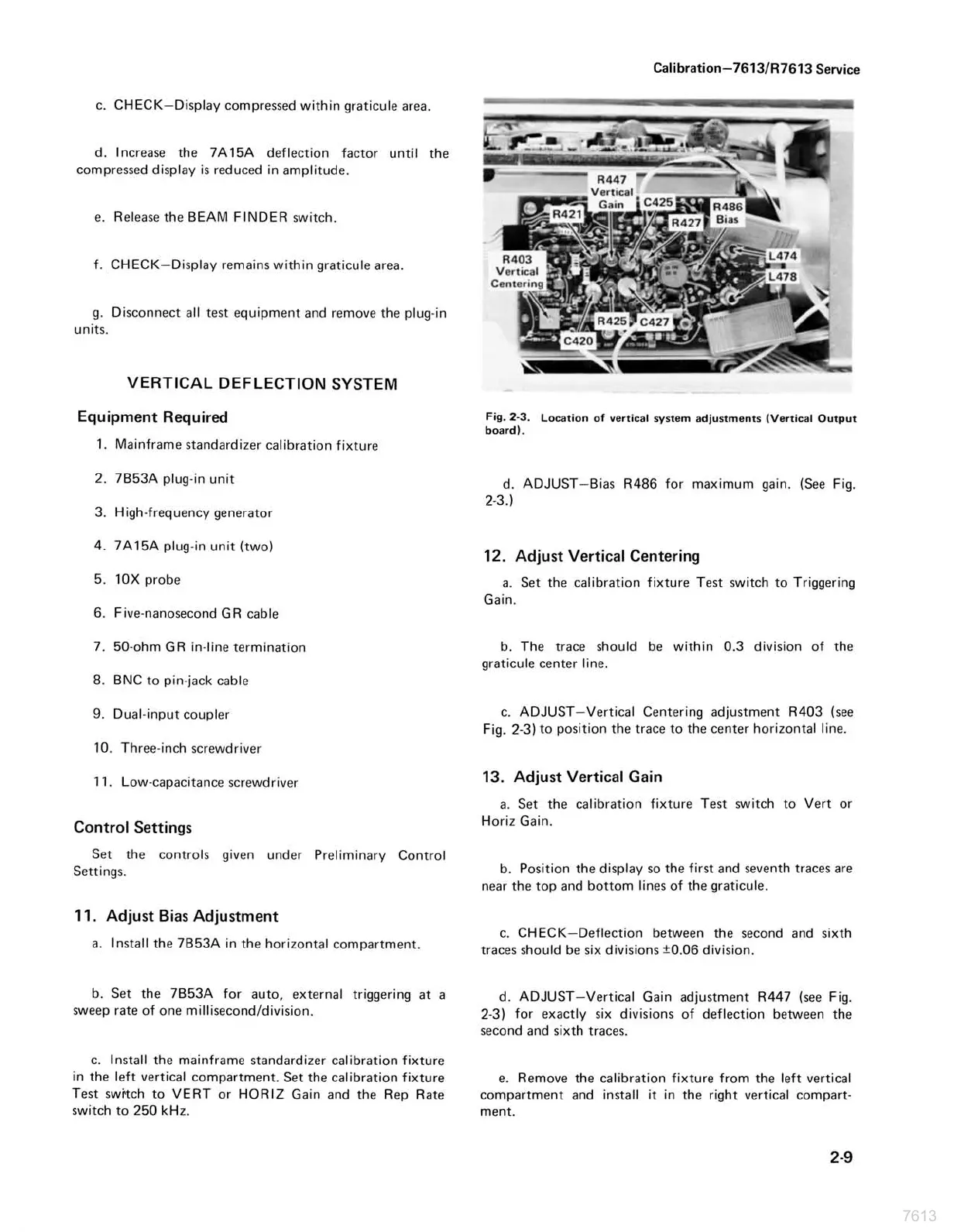

Page #16 background imageLoading...
Page #16 background image
c.
CHECK—Display
compressed
within
graticule
area.
d.
Increase
the
7A15A
deflection
factor
until
the
compressed
display
is
reduced
in
amplitude.
e.
Release
the
BEAM
FINDER
switch.
f.
CHECK—Display
remains
within
graticule
area.
g.
Disconnect
all
test
equipment
and
remove
the
plug-in
units.
VERTICAL
DEFLECTION
SYSTEM
Equipment
Required
1,
Mainframe
standardizer
calibration
fixture
2.
7B53A
plug-in
unit
3.
High-frequency
generator
4.
7A15A
plug-in
unit
(two)
5.
10X
probe
6.
Five-nanosecond
GR
cable
7.
50-ohm
GR
in-line
termination
8.
BNC
to
pin-jack
cable
9.
Dual-input
coupler
10.
Three-inch
screwdriver
11,
Low-capacitance
screwdriver
Control
Settings
Set the
controls
given
under
Preliminary
Control
Settings.
11.
Adjust
Bias
Adjustment
a.
Install
the
7B53A
in
the
horizontal
compartment.
b.
Set
the
7B53A
for
auto,
external
triggering
at
a
sweep
rate
of
one
millisecond/division.
c.
Install
the
mainframe
standardizer
calibration
fixture
in
the
left
vertical
compartment.
Set the
calibration
fixture
Test
switch
to
VERT
or
HORIZ
Gain
and
the
Rep
Rate
switch
to
250
kHz.
Calibration—7613/R7613
Service
Vertical
Centering
y
4
x
;
»
425
9
C427
LD
Sm
Te
Fig.
2-3.
Location
of
vertical
system
adjustments
(Vertical
Output
board).
d.
ADJUST—Bias
R486
for
maximum
gain.
(See
Fig.
2-3.)
12.
Adjust
Vertical
Centering
a.
Set the
calibration
fixture Test
switch
to
Triggering
Gain.
b.
The
trace
should
be
within
0.3
division
of
the
graticule
center
line.
c.
ADJUST—Vertical
Centering
adjustment
R403
(see
Fig.
2-3)
to
position
the
trace
to
the
center
horizontal
line.
13.
Adjust
Vertical
Gain
a.
Set the
calibration
fixture
Test
switch
to
Vert
or
Horiz
Gain.
b.
Position
the
display
so
the
first
and
seventh
traces
are
near
the
top and
bottom
lines
of
the
graticule.
c,
CHECK—Deflection
between
the
second
and
sixth
traces
should
be
six
divisions
+0.06
division.
d.
ADJUST—Vertical
Gain
adjustment
R447
(see Fig.
2-3)
for
exactly
six
divisions
of
deflection
between
the
second
and
sixth
traces.
e.
Remove
the
calibration
fixture
from
the
left
vertical
compartment
and
install
it
in
the
right
vertical
compart-
ment.
2-9
7613
