Data Input/Output
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 239
Overview Control elements and resourcesTo save a waveform (Cont.)
Setup to export
waveforms

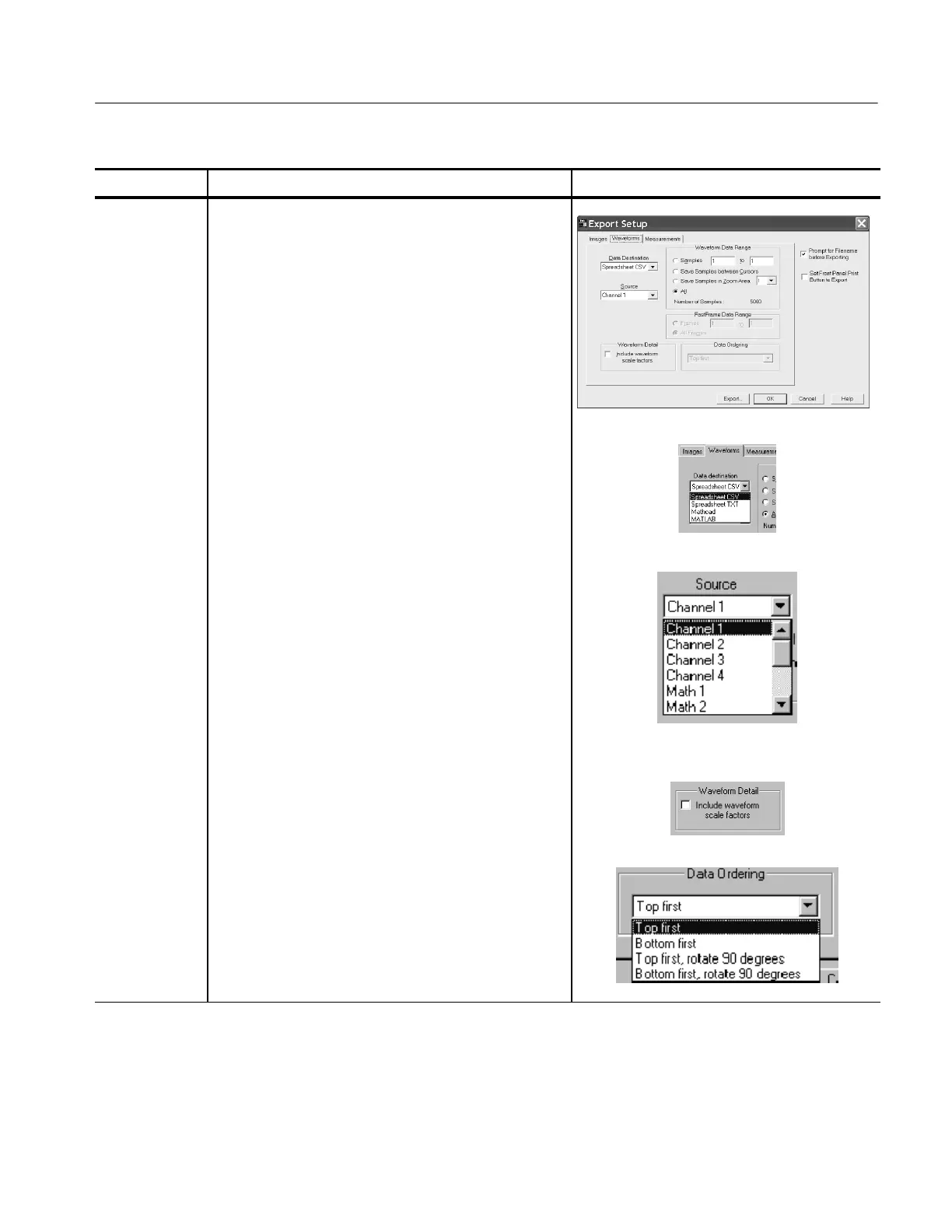

10. Select the Waveforms tab to display the Waveforms
control window.
11. Touch Data Destination, and select the destination
(format) of your exported waveform file (see File
Formats on page 3--235 for information on the available
formats).
12. Touch Source Waveform, and select the source of the
waveform (a channel, math, or reference waveform) to
export from the list.
13. If you want waveform scale factors and t ime values
included in your MathCad/Mathlab files, touch Include
waveform scale factors; if not checked, only voltage
(vertical) values are exported.
14. Touch Data Ordering, and select the data order (top
first, bottom first, or rotate) from the list.
