Analyzing waveforms Set up MIPI search parameters

Search for long packet

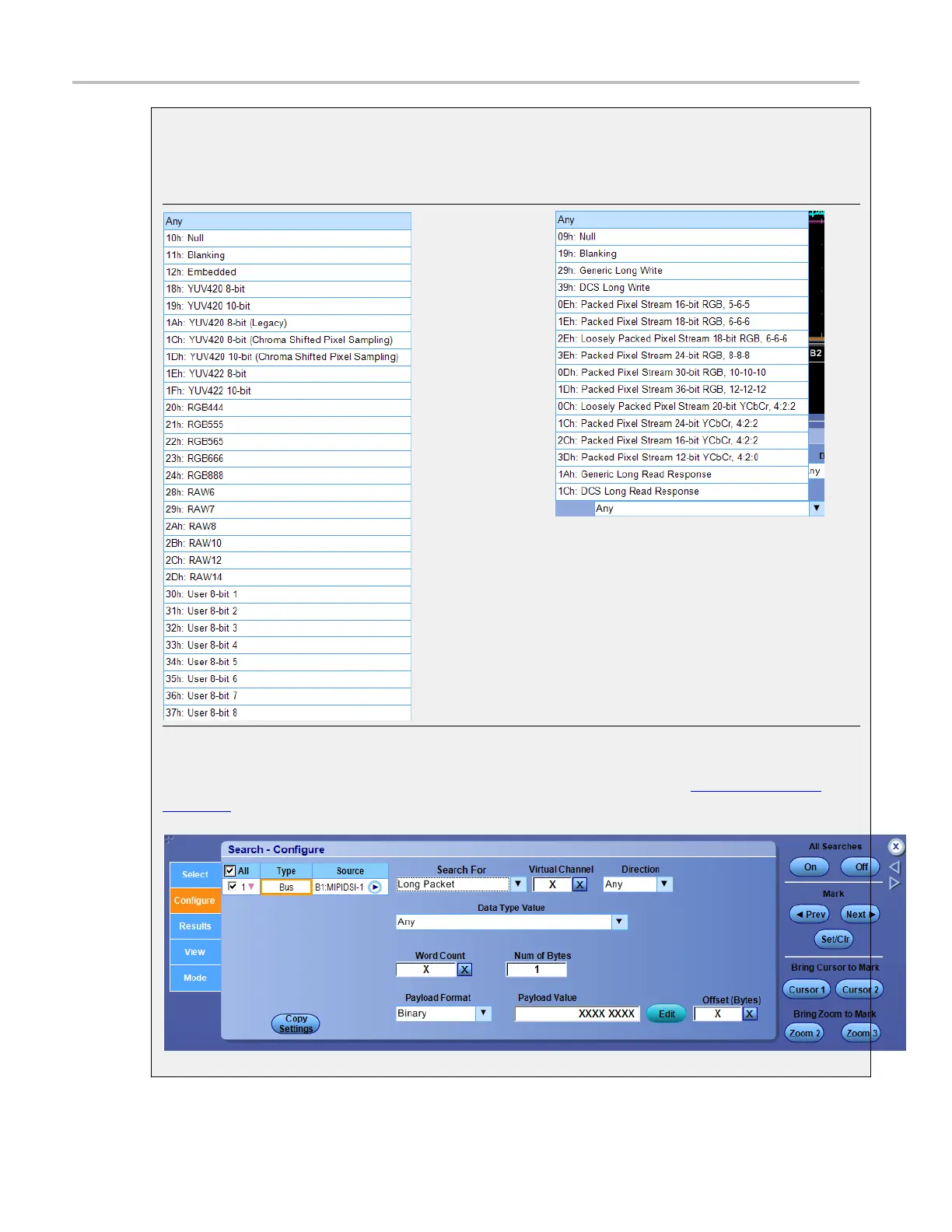

The data type value options available in Search For Long Packet are as follows:

MIPI CS I-2 MIPI D SI-1

xxx

The Search For Long Packet window allows you to set the Virtual Channel, Direction, Data Type

Value, Word Count, Number of Bytes, Payload Format, Offset in bytes, and Payload Value

(see

page 938).

342 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
