Oscilloscope Reference Set the vertical position/scale

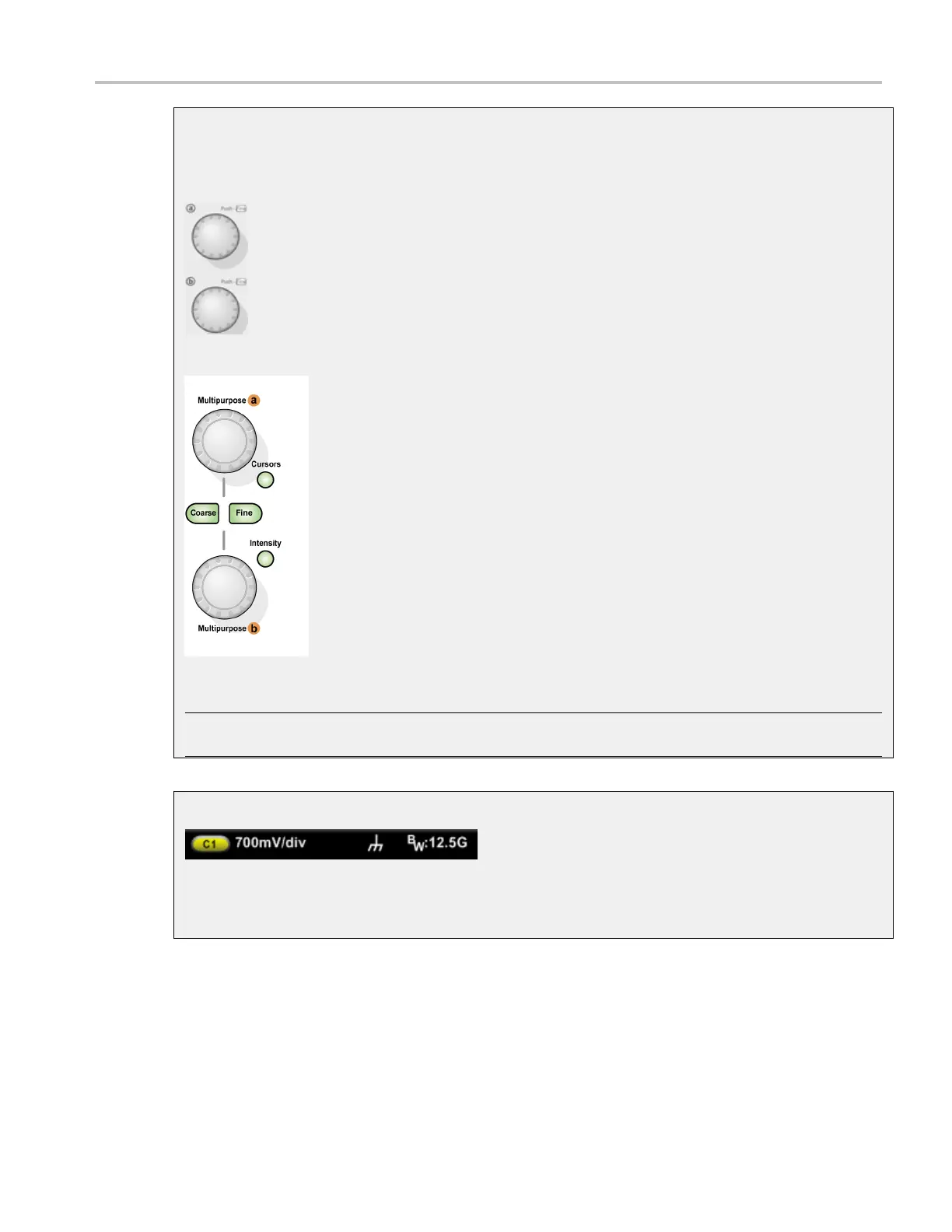

Multipurpose knobs
The multipurpose knobs can be used to set screen interface parameters. To use, click a control on the
screen to map it to the multipurpose knob(s).
On MSO/DPO5000
Series instruments
You can undo any mapping by right-clicking the multipurpose k nob(s) and selecting
Deassign Mul
tipurpose Knobs, or from the Utilities menu, select the Deassign Multipurpose
Knobs command. The mapping is deassigned until your perform that function again.
Turn the knob(s) or scroll with the mouse wheel until the desired selection appears in the
readout map
ped to the knob. Push the FINE button, or click the mouse wheel to use
the knob to make small changes, for example, to add another decimal place for greater
accuracy.
When no cont
rol windows are open and cursors are turned on, the multipurpose knobs
control the cursor positions.
xxx
NOTE. These knobs are automatically mapped when certain functions are performed, for example,
when the MultiView Zoom button is pushed.
Bandwidth readout (B
W
)
Nominal system bandwidth consists of a combination of factors including, but not limited to, probe
bandwidth, probe tip bandwidth, and bandwidth selections made in the Vertical Setup Control
Wi
ndow.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 955
