G10 Installation Guide 7.13.2 13
1
G10 New Installation and Upgrade Workflows
Rev. 005-140228
If upgrading to the SRM200 RTM, 10G monitored network Ethernet connections will
be moved from the rear of the chassis to the front of the chassis on the IIC200. Verify
that the current Ethernet cabling can reach the front of the chassis; you may need to
pull extra cabling.
Step Action
1. Shut down the probe (halt the system). Wait until the IIC100 H/S LED is solid
blue (Figure 1.3).

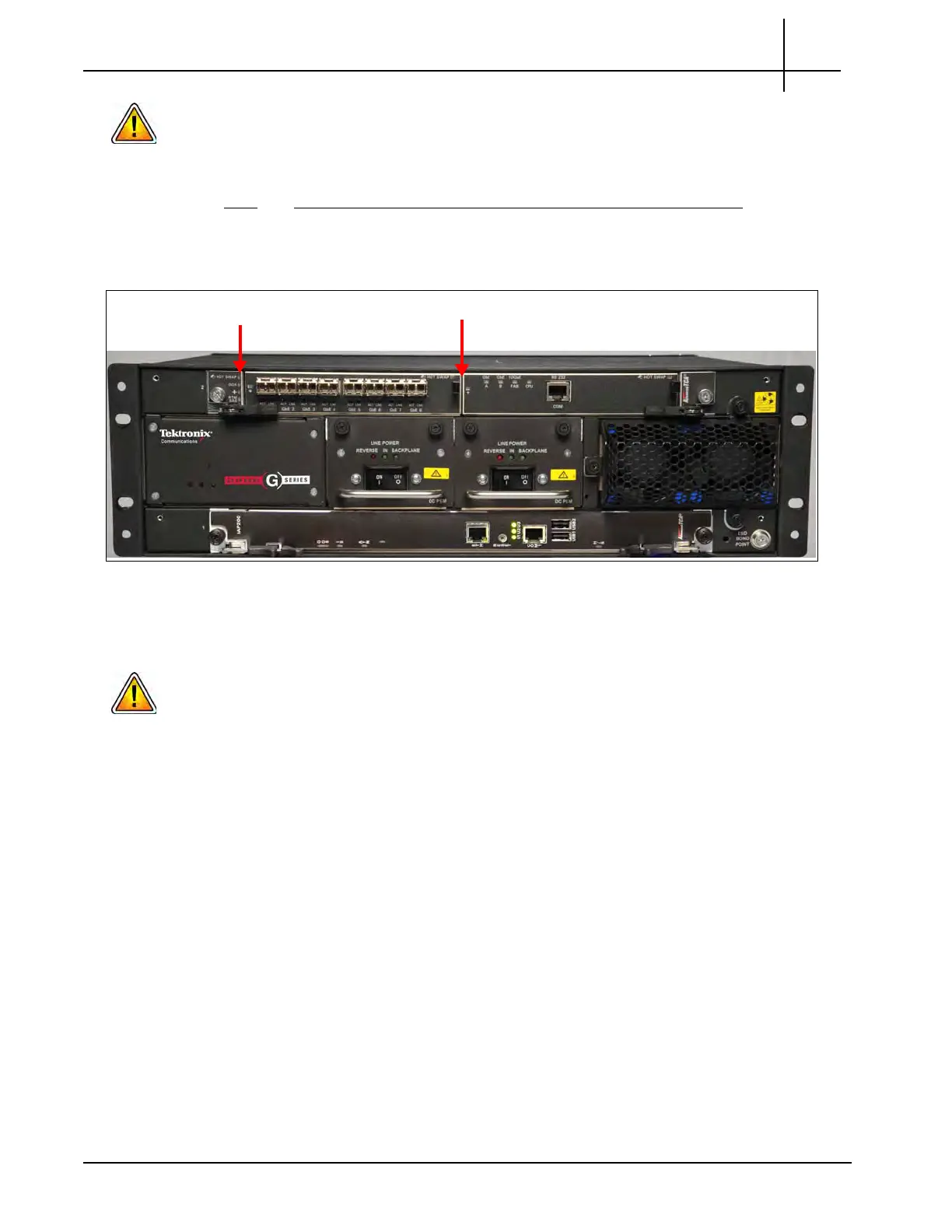

Figure 1.3 - G10 IIC100 (Before Upgrade)
2. Remove all 1G Ethernet cabling from the IIC100 (front) and remove the blade
from the chassis.
If REMOVING the SRM100 RTM or TRM100 RTM (default configuration) and the G10 is
supporting two controller disk arrays, label the SAS cables to the appropriate
controllers before removing cabling (for example, “Controller 0 to SRM200 RTM SAS
Port 2” and “Controller
1 to SRM200 RTM SAS Port 1”).
You will be reconnecting the SAS cables to the SRM200 RTM on the rear of the probe
after its install.
If the TRM100 RTM will be paired with the IIC200 (eHRPD monitoring),
you will not be removing cabling so this step is not necessary.
3. Perform one of the following for the RTM (rear):
Default configuration:
- Remove the SAS and Ethernet cabling (Ethernet only applies if two-array
configur
ation) from the SRM100 RTM or TRM100 RTM and remove the
RTM.
- Install the SRM200 RTM and tighten thumbscrews.
- Reconnect cabling to the SRM200 RTM as shown in Figure 1.4. Note
that the SRM200 RTM SAS 1 and SAS2 connections differ from the
TRM100 RTM and SRM100 RTM SAS 1 and SAS 2 connections.
eHRPD configurations:
- Remove onl
y the 10G monitored network cabling. This cabling will be
reconnected to the IIC200 on the front of the probe.
