G10 Installation Guide 7.13.2 14
1
G10 New Installation and Upgrade Workflows
Rev. 005-140228
- DO NOT remove the 1G cabling (if two-array configuration) or the
TRM100 RTM.

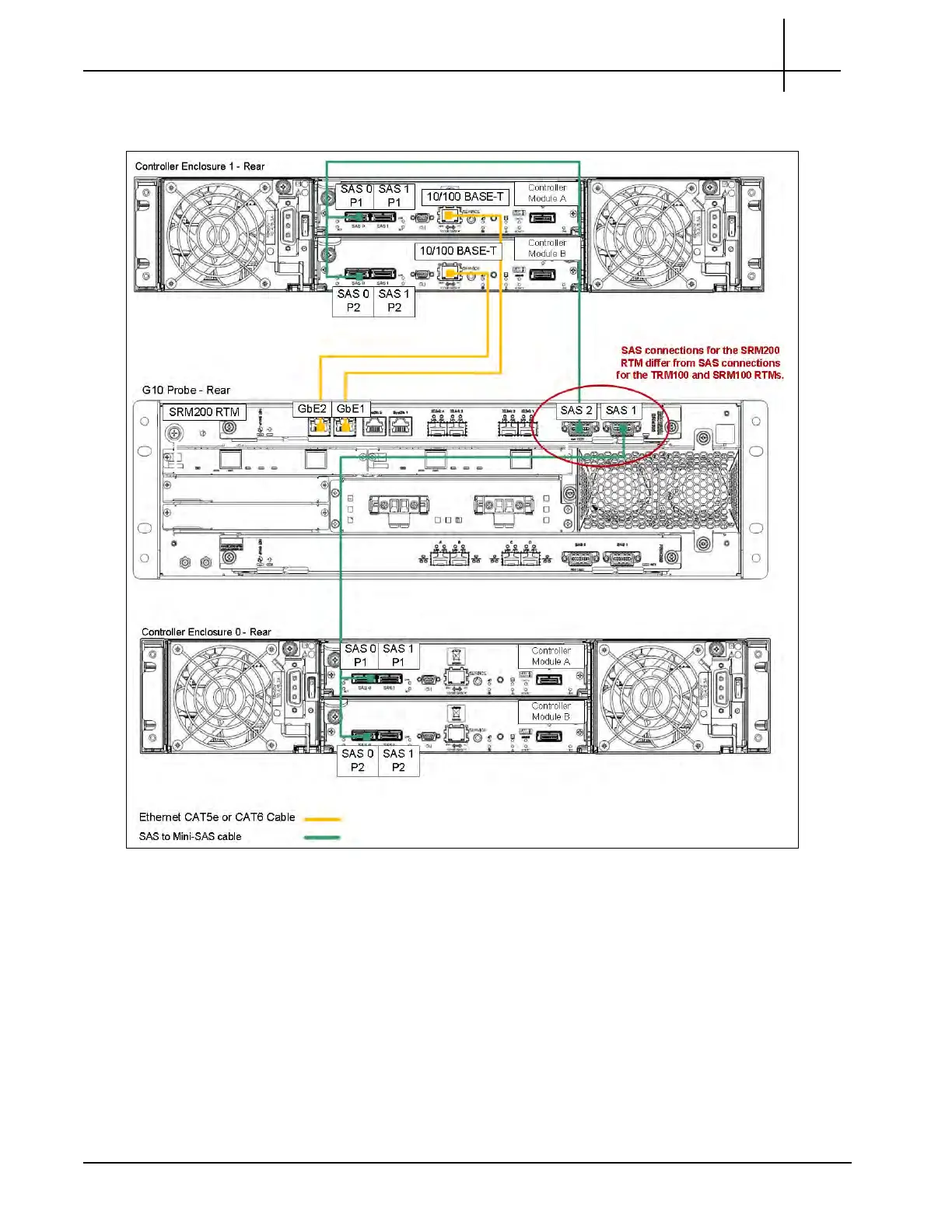

Figure 1.4 - Reconnect Cabling to SRM200 RTM
4. Insert the IIC200 and tighten thumbscrews.
5. Reconnect the 10G fiber (that you removed from the TRM100 RTM or SRM100
R
T
M). Refer to Monitored Link Cabling (IIC200) for details.
6. Continue with Configure Probe Setup. Refer to Chapter 3 if necessary for
troubleshooting Ethernet and
SAS Cabling issues.
