6. Push the ejector handles inward until they are flush with the front of the chassis
and the blade is inserted fully (Figure C.31).

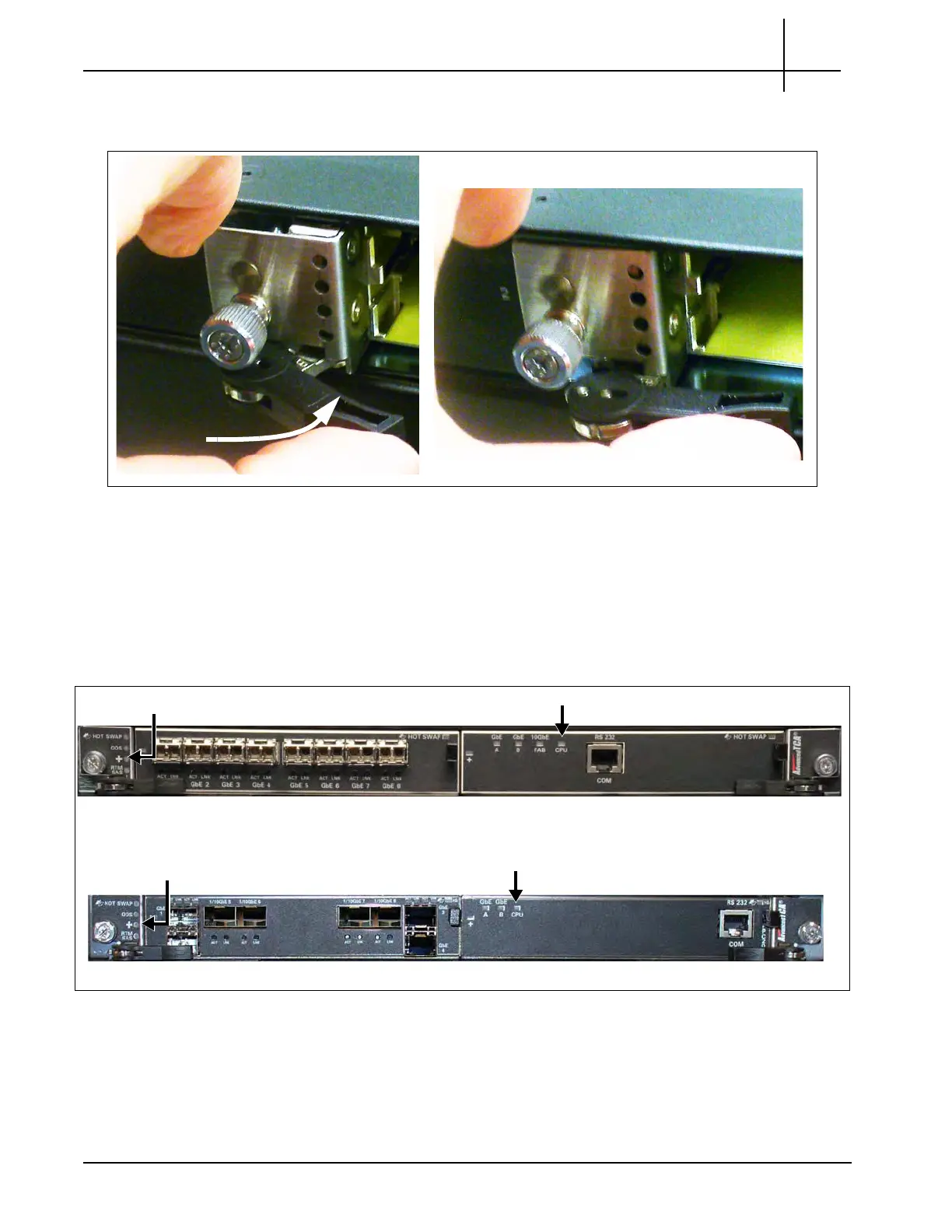

Figure C.31 - G10 IIC Ejector Handle - Seating the Board
7. Verify the following LEDs on the front of the IIC (Figure C.32):
 The CPU LED is AMBER on the FPC100 AMC and GREEN on the
FPC200 AMC, indicating that the processor is functio
ning normally.
 The + LED on IIC100 or IIC200 is GREEN, indicating that there are no
errors in overall health.
Figure C.32 - G10 IIC100 and IIC200 LED Verification
FPC100 AMC CPU LED (Amber)
IIC100 + LED (Green)
IIC200
IIC100
IIC200 + LED (Green)
FPC200 AMC CPU LED (Green)
