G10 Installation Guide 7.13.2 166
D
Rev. 005-140228
Although the power cabling shipped with the storage enclosure provides a safety earth ground
connection as part of the cabling to Power Distribution Units (PDUs), Tektronix recommends
that you connect the central office ground system or interior equipment grounding system to
the supplemental bonding and grounding connections on the back of the storage enclosure
(Figure D.1) using a grounding bar. Figure D.1 shows grounding cabling from the storage
enclosure to the grounding bar; refer to Fuse Panel Power Cabling (DC Units Only) for
complete power cabling information and diagrams.

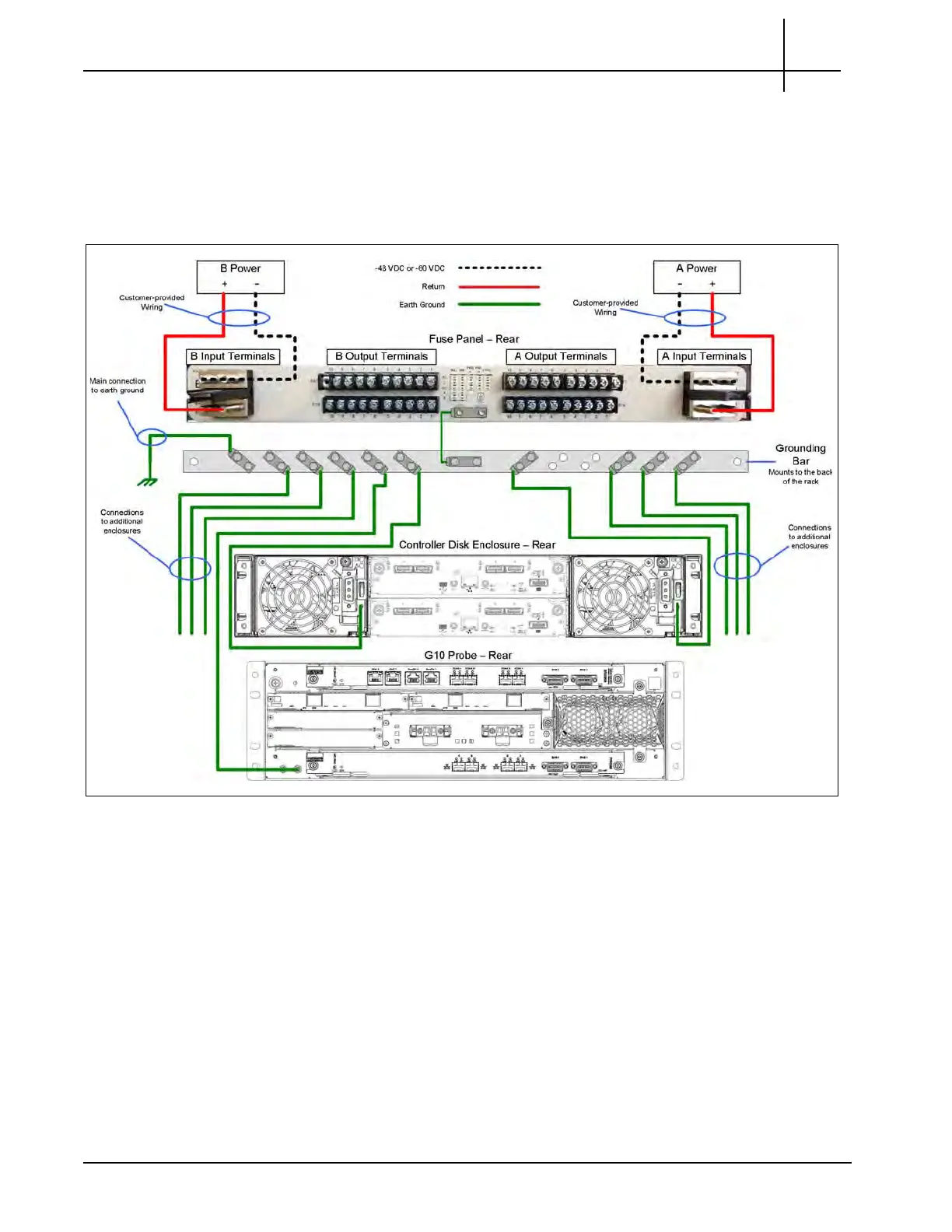

Figure D.1 - NEBS Grounding Solution
