The supplemental grounding cable connects to the enclosure grounding post under the power
switch. This grounding point is also referred to as the network equipment building system
(NEBS) bonding and grounding stud. Figure D.2 shows the location of the grounding post on
the rear of the storage enclosure.

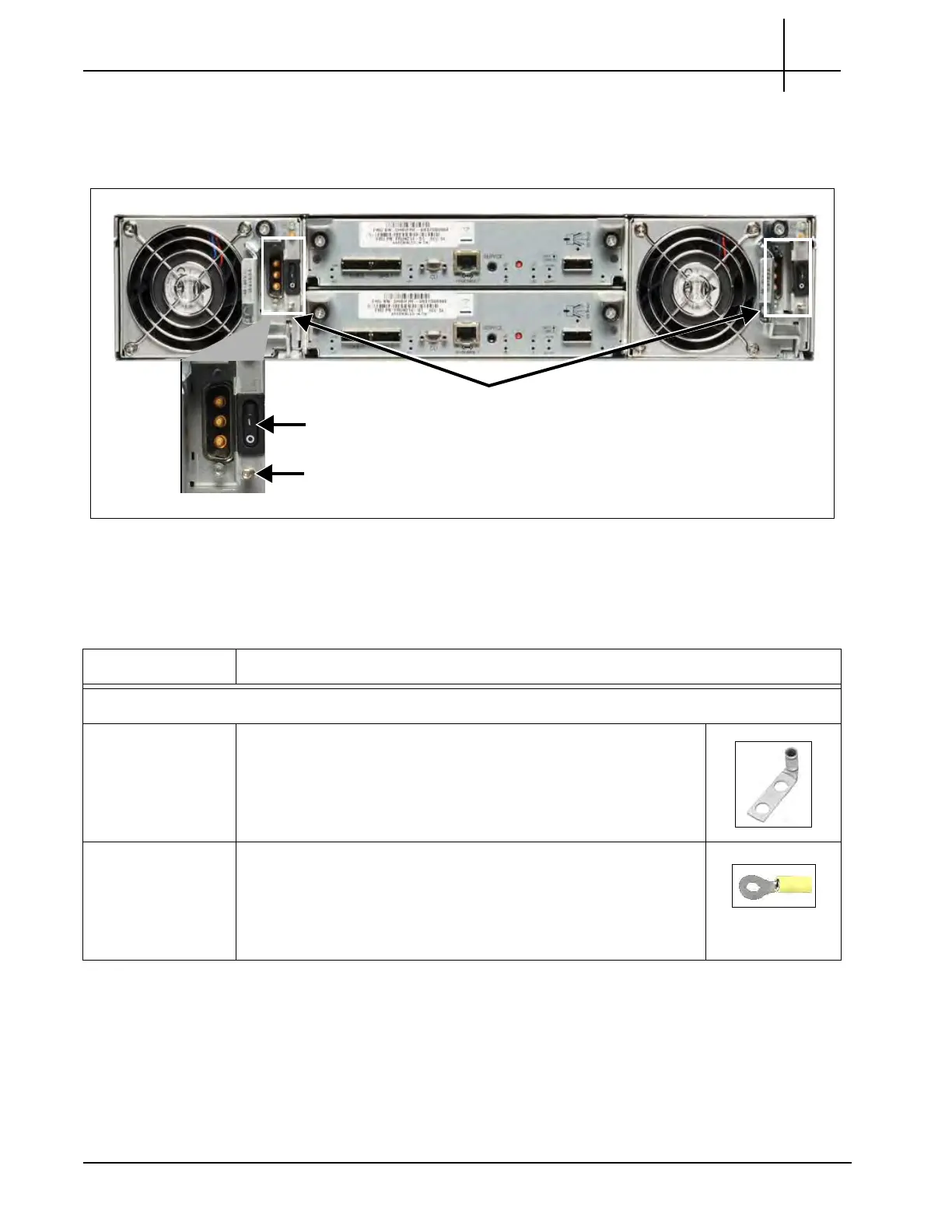

Figure D.2 - Storage Enclosure Rear View
To ensure a proper supplemental ground connection to the sto
r
age enclosure, use the parts
listed in Table D.1.
DC Power
Connectors
Grounding Stud
ON/OFF Switch
Table D.1 - Required Parts
Item Description
Tektronix-Provided Parts
Dual Hole Lugs For connection to grounding bar (per storage enclosure)
90° dual-hole lugs for #10 studs on 5/8” centers
(Burndy YA8CL2TC10-90 or equivalent)
4 hex-head nuts and star washers for anti-rotation
Ring Lugs For Connection to Storage Enclosure
2 Tyco Electronics Ring Lugs PN 320634
(LUG, RING, PIDG type, 12-10 AWG, #6 stud)
2 hex-head nuts and star washers for anti-rotation
