G10 Installation Guide 20
Version 7.13.2
Install Hardware and Power Cabling
005-140228
2

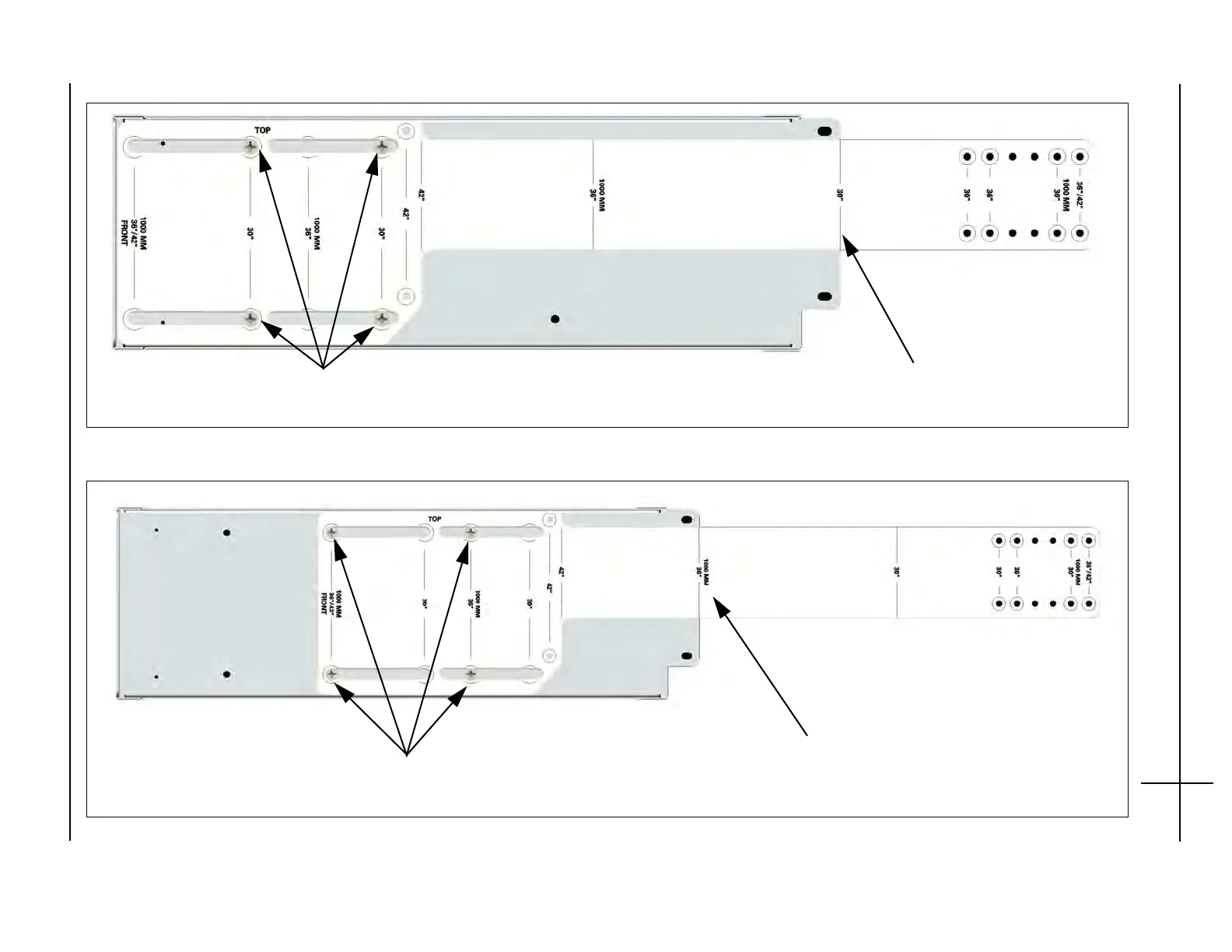

Figure 2.1 - G10 Chassis Install, Four-Post Rack, Front Mount (30-inch Rack)
Figure 2.2 - G10 Chassis Install, Four-Post Rack, Front Mount (36-inch and 1000 mm Racks)
Align 30” line on bracket with rear of
chassis
Attach bracket to side of chassis with four
Phillips flat-head screws at 30” lines
G10 Chassis (Side View)
Align 1000mm/36” line on
bracket with rear of chassis
Attach bracket to side of chassis with four
phillip flat-head screws at 1000mm/36” line
G10 Chassis (Side View)
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
