G10 Installation Guide 21
Version 7.13.2
Install Hardware and Power Cabling
005-140228
2

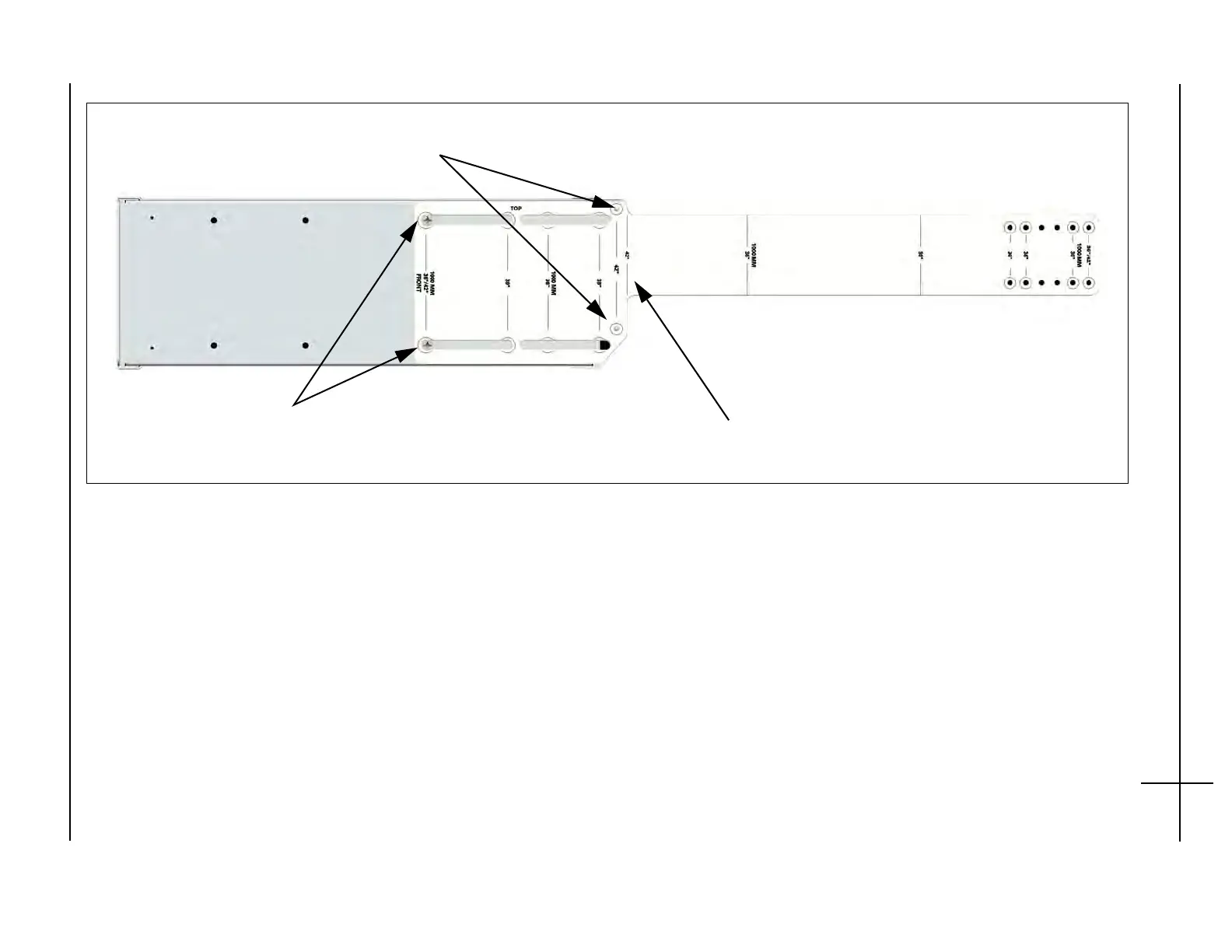

Figure 2.3 - G10 Chassis Install, Four-Post Rack, Front Mount (42-inch Rack)
Align 42” line on bracket with
rear of chassis
Attach bracket to side of chassis with
two Phillips flat-head screws at 42” line
Attach two Phillips flat-head screws at the 42” line on the opposite
side of the bracket (screw head is on the opposite side of the bracket)
G10 Chassis (Side View)
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
