G10 Installation Guide 7.13.2 25
2
Install Hardware and Power Cabling
Rev. 005-140228
3. Two People: Position the G10 probe in the rack and secure the front brackets to
the front of the rack post with two rackmount screws (Figure 2.7).

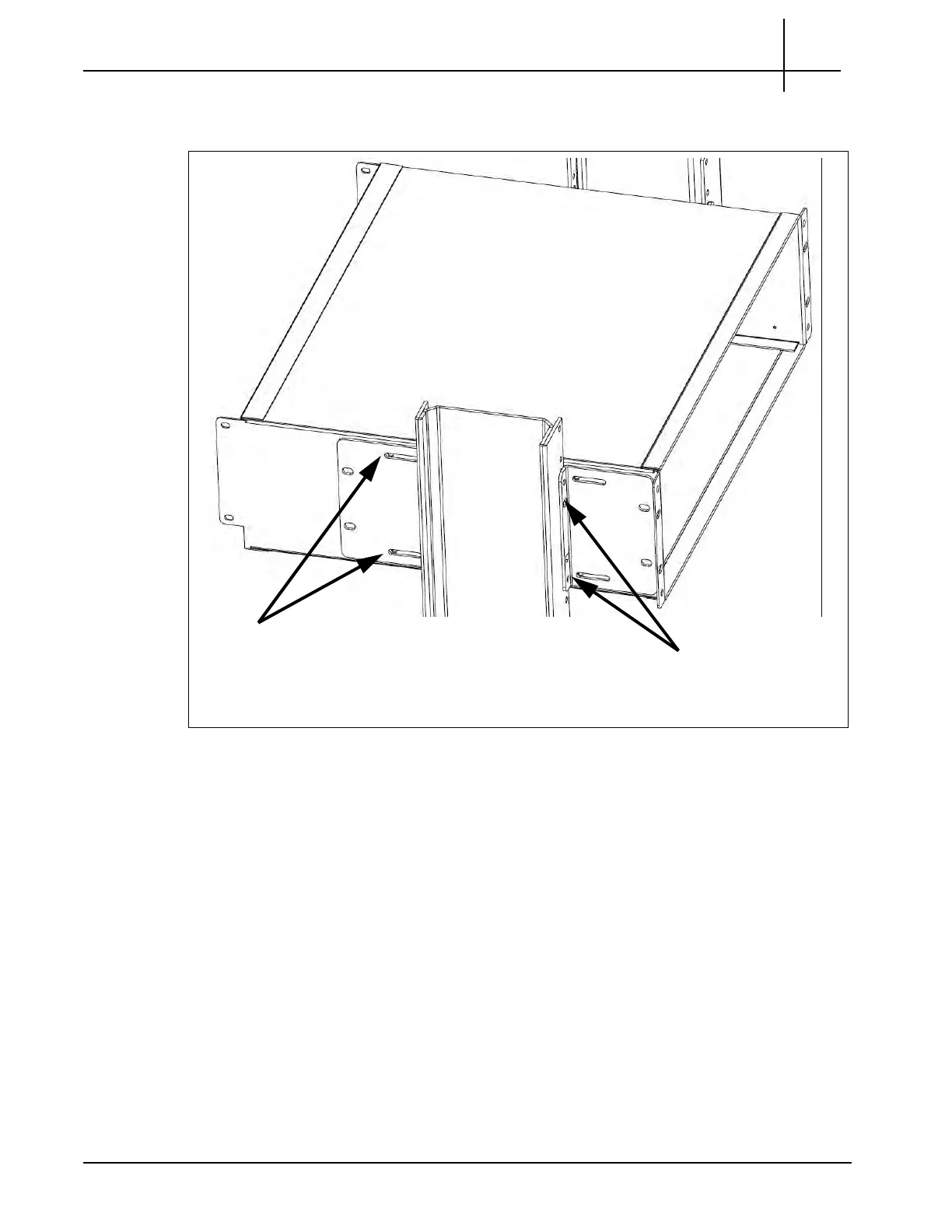

Figure 2.7 - Securing Front and Rear Brackets to Rack
4. Secure the rear brackets to the sides of the G10 c
h
assis using two Phillips flat
head screws (Figure 2.7).
5. Secure the rear bracket to the back of
th
e rack with two rackmount screws.
6. Continue with Install Storage Enclosures.
Step 3
Secure front bracket to
rack with two rackmount
screws
Step 4
Secure rear brackets to
chassis with two
Phillips flat head
screws
Rear
Bracket
Front
